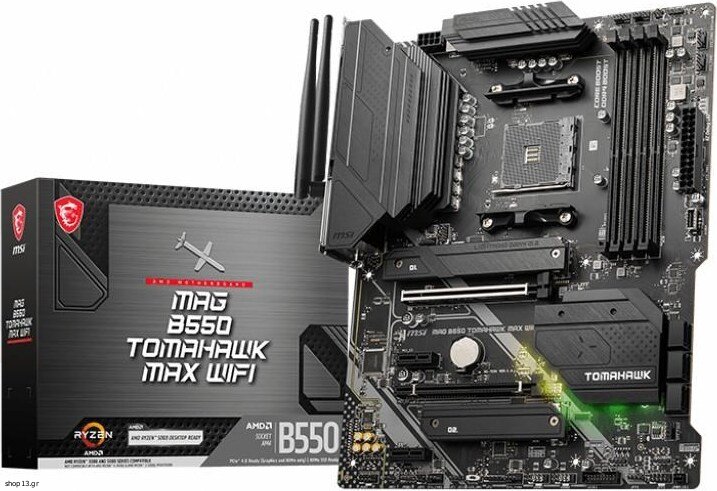

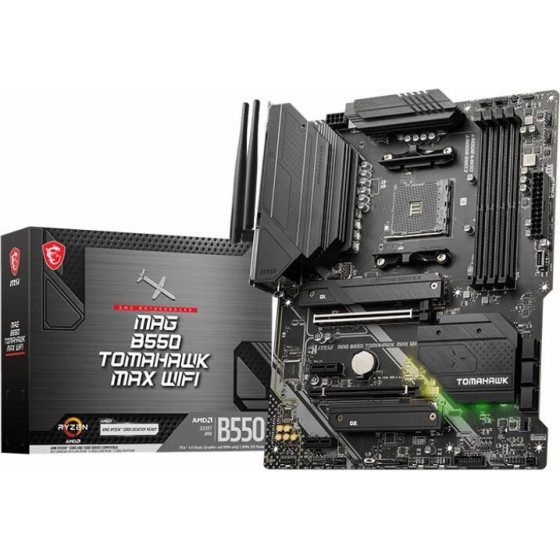

MSI Mag B550 Tomahawk Max Wifi Amd B550 Socket AM4 Atx - (7C94-043R)
[Κωδικός : 805376]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Processor
Maximum number of SMP processors: 1
Compatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen(TM) 9, 3rd Generation AMD Ryzen(TM) 3, 3rd Generation AMD Ryzen(TM) 7
Processor socket: Socket AM4
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Graphics
Parallel processing technology support: 2-Way CrossFireX
Maximum resolution: 4096 x 2160 pixels
Maximum graphics card memory: 16000 MB
Features
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64
Number of mounting holes: 9
Motherboard chipset: AMD B550
Motherboard chipset family: AMD
Audio chip: Realtek ALC1200
Audio output channels: 7.1 channels
Memory
Supported memory clock speeds: 2667, 3733, 4400 MHz, 3066, 2133, 3000, 5100 MHz, 3466, 3200 MHz, 4266, 3866, 4600, 4133, 4000, 2400, 2800, 2933, 3600 MHz, 4733, 4533, 1866
Number of memory slots: 4
Unbuffered memory: Yes
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Weight & dimensions
Depth: 244 mm
Width: 305 mm
Network
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet, 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8111H, Realtek RTL8125B
Ethernet LAN: Yes
Internal I/O
USB 2.0 connectors: 2
CPU fan connector: Yes
Number of SATA III connectors: 6
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
TPM connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 6
BIOS
Clear CMOS jumper: Yes
Packaging content
Drivers included: Yes
Cables included: SATA
Storage controllers
Supported storage drive interfaces: SATA III
Supported storage drive types: HDD & SSD
RAID levels: 1, 0, 10
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
Digital audio optical out: 1
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
S/PDIF out port: Yes
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Warranty: warranty 36 months
Maximum number of SMP processors: 1
Compatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen(TM) 9, 3rd Generation AMD Ryzen(TM) 3, 3rd Generation AMD Ryzen(TM) 7
Processor socket: Socket AM4
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Graphics
Parallel processing technology support: 2-Way CrossFireX
Maximum resolution: 4096 x 2160 pixels
Maximum graphics card memory: 16000 MB
Features
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64
Number of mounting holes: 9
Motherboard chipset: AMD B550
Motherboard chipset family: AMD
Audio chip: Realtek ALC1200
Audio output channels: 7.1 channels
Memory
Supported memory clock speeds: 2667, 3733, 4400 MHz, 3066, 2133, 3000, 5100 MHz, 3466, 3200 MHz, 4266, 3866, 4600, 4133, 4000, 2400, 2800, 2933, 3600 MHz, 4733, 4533, 1866
Number of memory slots: 4
Unbuffered memory: Yes
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Weight & dimensions
Depth: 244 mm
Width: 305 mm
Network
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet, 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8111H, Realtek RTL8125B
Ethernet LAN: Yes
Internal I/O
USB 2.0 connectors: 2
CPU fan connector: Yes
Number of SATA III connectors: 6
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
TPM connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 6
BIOS
Clear CMOS jumper: Yes
Packaging content
Drivers included: Yes
Cables included: SATA
Storage controllers
Supported storage drive interfaces: SATA III
Supported storage drive types: HDD & SSD
RAID levels: 1, 0, 10
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
Digital audio optical out: 1
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
S/PDIF out port: Yes
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Warranty: warranty 36 months
Χαρακτηριστικά
Μοντέλο
MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX - (7C94-043R)
