Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Graphics
On-board graphics card: No
Features
Windows operating systems supported: Windows 11 x64
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Memory
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8200 MHz
ECC ?ompatibility: Non-ECC
Supported memory clock speeds: 6000, 8200, 6400 MHz
Maximum internal memory: 256 GB
Weight & dimensions
Depth: 243.8 mm
Width: 243.8 mm
Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth: Yes
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
Front panel connector: Yes
Total number of SATA connectors: 4
RGB LED pin header: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 3
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 4
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
Storage controllers
RAID levels: 1, 0, 10
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2

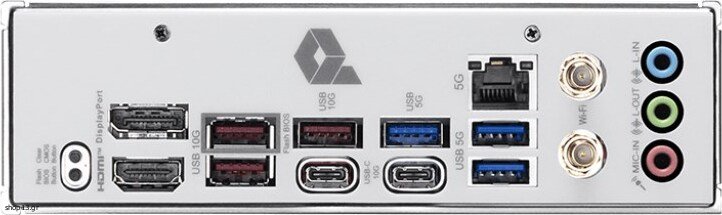

Rear panel I/O ports
Clear CMOS button: Yes
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 1
Flashback BIOS button: Yes
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
Expansion slots
Number of M.2 (M) slots: 2
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 largest key size: 2280
PCI Express x16 slots: 4
Warranty: warranty 36 months
