Περιγραφή

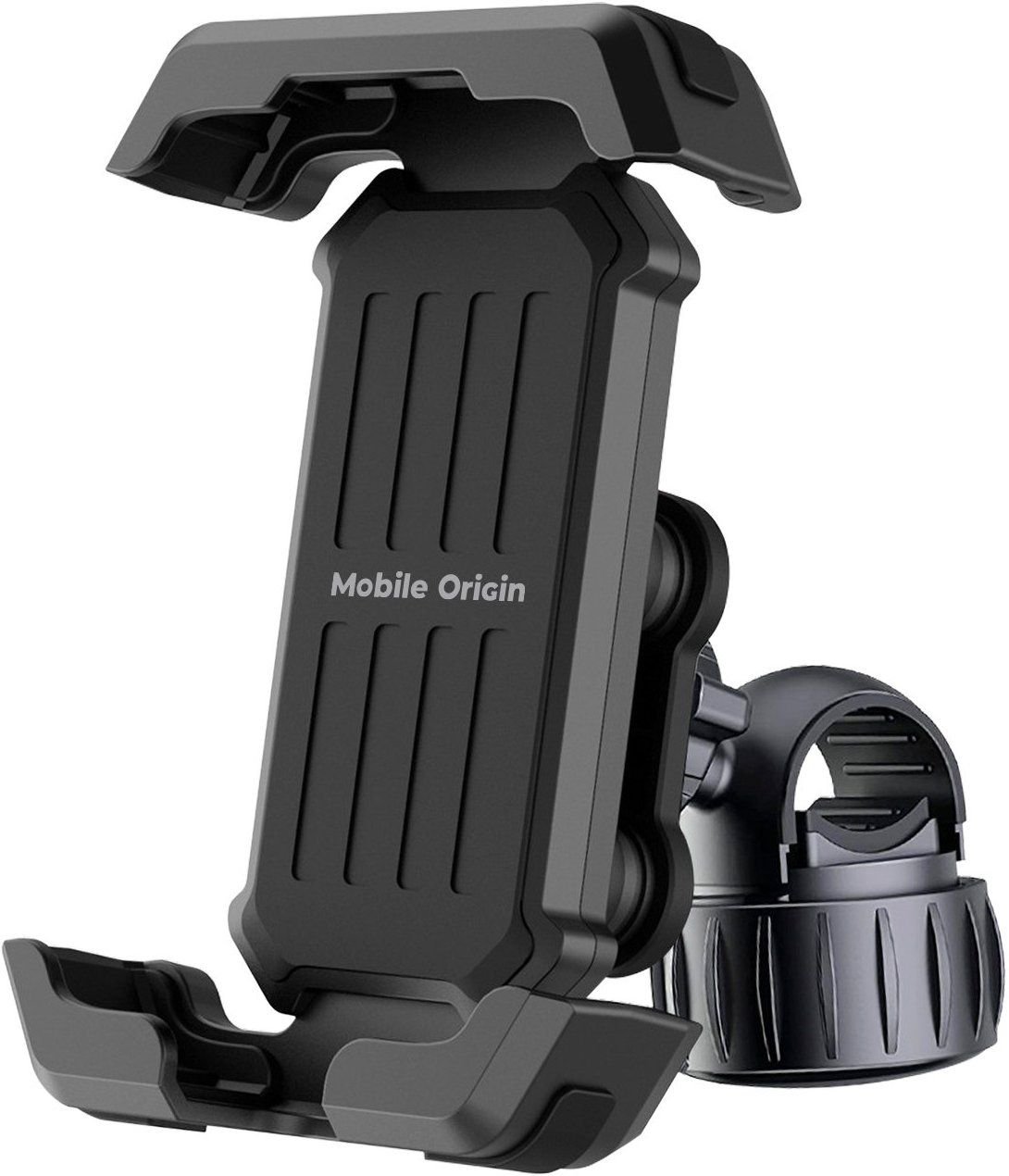

Mobile Origin Bike Phone Mount B1 with Shock and Vibration AbsorptionA handlebar phone mount that places four independent sets of spring dampeners between the road and your phone. They absorb impacts across two axes simultaneously, preventing every bump from transferring to your phone and its camera. Fits handlebars with a diameter of 17.5 to 30 mm and tightens by hand without any tools.
Five Key Features4 sets of spring dampeners: absorb both vertical and horizontal impacts, protecting your camera's optical image stabilization from road vibrations.
One-click lock: one press of the red button secures the phone, a second press releases it--both easily done with one hand.
10 mm silicone padding: micro-dampeners in all four corners hold the phone securely in place and prevent scratching the back of the device.
Tool-free installation: screw-on clamp fits 17.5 to 30 mm handlebars, from electric scooters to motorcycles.
Tested mechanism: 10,000 lock cycles and 3,000 phone insertions according to supplier internal testing.

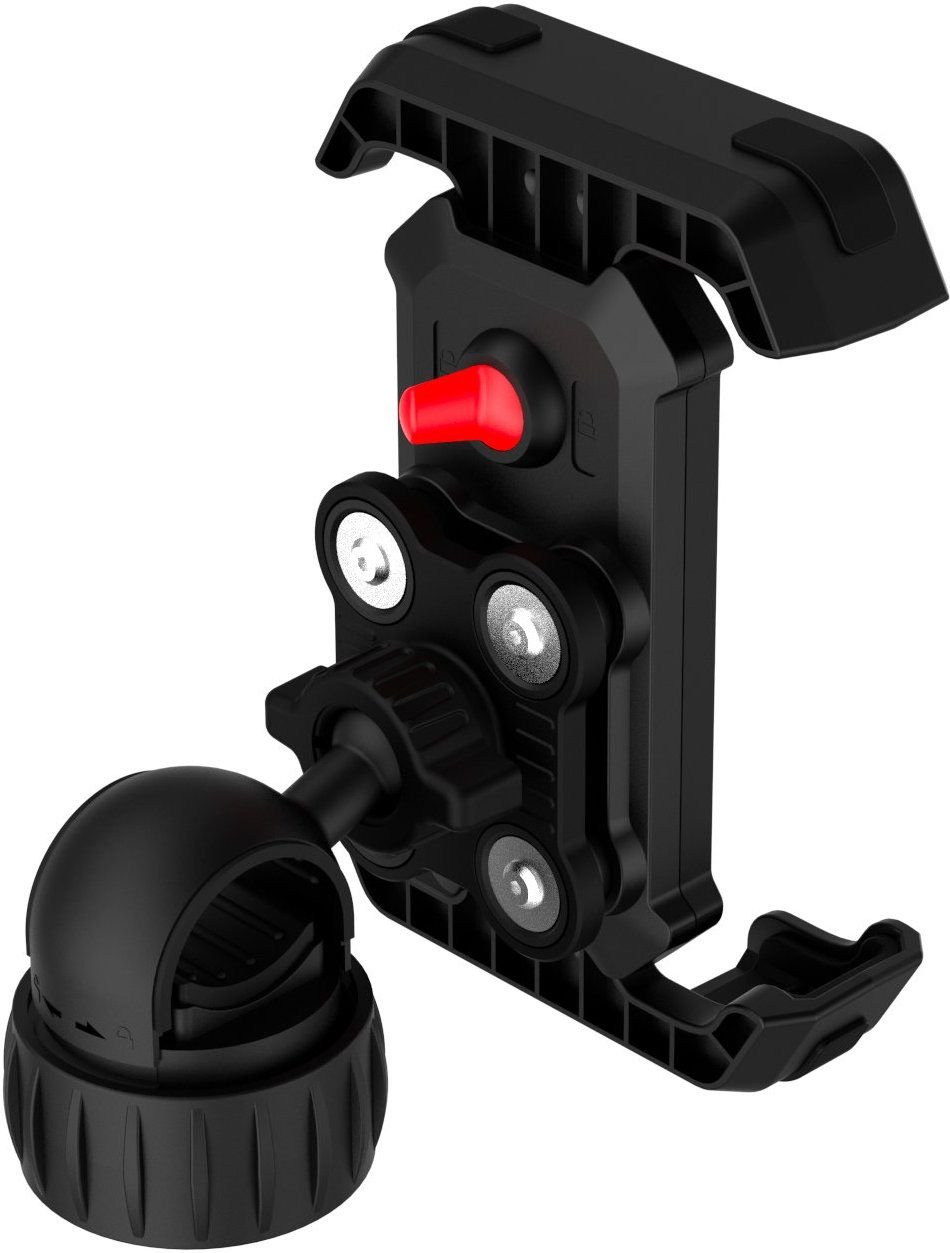

Four Sets of Dampeners Instead of OneInside the base, four independent sets of springs are arranged in a square around the central axis. This configuration dampens vibrations across two axes at once: vertical shocks from potholes and cobblestones, as well as horizontal oscillations from the motor or e-bike wheels. While single-damper anti-vibration modules primarily work along one axis, this four-point layout responds to chaotic impacts that come from multiple directions during a ride. The difference is most noticeable on your camera: smartphone manufacturers warn that prolonged severe vibrations damage optical image stabilization (OIS) mechanisms--and that is precisely what is most exposed on handlebars.

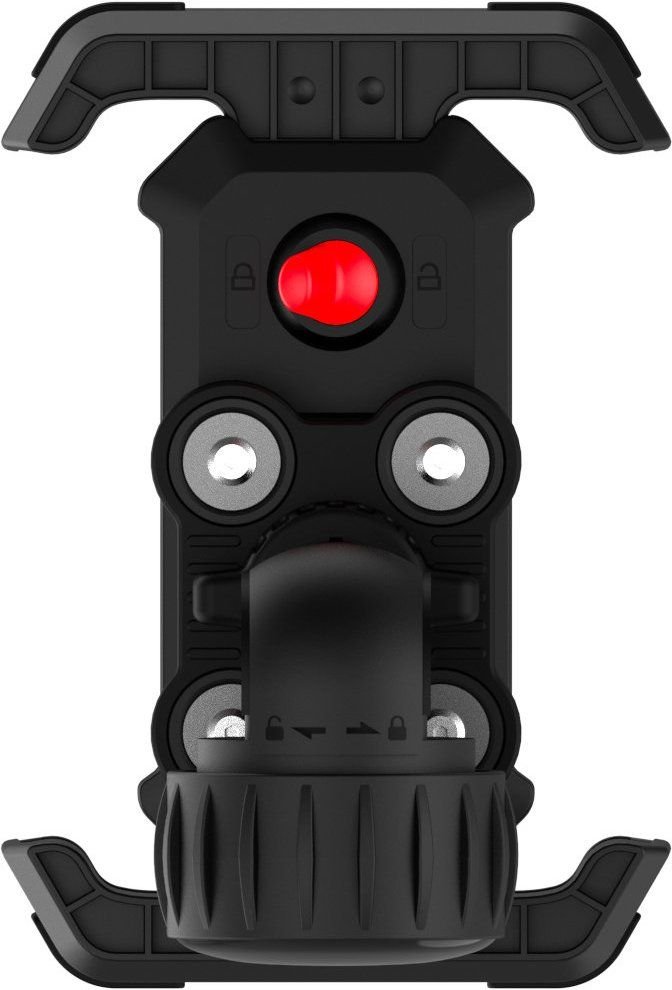

One-Press LockThe phone is inserted from the top and secured by pressing the red button. Releasing it works the same way--a single press opens the clamp. Both clamp arms are mechanically linked, meaning they open and close symmetrically in a single motion, allowing the entire operation to be handled with one hand. You'll notice the difference especially during daily commutes, where you mount and remove your phone multiple times a day, often while wearing gloves or in a rush.
10 mm Silicone in All Four CornersThe gripping surfaces inside the clamp are lined with a 10 mm thick vulcanized silicone pad. The silicone serves two purposes: in each of the four corners, it acts as a micro-dampener for minor shocks that bypass the base springs, while also preventing the phone from shifting during sharp turns or hard braking. As a result, the phone does not rest on hard plastic, but on a material that yields slightly under pressure and bounces back. The soft surface will not scratch the back of your phone or its case, making the mount suitable even for caseless phones.
Tool-Free Mounting on 17.5 to 30 mm HandlebarsThe clamp slips onto the handlebar and tightens by hand--no wrenches or screwdrivers needed. The 17.5 to 30 mm range covers everything from the slim bars of e-scooters and kids' bikes to thicker MTB and motorcycle handlebars, so a single mount can serve your entire fleet at home. The ball joint beneath the clamp lets you rotate the phone to the desired viewing angle and lock it into place. The mount is also suitable for installation on a rearview mirror stem (please verify the specific diameter before ordering).
Tested Locking MechanismThe lock and clamp are among the most stressed parts of the mount, as they are used on every ride. Supplier internal testing on model YYS-683 included a lock test of 10,000 open-and-close cycles and an insertion test of 3,000 phone insertions and removals--both retaining smooth mechanism operation throughout. Additional testing included thermal tests and a bump test simulating vibrations during high-speed riding.
One Mount for Bikes, E-Bikes, Scooters, and MotorcyclesThe clamp grips the phone around its perimeter, eliminating the need for a dedicated phone case or magnetic plate stuck to the back of your device. The 4.7 to 6.8-inch range accommodates standard to large models, including those with prominent camera modules. The ball joint allows you to offset the phone from the handlebar centerline and tilt it toward the rider, ensuring it fits neatly beside displays and control units on e-bikes. This makes it easy to switch the same mount between different rides without having to buy a second one.
Dimensions and Handlebar ClearanceWeighing just 164 g, the mount has virtually no impact on bike handling, even with a phone clamped in. When collapsed, it measures 96.3 x 141.6 x 32.5 mm; when fully opened to fit maximum phone sizes, it measures 96.3 x 191 x 32.5 mm. On bikes with handlebar bags or top-mounted headlights, keep this height in mind. It takes up a single mounting spot on your cockpit, leaving ample room beside it for a bike computer or e-bike display.

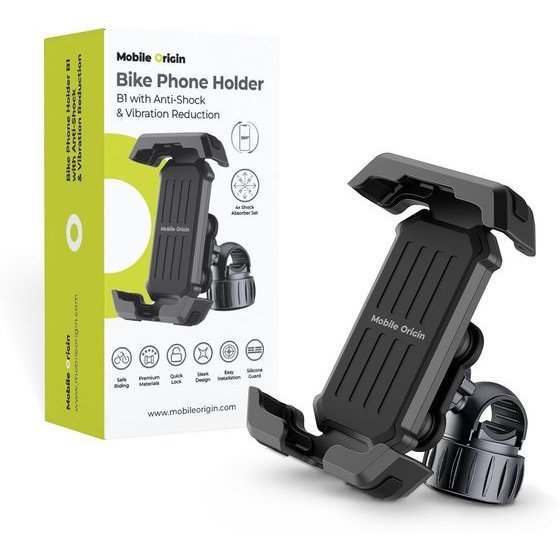

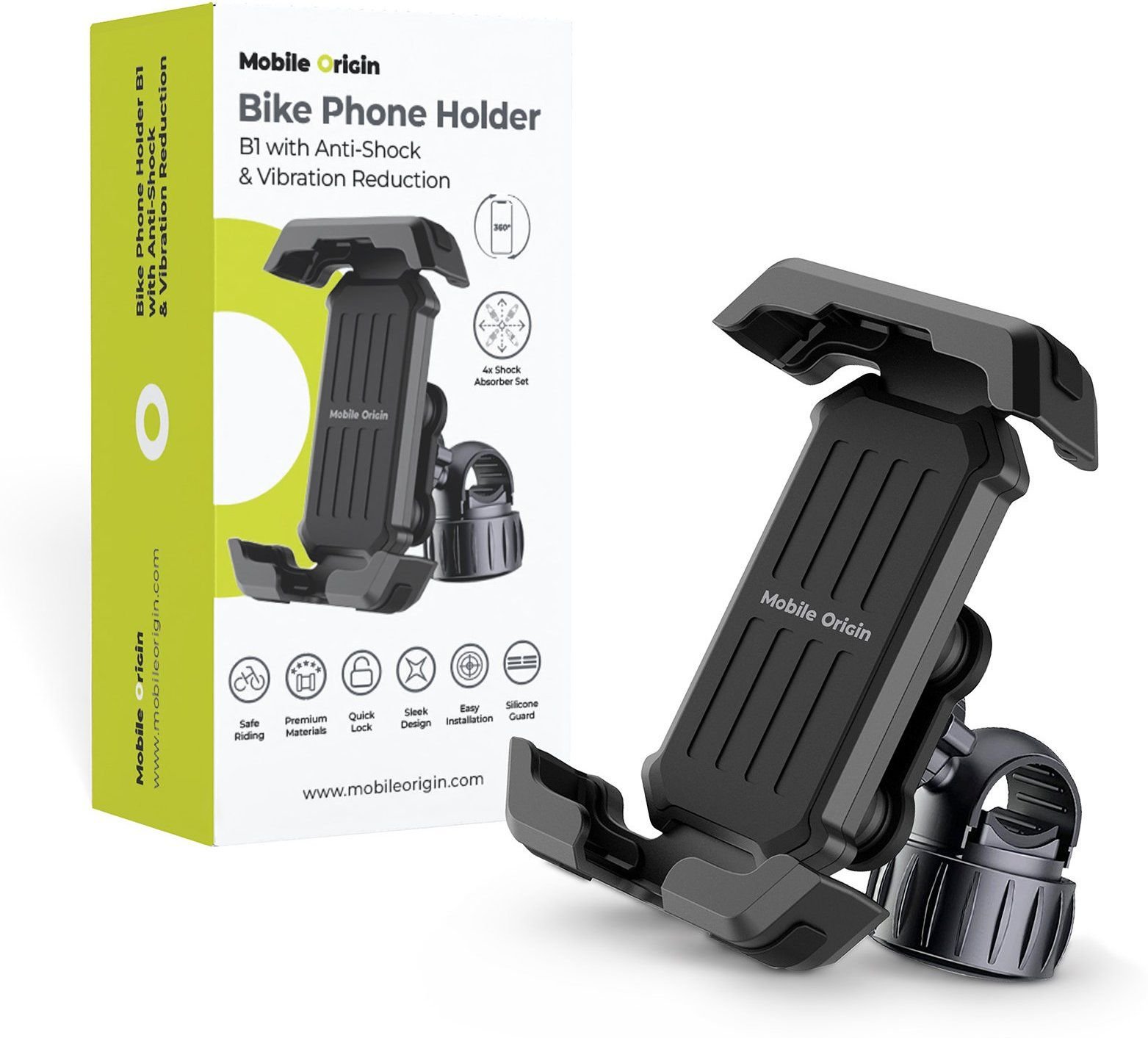

Technical SpecificationsParameterValueModelMO-BPH-AS-B1EAN8594215998785Compatible Phones4.7 to 6.8 inchesHandlebar Diameter17.5 to 30 mmCompatible Vehiclesbicycle, e-bike, scooter, electric scooter, motorcycleAnti-Vibration System4 sets of spring dampeners, quadruple arrangementSilicone Pad10 mm, vulcanized siliconeLockone-click, red button, synchronized clampsMountingtool-free, screw clamp, ball jointMaterialABS + PC, siliconeColorblackDimensions (W x H x D)96.3 x 141.6 x 32.5 mmDimensions with Clamps Open96.3 x 191 x 32.5 mmWeight164 gMaterial TestingREACH 253 SVHC, PAHs, phthalates, cadmium, SCCP: passedWarranty24 monthsPackage Contents1x Mobile Origin Bike Phone Mount B1 with Shock and Vibration Absorption.
1x User manual.
