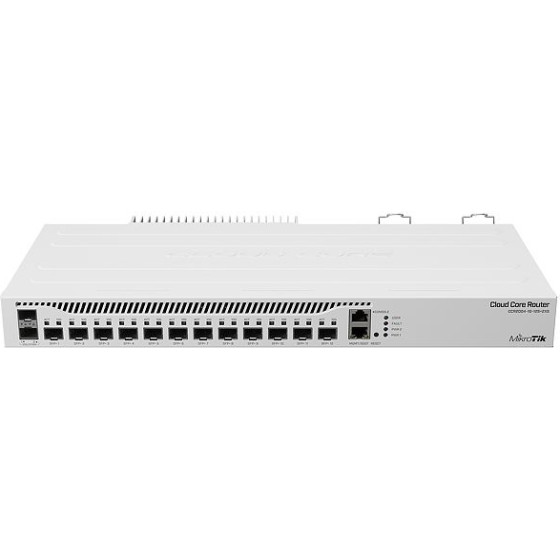

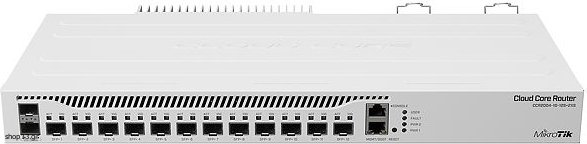

Mirotik - (CCR2004-1G-12S+2XS)

Specifications


Details
Product code
CCR2004-1G-12S+2XS


Architecture
ARM 64bit


CPU
AL32400


CPU core count
4


CPU nominal frequency
1700 MHz


Dimensions
443 x 224 x 44 mm


RouterOS license
6


Operating System
RouterOS v7


Size of RAM
4 GB


Storage size
128 MB


Storage type
NAND


MTBF
Approximately 200’000 hours at 25C


Tested ambient temperature
-20°C to 60°C


IPsec hardware acceleration
Yes


Powering
Number of AC inputs
2


AC input range
100-240


Max power consumption
49 W


Max power consumption without attachments
32 W


Cooling type
2


Ethernet
10/100/1000 Ethernet ports
1


Fiber
SFP+ ports
12


Number of 25G SFP28 ports
2


Peripherals
Serial console port
RJ45


Other
CPU temperature monitor
Yes


PCB temperature monitor
Yes


Voltage Monitor
Yes


Certification & Approvals
Certification
CE, EAC, ROHS
