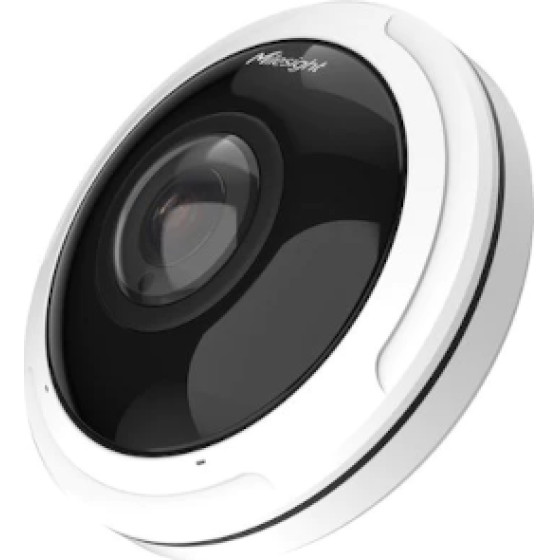

Milesight - (MS-C8274-PA)
[Κωδικός : 464595]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή

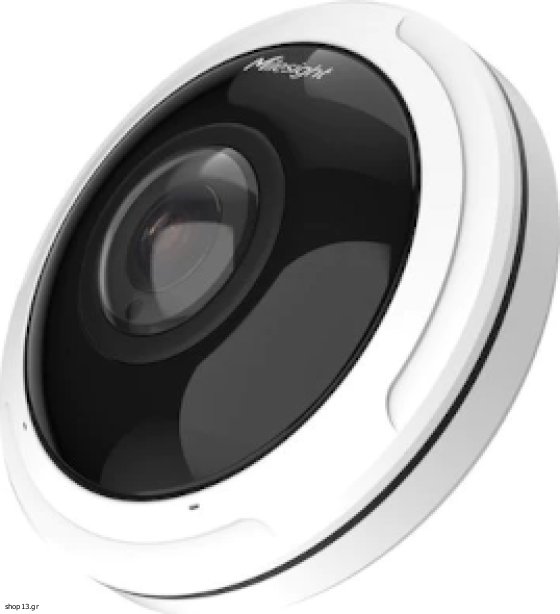

AI 360° Panoramic Fisheye Network Camera
Support PoE; Builtin Microphone; SD card, up to 256G
Support H.265+/H.265/H.264+/H.264
AI Based Video Content Analysis, People Counting, Heat Map
Optional
Multi Port (Builtin Mic, Alarm I/O, Audio I/O, DC 12V)
Specifications
Camera
Name
8MP NDAA AI 360° Fisheye Network Camera
Image Sensor
1/1.8? Progressive Scan CMOS
Min. Illumination
Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on
WDR
120dB Super WDR
Lens
[email protected]
Mount
M12
Field of View
Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
IR Distance
Up to 15m
S/N
>55dB
Display
Mount Mode
Ceiling Mount / Wall Mount / Flat Mount
Decoding Mode
On-board Dewarping/Client-side Dewarping
Display Mode
11 display modes in total.
Client-side Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P1R, 1P4R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
On-board Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P3R, 1O1P3R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Note:
1. Only Fisheye in Multi-Channel Mode supports 1O1P3R.
2. The above letters O, P and R are explained as follows: O---Fisheye View; P---180° Fisheye View; 2P---2*180° Panoramic View; R---PTZ
Video
Max. Input Resolution
3840x2160
Primary Stream
Fisheye View:
60Hz: 30fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280)
50Hz: 25fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280)
Secondary Stream
Fisheye View:
60Hz: 30fps@(1280x960, 1024x1024, 736x736, 576x576)
50Hz: 25fps@(1280x960, 1024x1024, 736x736, 576x576)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate
16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking
Up to 24 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Web Access
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/44.1/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
Support
Interface
Ethernet
1*RJ45 10M/100M/1000M Ethernet Port
Audio I/O
Built-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O
1/1 (Multi-interface Version)
Network
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&Report
Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
Auto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, External Input(Only for Multi-interface Version), etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, External Output(Only for Multi-interface Version), SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
General Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)/DC 12V±10%
Power Consumption
6W MAX, 8W MAX(With IR on)
Weather Proof
Up to IP67-rated for Weather-resistant Performance
Housing
Vandal-proof IK10-rated metal housing
Dimensions
Φ140mmX45.4mm
Weight
700g
Warranty
3/5 Years
Support PoE; Builtin Microphone; SD card, up to 256G
Support H.265+/H.265/H.264+/H.264
AI Based Video Content Analysis, People Counting, Heat Map
Optional
Multi Port (Builtin Mic, Alarm I/O, Audio I/O, DC 12V)
Specifications
Camera
Name
8MP NDAA AI 360° Fisheye Network Camera
Image Sensor
1/1.8? Progressive Scan CMOS
Min. Illumination
Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on
WDR
120dB Super WDR
Lens
[email protected]
Mount
M12
Field of View
Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
IR Distance
Up to 15m
S/N
>55dB
Display
Mount Mode
Ceiling Mount / Wall Mount / Flat Mount
Decoding Mode
On-board Dewarping/Client-side Dewarping
Display Mode
11 display modes in total.
Client-side Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P1R, 1P4R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
On-board Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P3R, 1O1P3R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Note:
1. Only Fisheye in Multi-Channel Mode supports 1O1P3R.
2. The above letters O, P and R are explained as follows: O---Fisheye View; P---180° Fisheye View; 2P---2*180° Panoramic View; R---PTZ
Video
Max. Input Resolution
3840x2160
Primary Stream
Fisheye View:
60Hz: 30fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280)
50Hz: 25fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280)
Secondary Stream
Fisheye View:
60Hz: 30fps@(1280x960, 1024x1024, 736x736, 576x576)
50Hz: 25fps@(1280x960, 1024x1024, 736x736, 576x576)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate
16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking
Up to 24 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Web Access
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/44.1/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
Support
Interface
Ethernet
1*RJ45 10M/100M/1000M Ethernet Port
Audio I/O
Built-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O
1/1 (Multi-interface Version)
Network
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&Report
Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
Auto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, External Input(Only for Multi-interface Version), etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, External Output(Only for Multi-interface Version), SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
General Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)/DC 12V±10%
Power Consumption
6W MAX, 8W MAX(With IR on)
Weather Proof
Up to IP67-rated for Weather-resistant Performance
Housing
Vandal-proof IK10-rated metal housing
Dimensions
Φ140mmX45.4mm
Weight
700g
Warranty
3/5 Years
