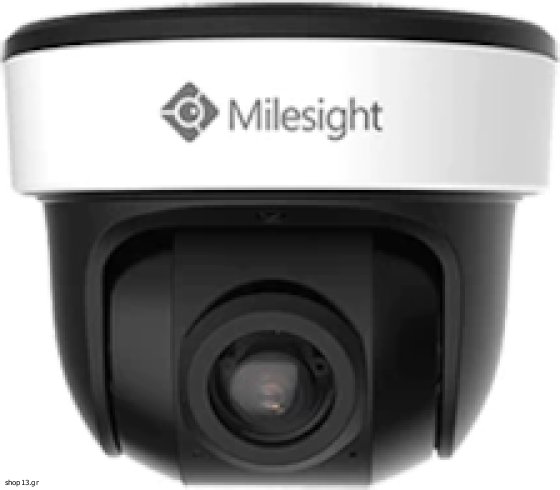

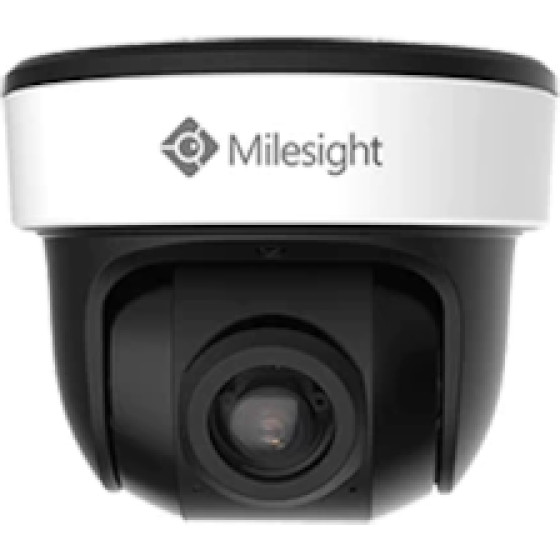

Milesight - (MS-C8176-PA)
[Κωδικός : 464594]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
·180° Panoramic View
· 4K Ultra High Definition
· 120dB Super WDR
· 0.005Lux Starlight
· Panoramic IR Technology
· 180° IR Coverage
· VCA
· Heat Map
· IP67 & IK10
· Built-in Microphone
· Integrated Junction Box
· SIP/VoIP Support
· Support ONVIF Profile S Specifications
Camera
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
Color: 0.005Lux @F1.2, Color: 0.008Lux @F2.0, B/W: 0Lux with IR on
WDR
120dB Super WDR
Lens
1.68mm @F2.0
Mount
M12
Field of View
H180°/V95°
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
IR Distance
180° IR Illumination Up to 15m
S/N
>55dB
Video
Max. Image Resolution
2592x1944(Original)
Primary Stream 60Hz: 30fps@(2592x1944)(Original), 30fps@(2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(2592x1944)(Original), 25fps@(2560x1440, 1920x1080, 1280x720)
Secondary Stream20x192) 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 3
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 8 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Web Access
Support IE/Firefox/Chrome/Safari Browser
Interface
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio Interface
Built-in Microphone
Network
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/44.1/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
N/A
Intelligent
Analytics Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report
Count the number of people entering or exiting
System
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
General
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)/DC 12V±10%
Power Consumption
5W MAX, 8W MAX (With IR on)
Weather Proof
Up to IP67-rated for Weather-resistant Performance
Housing
Vandal-proof IK10-rated metal housing
Dimensions
127mmX107mm
Weight
853g
·180° Panoramic View
· 4K Ultra High Definition
· 120dB Super WDR
· 0.005Lux Starlight
· Panoramic IR Technology
· 180° IR Coverage
· VCA
· Heat Map
· IP67 & IK10
· Built-in Microphone
· Integrated Junction Box
· SIP/VoIP Support
· Support ONVIF Profile S Specifications
Camera
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
Color: 0.005Lux @F1.2, Color: 0.008Lux @F2.0, B/W: 0Lux with IR on
WDR
120dB Super WDR
Lens
1.68mm @F2.0
Mount
M12
Field of View
H180°/V95°
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
IR Distance
180° IR Illumination Up to 15m
S/N
>55dB
Video
Max. Image Resolution
2592x1944(Original)
Primary Stream 60Hz: 30fps@(2592x1944)(Original), 30fps@(2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(2592x1944)(Original), 25fps@(2560x1440, 1920x1080, 1280x720)
Secondary Stream20x192) 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 3
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240, 320x192)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 8 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Web Access
Support IE/Firefox/Chrome/Safari Browser
Interface
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio Interface
Built-in Microphone
Network
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/44.1/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
N/A
Intelligent
Analytics Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report
Count the number of people entering or exiting
System
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
General
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)/DC 12V±10%
Power Consumption
5W MAX, 8W MAX (With IR on)
Weather Proof
Up to IP67-rated for Weather-resistant Performance
Housing
Vandal-proof IK10-rated metal housing
Dimensions
127mmX107mm
Weight
853g
