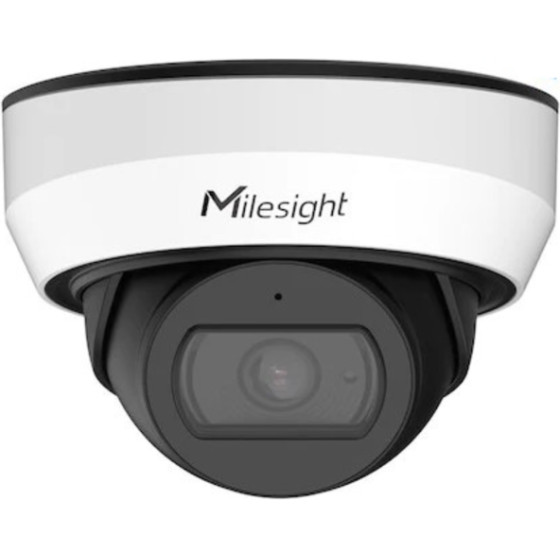

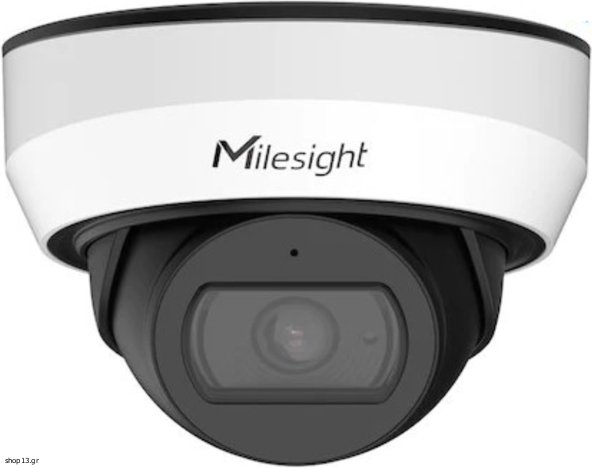

Milesight - (MS-C5375-PD)
[Κωδικός : 464591]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Characteristics
o Lens 2,8 mm
o Built-in Microphone and 802.3af Compliant PoE
o Micro SD/SDHC card local storage support up to 128GB
o Weather-proof IP67, Vandal-proof IK10 metal housing
o Built-in efficient IR LEDs, IR distance up to 30m
o View Field: H111°/D141°/V82°
o SIP/VoIP Support
o Support ONVIF Profile S
o Junction box included
Specifications
Camera
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6/F2.0, B/W: 0Lux with IR on
WDR
140dB Super WDR
Lens
2.8mm/4mm/[email protected]; [email protected]
Mount
M12
Field of View
H111°/D128°/V61°([email protected]), H123°/D142°/V68°([email protected]), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
IR Distance
Up to 25m
S/N
>55dB
Video
Max. Image Resolution
1920x1080
Frame Rate
30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream
30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 8 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Web Access
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/44.1/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
N/A
Interface
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio Interface
Built-in Microphone
Network
Network Storage
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility
ONVIF Profile G & Q & S & T, API
General
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)
Power Consumption
2.5W MAX, 4W MAX (With IR on)
Weather Proof
Up to IP67-rated for weather-resistant performance
Housing
Vandal-proof IK10-rated metal housing
Dimensions
Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Weight
600g(Junction Box Version) / 410g(Cable Out Version)
o Lens 2,8 mm
o Built-in Microphone and 802.3af Compliant PoE
o Micro SD/SDHC card local storage support up to 128GB
o Weather-proof IP67, Vandal-proof IK10 metal housing
o Built-in efficient IR LEDs, IR distance up to 30m
o View Field: H111°/D141°/V82°
o SIP/VoIP Support
o Support ONVIF Profile S
o Junction box included
Specifications
Camera
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6/F2.0, B/W: 0Lux with IR on
WDR
140dB Super WDR
Lens
2.8mm/4mm/[email protected]; [email protected]
Mount
M12
Field of View
H111°/D128°/V61°([email protected]), H123°/D142°/V68°([email protected]), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
IR Distance
Up to 25m
S/N
>55dB
Video
Max. Image Resolution
1920x1080
Frame Rate
30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream
30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 8 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Web Access
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/44.1/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
N/A
Interface
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio Interface
Built-in Microphone
Network
Network Storage
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility
ONVIF Profile G & Q & S & T, API
General
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)
Power Consumption
2.5W MAX, 4W MAX (With IR on)
Weather Proof
Up to IP67-rated for weather-resistant performance
Housing
Vandal-proof IK10-rated metal housing
Dimensions
Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Weight
600g(Junction Box Version) / 410g(Cable Out Version)
