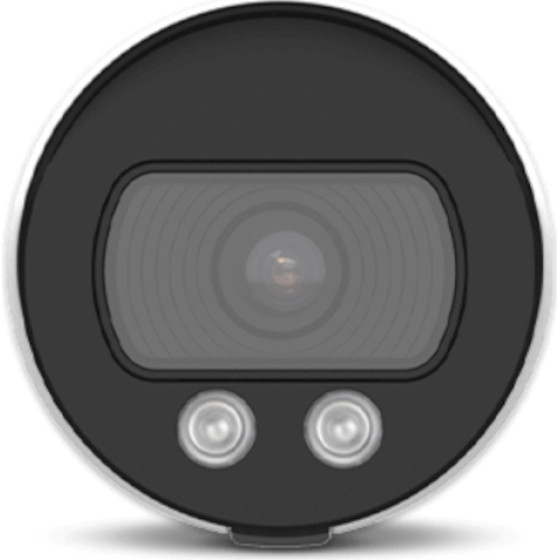

Milesight - (MS-C5364-UPD)
[Κωδικός : 464590]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Characteristics
o 1/3? Progressive Scan CMOS Image sensor
o 0.002 Lux @F1.0
o Lens 2.8 mm
o Super WDR up to 120dB
o H.265 /H.264 High Efficiency Video Coding
o Built-in ICR Filter for Day/Night switching
o Micro SD/SDHC/SDXC card local storage support
o Built-in efficient IR LEDs, IR distance up to 30m
o Weather-proof IP67-rated Housing
o Built-in 802.3af Compliant PoE
o Support ONVIF Profile S.
o Junction box included
Specifications
Camera
Name
5MP AI Color+ Vandal-proof Mini Bullet Network Camera
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
Color: [email protected]
WDR
120dB Super WDR
Lens
2.8mm/[email protected]
Field of View
H105°/D131°/V78°(2.8mm)
H86°/D108°/V63°(4mm)
Shutter Time
1/100000s~1s
Illumination Distance
Up to 30m
S/N
>55dB
Video
Max. Image Resolution
2592x1944
Frame Rate
60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 4 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet
1*RJ45 10M/100M Ethernet Port
Network
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
General
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)
Power Consumption
3W MAX, 5W MAX ((With LED Light on)
Weather Proof
Up to IP67-rated for weather-resistant performance
Housing
Vandal-proof IK10-rated metal housing
Weight
610g(Junction Box Version) / 450g(Cable Out Version)
Dimensions
97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
o 1/3? Progressive Scan CMOS Image sensor
o 0.002 Lux @F1.0
o Lens 2.8 mm
o Super WDR up to 120dB
o H.265 /H.264 High Efficiency Video Coding
o Built-in ICR Filter for Day/Night switching
o Micro SD/SDHC/SDXC card local storage support
o Built-in efficient IR LEDs, IR distance up to 30m
o Weather-proof IP67-rated Housing
o Built-in 802.3af Compliant PoE
o Support ONVIF Profile S.
o Junction box included
Specifications
Camera
Name
5MP AI Color+ Vandal-proof Mini Bullet Network Camera
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
Color: [email protected]
WDR
120dB Super WDR
Lens
2.8mm/[email protected]
Field of View
H105°/D131°/V78°(2.8mm)
H86°/D108°/V63°(4mm)
Shutter Time
1/100000s~1s
Illumination Distance
Up to 30m
S/N
>55dB
Video
Max. Image Resolution
2592x1944
Frame Rate
60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 4 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet
1*RJ45 10M/100M Ethernet Port
Network
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
General
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)
Power Consumption
3W MAX, 5W MAX ((With LED Light on)
Weather Proof
Up to IP67-rated for weather-resistant performance
Housing
Vandal-proof IK10-rated metal housing
Weight
610g(Junction Box Version) / 450g(Cable Out Version)
Dimensions
97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
