Milesight - (MS-C5364-FPA)

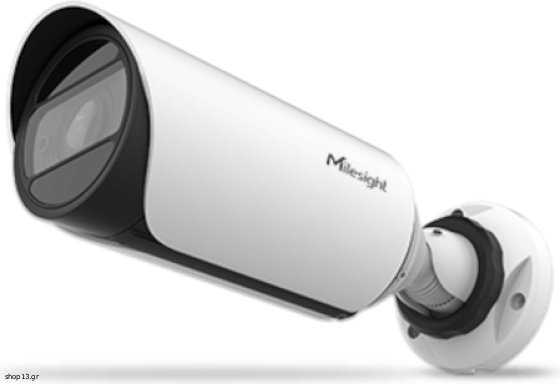

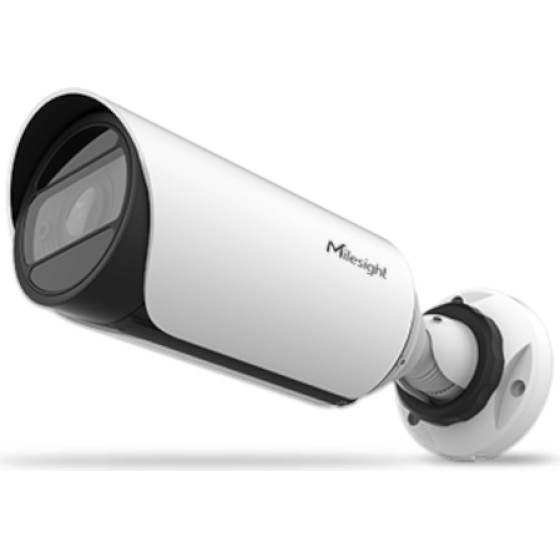

The Milesight MS-C5364-FPA 5MP AI motorized bullet network camera is NDAA compliant product. It offers fantastic AI video analytics, which allows the camera to intelligently filter objects to focus on human and vehicle detection. With a versatile motorised lens (2.7-13.5mm), this 5MP mini bullet camera is able to capture distant subjects rather than fixing on the specific scene with no flexibility. The ultra wide angle lens brings wider field of view to broaden horizons, leaving the narrow view experiences behind.
Specifications

Camera
Image Sensor
1/2.8? Progressive Scan CMOS


Min. Illumination
Color: [email protected] Color: [email protected] B/W: 0Lux with IR on


WDR
120dB Super WDR


Shutter Time
1/100000s~1s


IR Distance
Up to 50m


Day/Night Mode
Day/Night/Auto/Customize/Schedule


S/N
>55dB


Lens Lens
Motorized 2.7~13.5mm/3.0~10.5mm/[email protected] P-Iris(Optional)


Field of View
H99°~H31°/ D124°~D38°/V72°~V23° (2.7~13.5mm) H89°~H31°/D111°~D38°/V66°~V23° (3.0~10.5mm) H37°~H15°/D46°~D19°/V28°~V11° (7~22mm)


Mount
Φ14


Focus Control
Auto/Manual


Iris Control
N/A


Video
Max. Image Resolution
2592x1944


Primary Stream
60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)


Secondary Stream
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)


Tertiary Stream
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)


Video Compression
H.265 +/H.265(HEVC)/H.264 +/H.264/MJPEG


Video Bit Rate
16Kbps~16Mbps(CBR/VBR Adjustable)


Privacy Masking
Up to 24 areas


ROI
Up to 8 areas


Image Setting
Brightness/Contrast/Saturation/Sharpness


Interface
Ethernet
1*RJ45 10M/100M Ethernet Port


Audio I/O
1/1 (Multi-interface Version)


Alarm I/O
1/1 (Multi-interface Version)


Network Network Storage
NAS(Support NFS, SMB/CIFS), ANR


Protocol
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL


Audio
Audio Compression
G.711/AAC/G.722/G.726


Audio Sampling Rate
8/16/32/44.1/48KHz


Audio Bit Rate
16~256kbps


Two-way Audio
Support


Intelligent Analytics
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed


People Counting&Report
Count the number of people entering or exiting, up to 4 detection areas for regional people counting


System Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G


Advanced Function
BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark


SIP/VoIP Support
Yes, Voice & Video-over-IP


Event Trigger
Motion Detection, Network Disconnection, etc


Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.


System Compatibility
ONVIF Profile G & Q & S & T, API


General Working Temperature
-40°C~60°C


Working Humidity
0~90%(Non-condensing)


Power Supply
PoE (802.3af) / DC 12V±10%


Power Consumption
8.5W MAX 11W MAX (With IR on)


Housing
Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance


Weight
825g


Dimensions
Φ76mmX239.5mm


Warranty
3/5 Years
