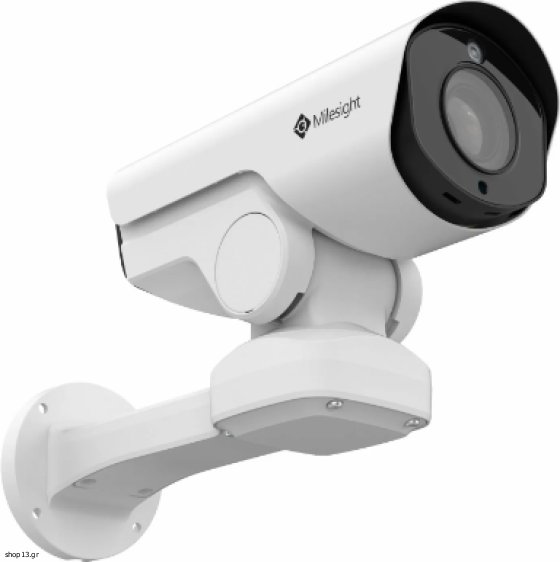

Milesight AI 12X PTZ Bullet Network Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.
Features
ONVIF Profile G & Q & S & T, API Compatible
5MP ·
Supports H.265+/H.265/H.264+/H.264
12X Optical Zoom
100fps
0.002Lux Ultra Low-light
3 in 1 Super WDR Pro
Support SD card, up to 256G
Video Content Analysis
IP66
Specifications
Camera
Name
5MP 12X AI PTZ Bullet Network Camera
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR
120dB Super WDR
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
Digital Zoom
16X
S/N
>55dB
Lens
Focal Leng
4mm, 12X Optical Zoom
Zoom Speed
4s(Wide-Tele)
Field of View
H57°~H4°/D69°~D5°/V44°~V1°
Focus Control
Auto/Semi-Auto/Manual
Minimum Working Distance
1000/1500mm (Wide/Tele)
Aperture
F1.6~F2.8
Iris Control
Auto
PTZ
Pan Range/Pan Speed
360° endless/ Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed
-45°~30°/ Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
Proportional Zoom
Support
Preset Quantity
300
Patrol
8 Patrols, up to 48 presets each patrol
Pattern
4 Patterns
Auto Tracking
Support
Power Off Memory
Support
Other Function
Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR
Irradiation Distance
Up to 140m
Irradiation Angle
Auto/Manual
Video
Max. Image Resolution
2592x1944
Frame Rate
60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream
60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Web Access
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/44.1/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
Support
Interface
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio I/O
1/1(Optional)
Alarm I/O
1/1(Optional)
Network
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video Analysis
Face Detection
Detect and capture faces, get real-time snapshots
People Counting&Report
Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
General
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE (802.3at)/ DC 12V/2A±10%
Power Consumption
14W MAX / 20W MAX (With IR on)
Weather Proof
Up to IP66-rated for weather-resistant performance
Dimensions
160mmX273.5mmX210mm(Wall Mount)/ 218mmX120mmX172mm(Pedestal Mount)
Weight
2Kg(Wall Mount)/ 1.8Kg(Pedestal Mount)
Warranty
2 Years/3 Years(Optional)
