LTE router with Wi-Fi 6 for demanding installations
MikroTik wAP ax LTE7 kit combines an LTE CAT7 modem, dual-band Wi-Fi 6 and two Gigabit Ethernet ports. It works well at home, in the office and in places where standard network infrastructure is difficult to access. The IP66 enclosure protects the device when installed on an external wall or roof. RouterOS v7 provides a ready-made environment for network management.
Key advantages
LTE CAT7 - download speed up to 300 Mb/s and upload speed up to 100 Mb/s, depending on the operator’s infrastructure
Wi-Fi 6 - dual-band wireless network with 2x2 MIMO radio
IP66 enclosure - device protection in demanding installation conditions
2 Gigabit Ethernet ports - wired connections with throughput up to 1000 Mb/s
PoE-IN and DC socket - two ways to power the device
RouterOS v7 - operating system with support for central CAPsMAN management
LTE CAT7 and broad band support
The built-in category 7 LTE modem supports download speeds of up to 300 Mb/s and upload speeds of up to 100 Mb/s. Aggregation of two LTE bands increases connection efficiency in congested networks. The device supports, among others, band 28 at 700 MHz and band 32 at 1500 MHz. The Micro SIM card is inserted into the dedicated slot.
Dual-band Wi-Fi 6 with 2x2 antennas
The Wi-Fi 6 radio operates in the 2.4 GHz and 5 GHz bands, and two 2x2 MIMO radio chains support coverage at home, on the property or in a business premises. Maximum transmission speed is 574 Mb/s in the 2.4 GHz band and 1200 Mb/s in the 5 GHz band. Antenna gain is 6.9 dBi and 7 dBi respectively.
IP66 enclosure and discreet installation

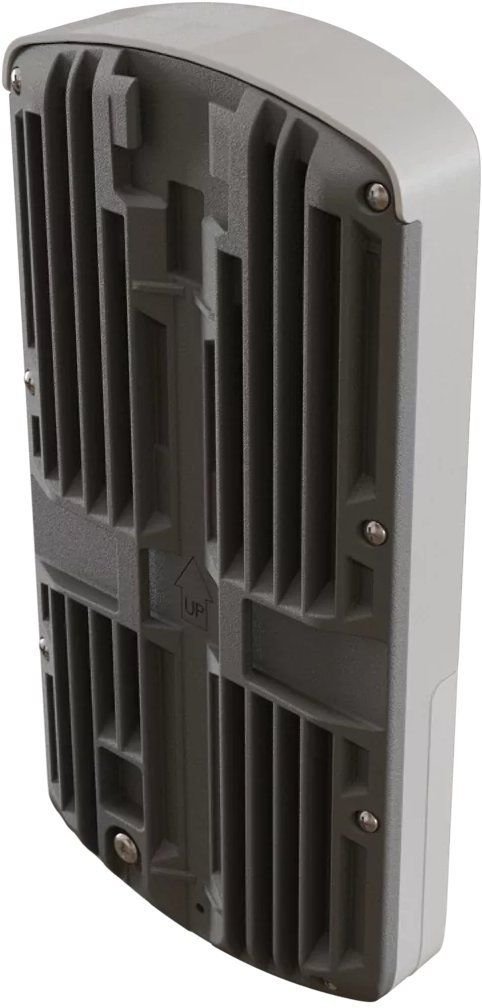

The reinforced IP66 enclosure is designed for installation in demanding environments. The design allows mounting to an external wall or roof from inside the enclosure. The anti-vandal screw is located behind the MikroTik logo. The rear recess indicates where to make the cable entry, which makes discreet wall mounting easier.
RouterOS v7 and flexible power supply

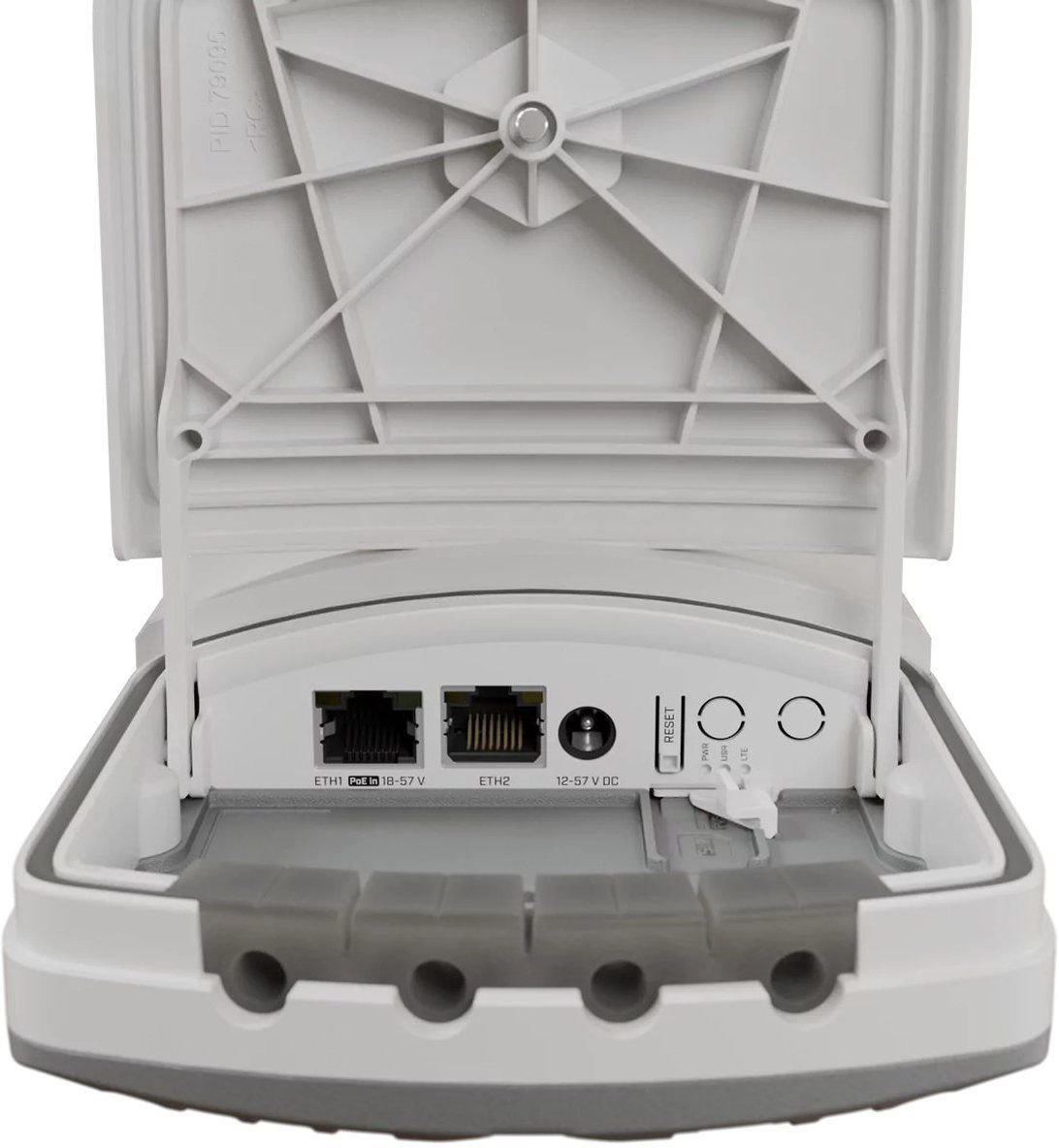

A dual-core 800 MHz ARM processor, 256 MB of RAM and RouterOS v7 create a platform for managing the connection and wireless network. CAPsMAN allows central management of multiple devices. The router can be powered via PoE-IN 802.3af/at or the DC socket. The set includes a 24 V 0.8 A power supply and a gigabit PoE injector.
Specification
ParameterDetails
ManufacturerMikroTik
ModelwAP ax LTE7 kit
Product codewAPGR-5HaxD2HaxD&R11e-LTE7
Operating systemRouterOS v7
RouterOS licence4
ProcessorIPQ-5010, ARM 32-bit
Number of processor cores2
Processor frequency800 MHz
RAM256 MB
Storage128 MB NAND
LTE modemCategory 7
Maximum LTE speedDownload: 300 Mb/s; upload: 100 Mb/s
SIM slot1 x Micro SIM
2.4 GHz Wi-FiWi-Fi 6, up to 574 Mb/s, 2x2 MIMO
5 GHz Wi-FiWi-Fi 6, up to 1200 Mb/s, 2x2 MIMO
2.4 GHz antenna gain6.9 dBi
5 GHz antenna gain7 dBi
Ethernet ports2 x 10/100/1000 Mb/s
Power supplyDC socket 12-57 V; PoE-IN 18-57 V
PoE standard802.3af/at
Maximum power consumption13 W
CoolingPassive
Operating temperatureFrom -30°C to 70°C
Ingress protection ratingIP66
Dimensions118 x 278 x 81 mm
Net weight1.1 kg
CertificationsCE, EAC, ROHS
