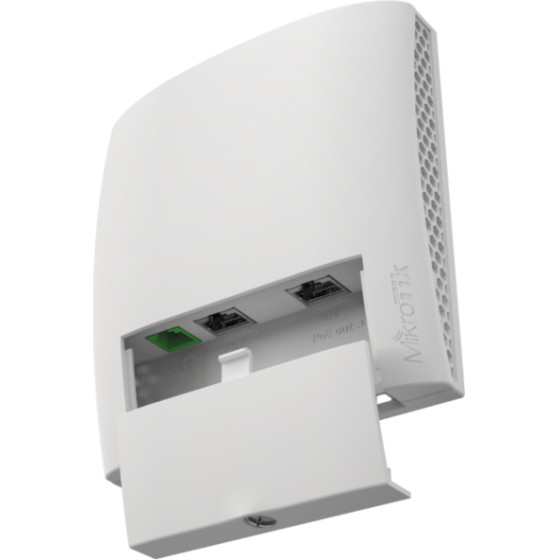

MikroTik - (RBwsAP-5Hac2nD)

Specifications


Details Product code
RBwsAP-5Hac2nD


Architecture
MIPSBE


CPU
QCA9531


CPU core count
1


CPU nominal frequency
650 MHz


Dimensions
112 x 126 x 30 mm


RouterOS license
4


Operating System
RouterOS


Size of RAM
64 MB


Storage size
16 MB


Storage type
FLASH


MTBF
Approximately 100’000 hours at 25C


Tested ambient temperature
-40°C to 60°C


Wireless capabilities Wireless 2.4 GHz Max data rate
300 Mbit/s


Wireless 2.4 GHz number of chains
2


Wireless 2.4 GHz standards
802.11b/g/n


Antenna gain dBi for 2.4 GHz
1.5


Wireless 2.4 GHz chip model
QCA9531


Wireless 2.4 GHz generation
Wi-Fi 4


Wireless 5 GHz Max data rate
433 Mbit/s


Wireless 5 GHz number of chains
1


Wireless 5 GHz standards
802.11a/n/ac


Antenna gain dBi for 5 GHz
3


Wireless 5 GHz chip model
QCA-9887


Wireless 5 GHz generation
Wi-Fi 5


AC speed
AC750


Ethernet
10/100 Ethernet ports
3


Peripherals Number of USB ports
1


USB Power Reset
Yes


USB slot type
USB type A


Max USB current (A)
0.5


Powering Number of DC inputs
1 (PoE-IN)


Max power consumption
20 W


Max power consumption without attachments
6 W


FAN count
Passive


PoE in
802.3af/at


PoE in input Voltage
18-57 V


PoE-out PoE-out ports
Ether3


PoE out
Passive PoE


Max out per port output (input 18-30 V)
420 mA


Max out per port output (input 30-57 V)
420 mA


Max total out (A)
420 mA


Certification & Approvals Certification
CE, FCC, IC, EAC, ROHS


IP
IP20


Other
Mode button
Yes
