Description

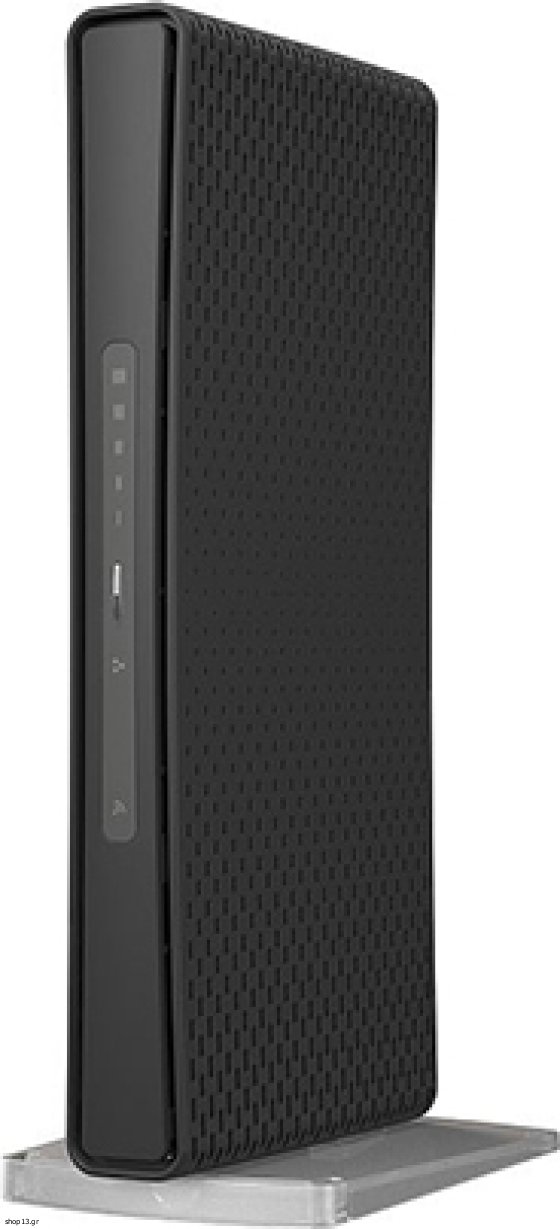

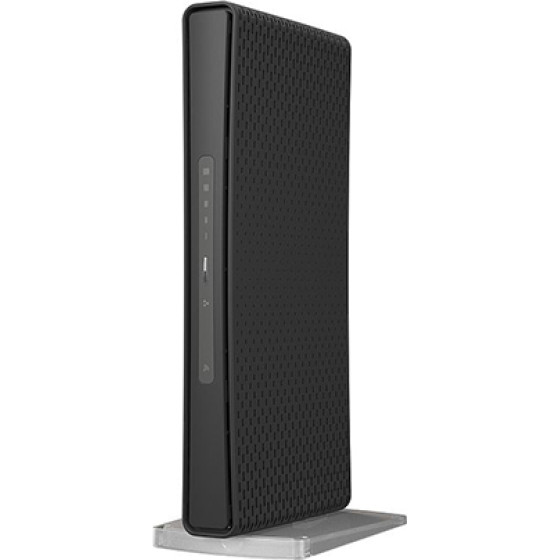

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households.
With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage.
The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.
Specifications
Details Architecture
ARM 32bit
CPU
IPQ-4019
CPU core count
4
CPU nominal frequency
716 MHz
Dimensions
251 x 129 x 39 mm
RouterOS license
4
Operating System
RouterOS
Size of RAM
256 MB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 100’000 hours at 25C
Tested ambient temperature
-40°C to 70°C
IPsec hardware acceleration
Yes
Wireless capabilities Wireless 2.4 GHz Max data rate
300 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
3
Wireless 2.4 GHz chip model
IPQ-4019
Wireless 2.4 GHz generation
Wi-Fi 4
Wireless 5 GHz Max data rate
867 Mbit/s
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
IPQ-4019
Wireless 5 GHz generation
Wi-Fi 5
AC speed
AC1200
Ethernet 10/100/1000 Ethernet ports
5
Number of 1G Ethernet ports with PoE-out
1
Peripherals Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1
Powering Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-28 V
Max power consumption
30 W
Max power consumption without attachments
12 W
FAN count
Passive
PoE in
Passive PoE
PoE in input Voltage
18-28 V
PoE-out PoE-out ports
Ether5
PoE out
Passive PoE
Max out per port output (input 18-30 V)
0.5 A
Max total out (A)
0.5 A
Certification & Approvals Certification
CE, FCC, IC, EAC, ROHS
IP
IP20
Other
Mode button
Yes
