Description

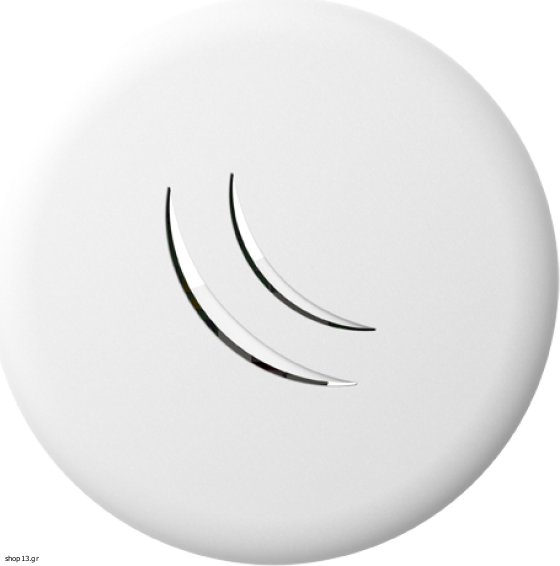

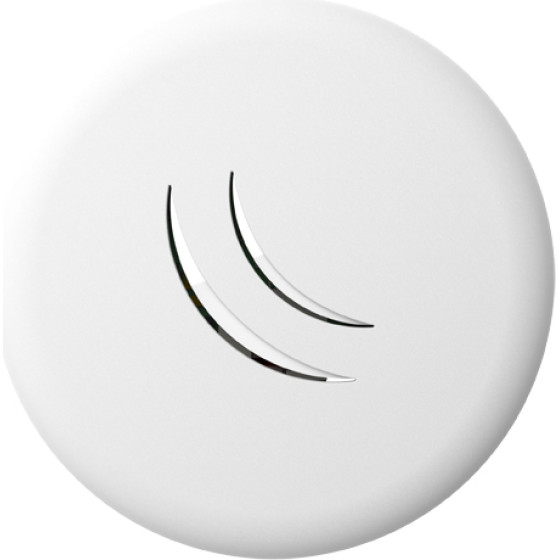

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer friendly design files.
The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.
Specifications
Details Product code
RBcAPL-2nD
Architecture
MIPSBE
CPU
QCA9533
CPU core count
1
CPU nominal frequency
650 MHz
Dimensions
Wall case: 88 x 52 x 20 mm Ceiling case: ?88 mm x 20 mm
RouterOS license
4
Operating System
RouterOs
Size of RAM
64 MB
Storage size
16 MB
Storage type
FLASH
MTBF
Approximately 100’000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Wireless Capabilities Wireless 2.4 GHz Max data rate
300 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
1.5
Wireless 2.4 GHz chip model
QCA9533
Wireless 2.4 GHz generation
Wi-Fi 4
Ethernet
10/100 Ethernet ports
1
Peripherals Number of USB ports
1
USB slot type
microUSB type AB
Max USB current (A)
1
Powering MicroUSB input Voltage
5-5 V
Number of DC inputs
2 (PoE-IN, MicroUSB)
Max power consumption
4 W
FAN count
Passive
PoE in
802.3af/at
PoE in input Voltage
10-60 V
Certification & Approvals Certification
CE, FCC, IC, EAC, ROHS
IP
IP20
