Περιγραφή
Description

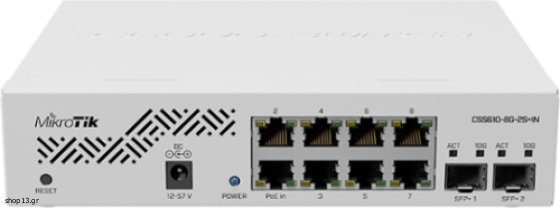

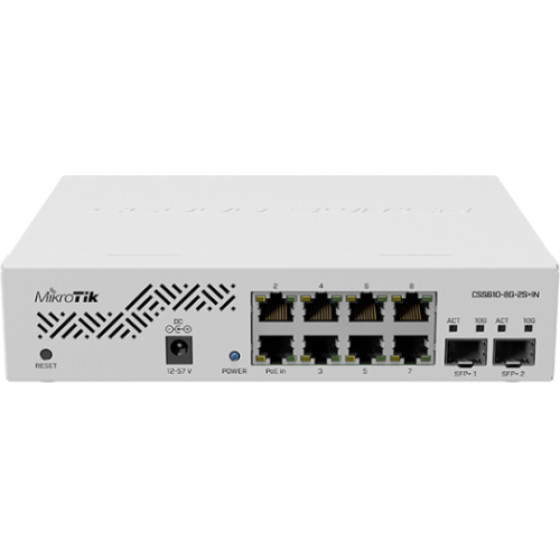

Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. Specifications
Details Product code
CSS610-8G-2S+IN
Dimensions
200 x 167 x 46 mm
Operating System
SwitchOS Lite
Storage size
64 KB
Storage type
FLASH
MTBF
Approximately 100’000 hours at 25C
Tested ambient temperature
-20°C to 60°C
Powering Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-57 V
Max power consumption
11 W
Max power consumption without attachments
5 W
FAN count
Passive
PoE in
Passive PoE
PoE in input Voltage
12-57 V
Ethernet
10/100/1000 Ethernet ports
8
Fiber
SFP+ ports
2
Certification & Approvals Certification
CE, EAC, ROHS
IP
IP20
