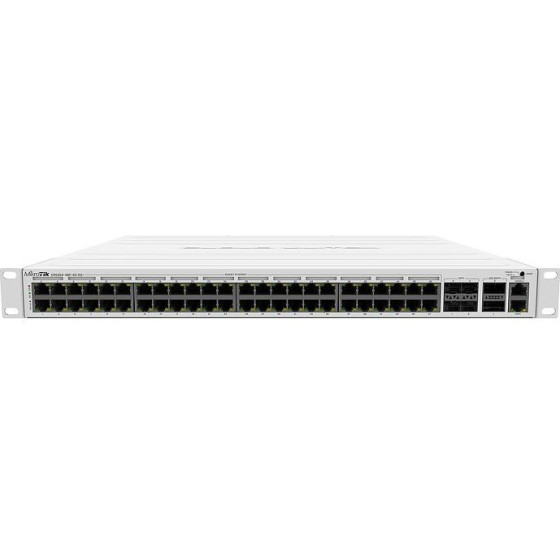

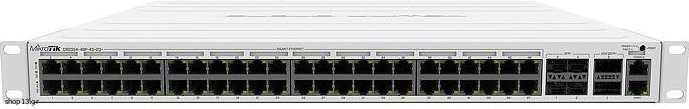

MikroTik - (CRS354-48P-4S+2Q+RM)

Specifications

Details Product code
CRS354-48P-4S+2Q+RM


Architecture
MIPSBE


CPU
QCA9531


CPU core count
1


CPU nominal frequency
650 MHz


Dimensions
443 x 382 x 44 mm


RouterOS license
5


Operating System
RouterOS


Size of RAM
64 MB


Storage size
16 MB


Storage type
FLASH


MTBF
Approximately 200’000 hours at 25C


Tested ambient temperature
-20°C to 60°C


Powering Number of AC inputs
1


AC input range
100-240


Max power consumption
800 W


Max power consumption without attachments
85 W


FAN count
4


PoE-out PoE-out ports
Ether1-Ether48


PoE out
802.3af/at


Max out per port output (input 18-30 V)
1000 mA


Max out per port output (input 30-57 V)
570 mA


Total output current
27A at 26V OR 13.2A at 53V


Total output power
700W


Ethernet 10/100 Ethernet ports
1


10/100/1000 Ethernet ports
48


Fiber SFP+ ports
4


Number of 40G QSFP+ ports
2


Peripherals
Serial console port
RJ45


Other CPU temperature monitor
Yes


Current Monitor
Yes


PCB temperature monitor
Yes


Voltage Monitor
Yes


Certification & Approvals Certification
CE, EAC, ROHS


IP
IP20
