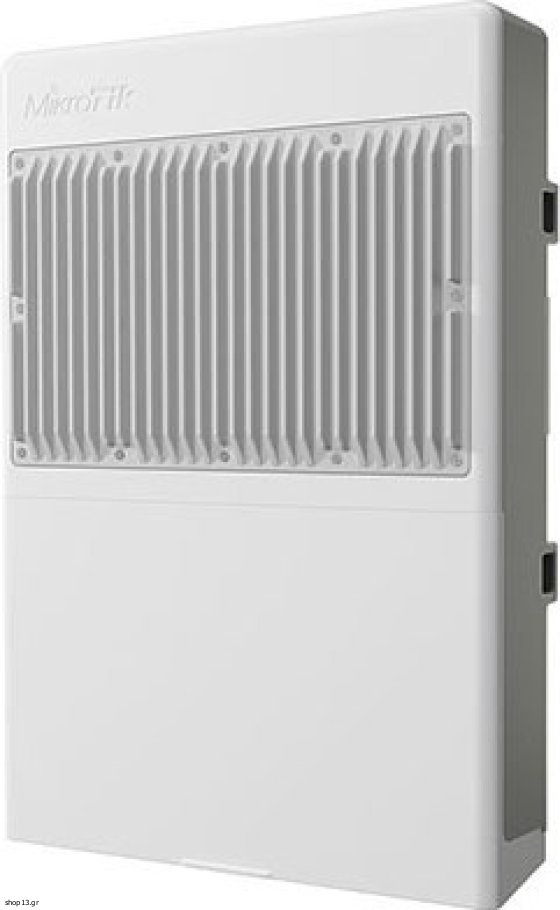

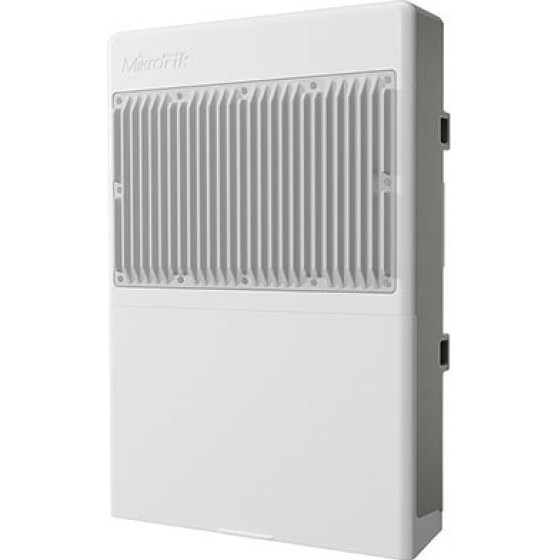

MikroTik - (CRS318-16P-2S+OUT)

Details

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.
Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments - from damp attics and shafts to towers, masts and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
Device itself does not have an onboard voltage converter Specifications

Details Product code
CRS318-16P-2S+OUT


Architecture
ARM 32bit


CPU
98DX226S


CPU core count
1


CPU nominal frequency
800 MHz


Dimensions
303 x 212 x 78 mm


RouterOS license
5


Operating System
RouterOS/SwitchOS


Size of RAM
256 MB


Storage size
16 MB


Storage type
FLASH


MTBF
Approximately 200’000 hours at 25C


Tested ambient temperature
-40°C to 70°C


Powering Number of DC inputs
2 (DC jack)


DC jack input Voltage
18-30 V / 48-57 V


Max power consumption
316 W


Max power consumption without attachments
16 W


FAN count
Passive


PoE-out PoE-out ports
Ether1-Ether16


PoE out
802.3af/at


Max out per port output (input 18-30 V)
1.1 A


Max out per port output (input 30-57 V)
0.6 A


Max total out (A)
2.8A (18V-30V) & 1.4A (48V-57V) x2 A


Ethernet 10/100/1000 Ethernet ports
16


Number of 1G Ethernet ports with PoE-out
16


Fiber
SFP+ ports
2


Other CPU temperature monitor
Yes


Voltage Monitor
Yes


Certification & Approvals Certification
CE, EAC, ROHS


IP
IP54
