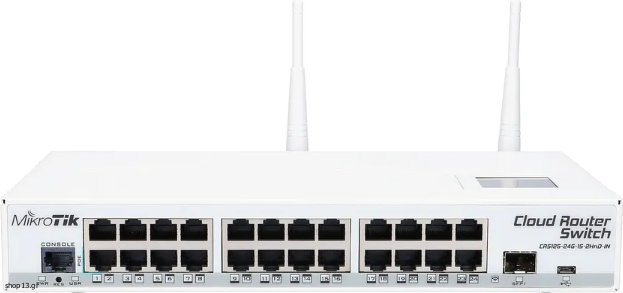

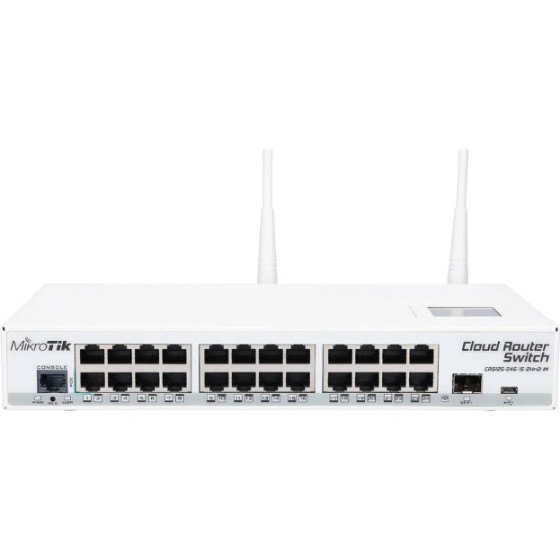

Mikrotik - (CRS125-24G-1S-2HnD-IN)

CRS125-24G-1S-2HnD-IN
Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP. Perfect SOHO gateway router, switch, 11n AP all in one box

o Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet

o RouterOS gateway/firewall/VPN router with passive cooling

o up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)

o 1000mW high power 2.4GHz 11n wireless AP
Specifications


Product code
CRS125-24G-1S-2HnD-IN


SFP DDMI
Yes


CPU nominal frequency
600 MHz


CPU core count
1


Size of RAM
128 MB


Architecture
MIPS-BE


10/100/1000 Ethernet ports
24


Wireless standards
802.11b/g/n


Wireless chip model
AR9344


Number of USB ports
1


Power Jack
1


PoE in
Yes


Supported input voltage
8 V - 28 V


Voltage Monitor
Yes


PCB temperature monitor
Yes


Dimensions
285x145x45mm


Operating System
RouterOS


Tested ambient temperature
-35C to +65C


License level
5


Antenna gain DBI
4


CPU
AR9344


Max Power consumption
19W


SFP ports
1


USB slot type
microUSB type AB


Number of chains
2


Serial port
RJ45


Storage type
NAND


Storage size
128 MB
