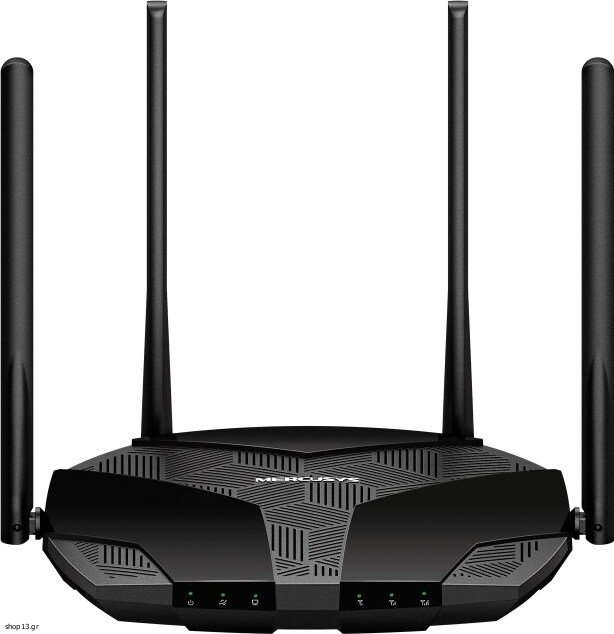

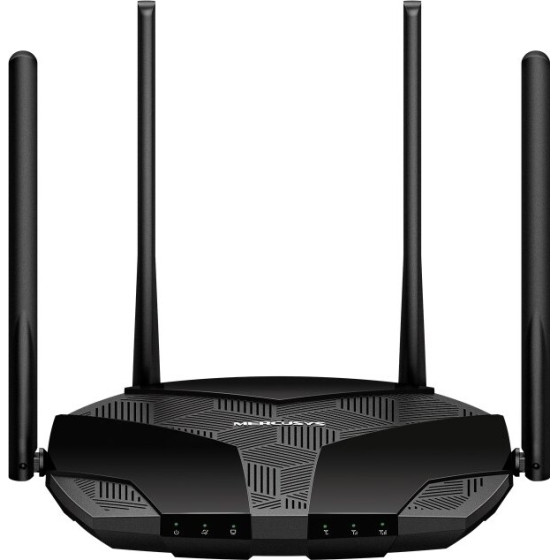

MERCUSYS router - (MB235-4G)

Design
Indication light: Yes
Product colour: Black

Power
Output current: 1 A
Output voltage: 12 V

Security
Firewall: Yes
DMZ support: Yes
Port-based Network Access Control (PNAC): Yes
Security algorithms: WPA2-PSK, WPA3-SAE, WPA-PSK

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Management features
WPS push button: Yes
Reset button: Yes

Weight & dimensions
Height: 41.7 mm
Depth: 171.9 mm
Width: 209 mm

Network
Dynamic DNS (DDNS): Yes
Ethernet LAN data rates: 1000 Mbit/s, 100, 10
Ethernet LAN: Yes

Packaging content
Power supply included: Yes
Quick installation guide: Yes

Wireless LAN features
Wi-Fi band: 2,4 GHz, 5 GHz
Wi-Fi standards: 802.11ac, 802.11b, 802.11g, 802.11a, Wi-Fi 4 (802.11n)

Protocols
Universal Plug and Play (UPnP): Yes
VoIP protocols: IPv4, IPv6
DHCP server: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 4

Antenna
Antenna design: External

WAN connection
WAN connection type: RJ-45
SIM card slot: Yes
Ethernet WAN: Yes

Mobile network
UMTS bands supported: 900, 850, 2100 MHz
4G bands supported: 2600 MHz, 850, 1800, 900, 2100, 800, 700, 2300
3G standards: HSPA+, UMTS
4G standard: LTE-TDD & LTE-FDD
SIM card type: NanoSIM

Safety warning
Warnings: Do not expose the device to water or moisture., Do not dismantle the unit yourself, there is a risk of electric shock., Do not expose the device to extreme temperatures.


Warranty: warranty 36 months
