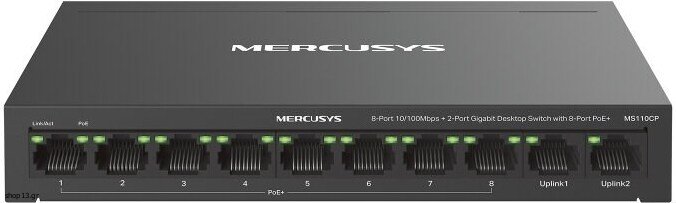

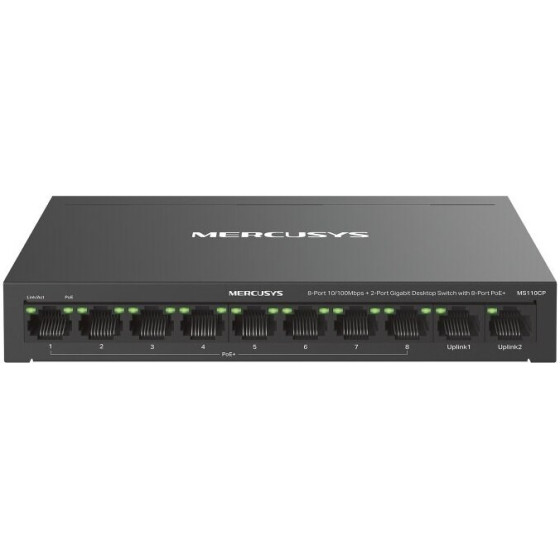

MERCUSYS Network Switch PoE Support Black - (MS110CP)

Design
Product colour: Black
Wall mountable: Yes
Rack mounting: No
Stackable: No

Power
Input current: 1.31 A
Power supply included: Yes
DC input voltage: 53.5 V
AC input frequency: 50 Hz
Power source: AC
Power consumption (typical): 3.5 W
AC input voltage: 220 V

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Width: 171 mm
Height: 27 mm
Depth: 98 mm

Network
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Auto-negotiation: Yes
Auto MDI/MDI-X: Yes
10G support: No
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 10

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 65 W

Safety warning
Warnings: Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.


Warranty: warranty 36 months
