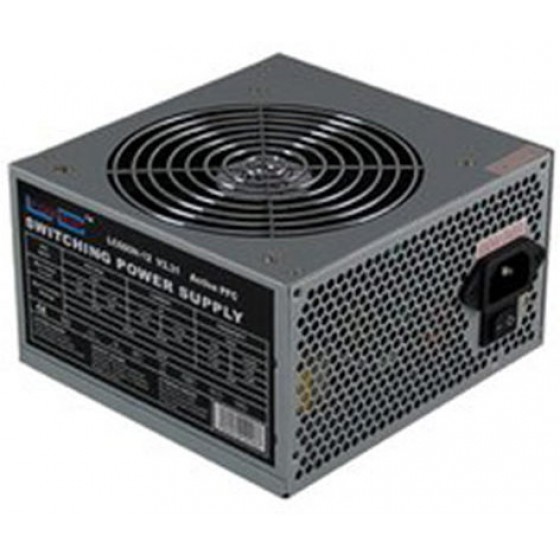

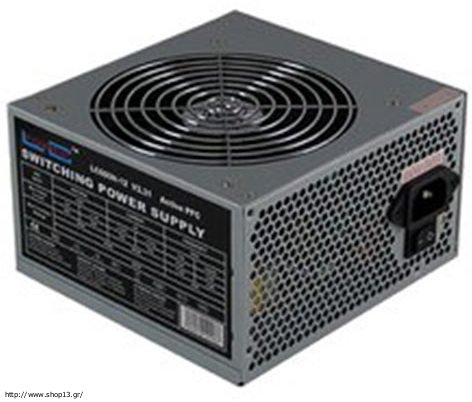

LCPOWER LC600H 12 V2,31 600W120MM 4XSATA 2XPATA2XPCIE/ACTIVE PFC - (4260070122286)

LCPOWER LC600H 12 V2,31 600W120MM 4XSATA 2XPATA2XPCIE/ACTIVE PFC Technical overview Power supply type Office Series ATX standard ATX V2.31 Connectors 20+4 pin mainboard 1x 40 cm 4+4 pin mainboard 12V 1x 40 cm PCI-Express 1x PCI-Express 6-Pin 40 cm; 1x PCI-Express 6+2-Pin 50 cm SATA 6 (2x 40 / 2x 50 / 1x 55 / 1x 65 cm) PATA 3 (2x 60 / 1x 75 cm) FDD 2x 70 cm Mark of conformity CE Fan 120 mm PFC active Dimension h x w x d 86 x 150 x 140mm Weight (retail) 1,467 kg Power rating 600W max. / peak +3,3V 24A +5V 24A +12V1 20A +12V2 20A Standby consumption 0,25W - ErP 2013 Temperature control for case fan yes Security circuitry OVP = Over-Voltage Protection OPP = Over-Power Protection SCP = Short-Circuit Protection UVP = Under-Voltage Protection Multirange (110V/220V) no Haswell compatible yes Characteristics: 600W max. / peak 120mm fan 1x PCI-Express 6 pin & 1x PCI-Express 6+2 pin Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
