Περιγραφή

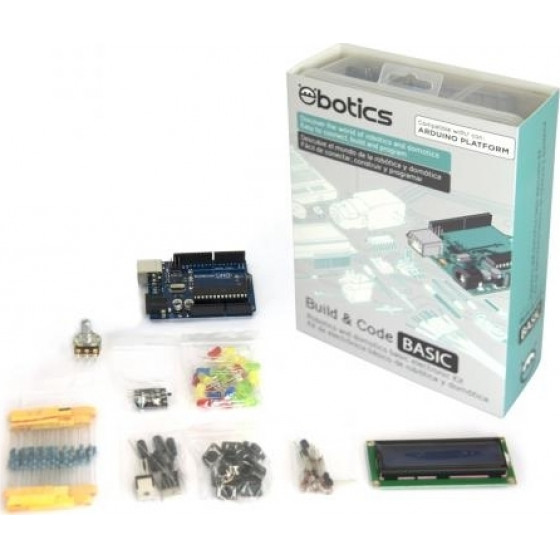

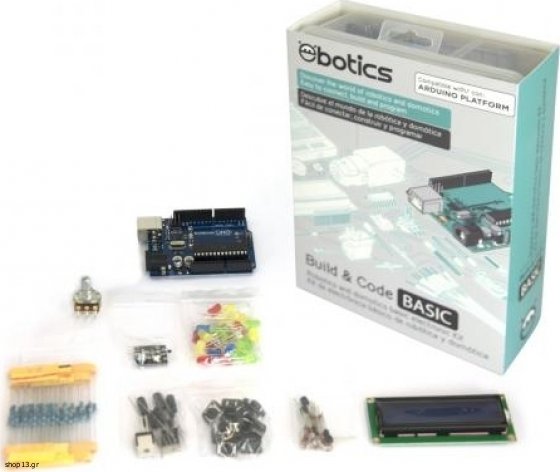

Build & Code Basic is an electronic kit for enthusiasts in robotics and
domot¬ics fields. It features a selection of electronic components (sensors,
LEDs, motors, etc.) which allows you to develop basic and advanced projects.
Designed for beginners and experts in STEAM fields (acronym of Science,
Technology, Engineering, Arts and Math).
With the Build & Code Kit you will be able to assemble and program your
own electronic/interactive projects. For example, a LED switch or a motor that
is controlled by a light sensor.
The Build & Code Kit is also compatible with mBlock visual software,
which features a friendly and simple interface that is very convenient for
beginners in programming.
This product is designed for anyone who is interested in electronics and
programming and wants to apply ideas on interactive projects.
Basic description of the Build&Code UNO board
Build&Code Uno is a programmable board based on Arduino technology, it
has the same ATmega328P microcontroller as Arduino UNO. The board power input
can be via USB Type A-USB Type B cable (the standard printer USB cable) or via
battery. The recommended power input range is 7-12V. It has a built-in LED which
allows you to have visual communication with the board.
Because the Build & Code Kit is based on Arduino technology it also open
source, which means that its electronic schemes can be found for free on the
Internet and its programming software is also free. There are many internet
communities available where you can ask questions, download projects for free to
replicate, modify or adapt them to your needs. You can also participate in
projects with other users or even be an active member and help other people.
You can check our Build & Code educational resources, this includes
documents, basic concepts description, tutorials, simple projects to get
started, etc. These are available at the next link: Build & Code Tech
Resources.
Technical Specs
Build&Code UNO board (Microcontroller ATmega328P)
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limit): 6-20V
14 Digital I/O Pins (of which 6 provide PWM output)
6 PWM Digital I/O Pins
6 Analog Input Pins
DC Current per I/O Pin: 20 Ma
DC Current for 3.3V Pin: 50 Ma
Clock Speed: 16 MHz
Size: 68 x 53 mm
Weight: 25 g
Programmable with Arduino IDE and mBlock (Scratch 2.0)
Compatible with Mac, Windows and Linux
Build & Code documents and resources available at the next link: Build
& Code Tech Resources
