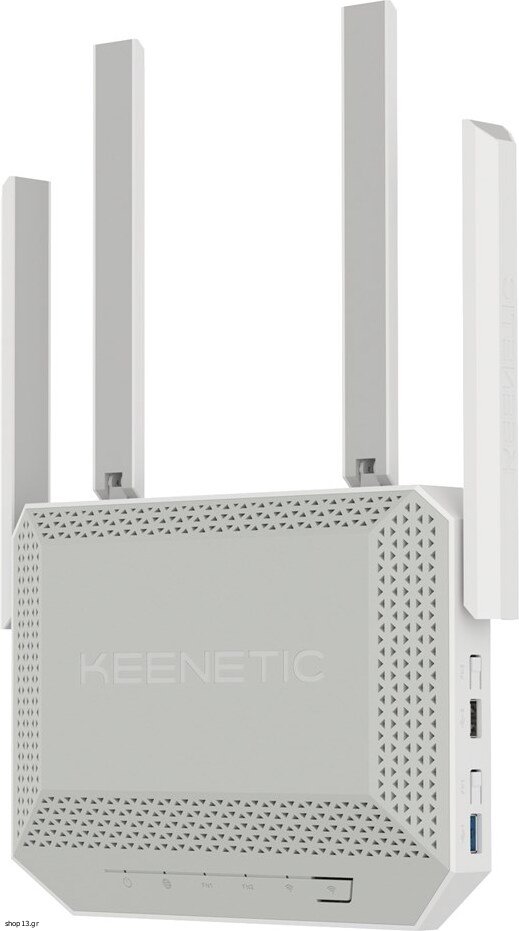

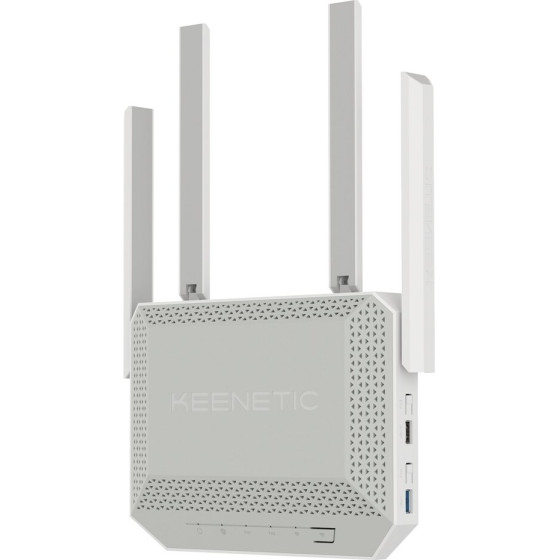

Keenetic Titan BE7200 Mesh Wi-Fi 7 Multi-Gigabit Router with a 1x10G, 1x2.5G and 4x1G Smart Switch, Multifunctional USB 3.2 and 2.0 Ports - (KN-1812-01-EU)

Features
Internal memory type: DDR4
Processor model: MediaTek MT7988D
Flash memory: 256 MB
Processor cores: 3
Internal memory: 1024 MB
Processor frequency: 1800 MHz
Firmware upgradeable: Yes
Processor manufacturer: MediaTek
Built-in processor: Yes
WireGuard: Yes
AdGuard ad blocker: Yes
Cloudflare DNS: Yes

Design
Housing material: Plastic
LED indicators: LAN, Power, WLAN
Product colour: White
Product type: Tabletop router

Power
AC input voltage: 100 - 240 V
Output voltage: 12 V
AC input frequency: 50/60 Hz
Output current: 3 A
Power source type: AC

Security
Security algorithms: OWE, WPA2-Enterprise, WPA-PSK, WPA2-PSK, WEP, WPA3-Enterprise, WPA3-PSK
DoS attack prevention: Yes
Firewall: Yes
Parental control: Yes
MAC address filtering: Yes
System event log: Yes
Guest access: Yes
Network address translation (NAT): Yes
Firewall security: SPI
IGMP snooping: Yes
Schedule access: Yes

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%

Management features
WPS push button: Yes
Command-line interface (CLI): Yes
Captive portal: Yes
Cloud-managed: Yes
Web-based setup wizard: Yes
Web-based management: Yes
Reset button: Yes
Traffic statistics: Yes
Bandwidth control: Yes
Number of data streams: 4x4
MU-MIMO technology: Yes
Intelligent Mesh technology: Yes
Backup function: Yes
MIMO: Yes
Quality of Service (QoS) support: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
HTTPS security for access via KeenDNS: Yes
Direct or cloud access via KeenDNS: Yes

Weight & dimensions
Height: 45 mm
Depth: 159 mm
Weight: 735 g
Width: 217 mm

Network
Dynamic DNS (DDNS): Yes
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11be, IEEE 802.11r, IEEE 802.1Q, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11k, IEEE 802.11a, IEEE 802.11v, IEEE 802.11b
Port forwarding: Yes
Ethernet LAN data rates: 2500 Mbit/s, 10, 10000 Mbit/s, 100, 1000 Mbit/s
Built-in FTP server: Yes
Support Samba (storage): Yes
Ethernet LAN: Yes
Ethernet LAN interface type: 10 Gigabit Ethernet
Cabling technology: 10/100/1000/2500/5000/10000Base-T
Number of guest networks (5 GHz): 7
Number of guest networks (2.4 GHz): 7
Policy-based routing: Yes
VPN server: OpenVPN
WireGuard throughput: 900 Mbit/s
L2TP/PPTP data rate: 3000 Mbit/s
Routing table: DHCP, Manual
Internet connection backup: Yes
Media server: Yes
Ping check: Yes
PPPoE/PPTP/L2TP pass-through: Yes
IPoE/PPPoE data rate: 10000 Mbit/s
IntelliQoS: Yes

System requirements
Mobile operating systems supported: iOS, Android

Packaging content
Cables included: LAN (RJ-45)
Quick start guide: Yes
AC adapter included: Yes

Wireless LAN features
WLAN data transfer rate (second band): 5764 Mbit/s
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Modulation: OFDMA
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max): 7200 Mbit/s
WLAN data transfer rate (first band): 300 Mbit/s

Protocols
Universal Plug and Play (UPnP): Yes
IPv4 & IPv6 features: IPv6 SSH, Dual stack IPv4/IPv6, IPv6 Telnet
DHCP client: Yes
DHCP server: Yes
Supported network protocols: IPoE, PPPoE, PPTP, L2TP, 802.1x
UDP-to-HTTP proxy: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 6
USB port: Yes
USB 2.0 ports quantity: 1
DC-in jack: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Antenna
Antenna design: External
Antennas quantity: 4

WAN connection
3G/4G USB modem compatibility: Yes
DSL WAN: No
SIM card slot: No
WAN connection type: RJ-45, WISP
Ethernet WAN: Yes

Other features
Number of users: 512 user(s)

Mobile network
USSD request support: Yes


Warranty: Manufacturer warranty 36 months
