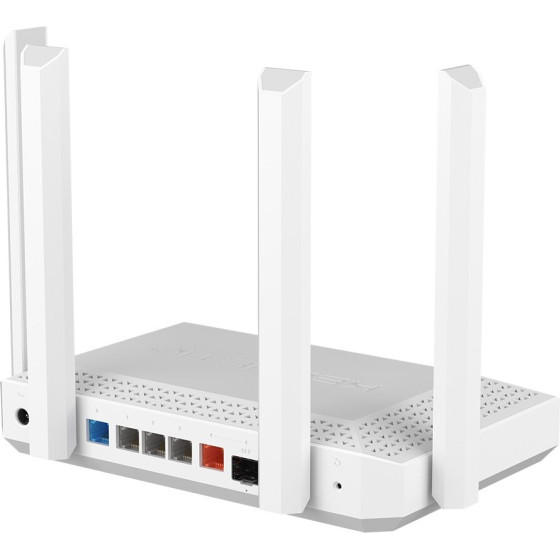

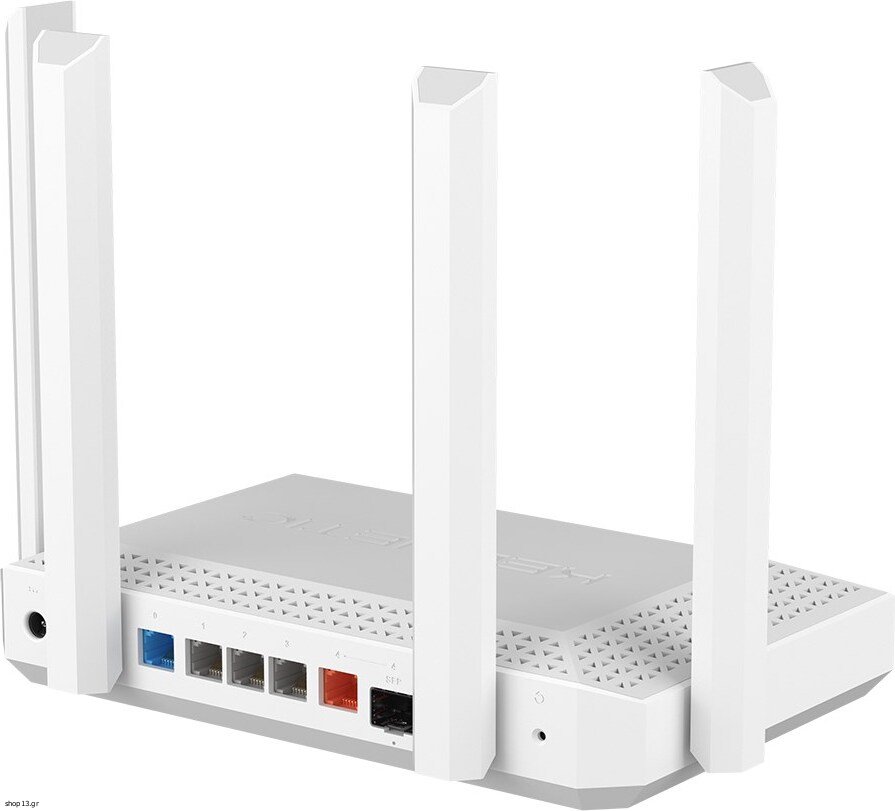

Keenetic Hero AX3000 Mesh Wi-Fi 6 Multi-Gigabit Router with a 4-Port Gigabit and 1-Port 2.5 Gigabit Smart Switch, SFP Combo Port, USB 2.0 and USB 3.0 Ports - (KN-1012-01-EU)

Features
Processor cores: 2
Processor frequency: 1300 MHz
Flash memory: 256 MB
Internal memory type: DDR4
Firmware upgradeable: Yes
Processor manufacturer: MediaTek
AdGuard ad blocker: Yes
Processor model: MediaTek MT7981B
Internal memory: 512 MB
WireGuard: Yes
Cloudflare DNS: Yes
Built-in processor: Yes

Design
Product colour: White
Product type: Tabletop router
LED indicators: LAN, Power, WLAN

Power
Output voltage: 12 V
AC input frequency: 50/60 Hz
Power source type: AC
Output current: 2.5 A
AC input voltage: 100 - 240 V

Security
Schedule access: Yes
Guest access: Yes
Parental control: Yes
Stateful Packet Inspection (SPI): Yes
Security algorithms: WPA3-PSK, WPA2-Enterprise, WEP, WPA3-Enterprise, WPA2-PSK, WPA-PSK, OWE
MAC address filtering: Yes
IGMP snooping: Yes
Network address translation (NAT): Yes
Firewall: Yes
Firewall security: SPI
System event log: Yes
DoS attack prevention: Yes

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%

Management features
Intelligent Mesh technology: Yes
Number of data streams: 3x3
Bandwidth control: Yes
MU-MIMO technology: Yes
Traffic statistics: Yes
Cloud-managed: Yes
WPS push button: Yes
Command-line interface (CLI): Yes
MIMO: Yes
Captive portal: Yes
Web-based management: Yes
Backup function: Yes
Web-based setup wizard: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
HTTPS security for access via KeenDNS: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
Direct or cloud access via KeenDNS: Yes

Weight & dimensions
Weight: 616 g
Height: 45 mm
Depth: 159 mm
Width: 217 mm

Network
VPN server: OpenVPN
Media server: Yes
Built-in FTP server: Yes
Policy-based routing: Yes
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.1Q, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, IEEE 802.11v, IEEE 802.11r, IEEE 802.11k, IEEE 802.11ac
Ethernet LAN interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 2500 Mbit/s, 10, 1000, 100
Ethernet LAN: Yes
Ping check: Yes
IPoE/PPPoE data rate: 2500 Mbit/s
Port forwarding: Yes
Internet connection backup: Yes
L2TP/PPTP data rate: 2400 Mbit/s
PPPoE/PPTP/L2TP pass-through: Yes
IntelliQoS: Yes
Dynamic DNS (DDNS): Yes
Routing table: Manual, DHCP
WireGuard throughput: 460 Mbit/s
Number of guest networks (5 GHz): 7
Number of guest networks (2.4 GHz): 7

System requirements
Mobile operating systems supported: Android, iOS

Packaging data
Number of products included: 1 pc(s)

Packaging content
Quick start guide: Yes
AC adapter included: Yes
Cables included: LAN (RJ-45)

Wireless LAN features
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
Wi-Fi standards: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 3000 Mbit/s
Modulation: OFDMA
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Protocols
DHCP server: Yes
Supported network protocols: IPoE, PPPoE, PPTP, L2TP, 802.1x
IPv4 & IPv6 features: IPv6 SSH, Dual stack IPv4/IPv6, IPv6 Telnet
DHCP client: Yes
UDP-to-HTTP proxy: Yes
Universal Plug and Play (UPnP): Yes

Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
DC-in jack: Yes
USB port: Yes
Ethernet LAN (RJ-45) ports: 5
Fiber optic connector: SFP

Antenna
Antenna design: External
Antennas quantity: 4

WAN connection
Ethernet WAN: Yes
3G/4G USB modem compatibility: Yes
SIM card slot: No
DSL WAN: No
WAN connection type: RJ-45, SFP, WISP

Other features
Number of users: 256 user(s)

Mobile network
USSD request support: Yes


Warranty: Manufacturer warranty 36 months
