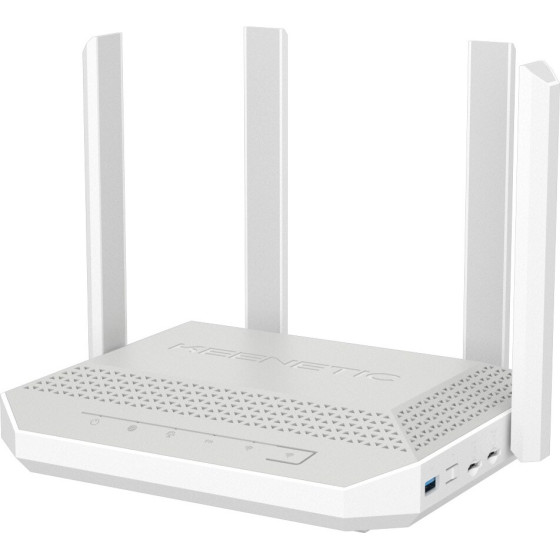

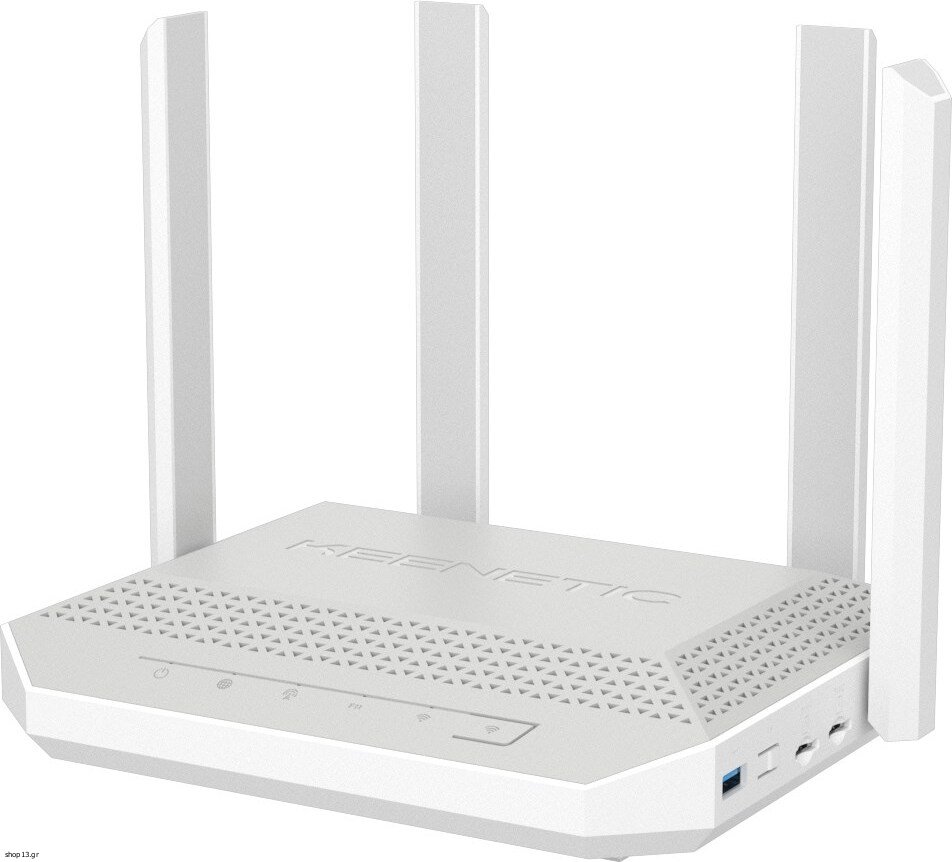

Keenetic Hero 4G+ (KN-2311) - (KN-2312-01-EU)

Features
Processor manufacturer: MediaTek
Flash memory: 256 MB
Processor frequency: 1300 MHz
Internal memory type: DDR3
Processor cores: 2
Processor model: MediaTek MT7981B
Internal memory: 512 MB
Built-in processor: Yes
Firmware upgradeable: Yes
Cloudflare DNS: Yes
AdGuard ad blocker: Yes
WireGuard: Yes

Design
Product type: Tabletop router
Product colour: White, Grey

Power
Power source type: AC
Output current: 2 A
Output voltage: 12 V
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V

Security
Security algorithms: WPA3-Enterprise, WPA-PSK, WEP, WPA2-Enterprise, WPA3-PSK, WPA2-PSK, OWE
Firewall security: SPI
Firewall: Yes
Guest access: Yes
IGMP snooping: Yes
Schedule access: Yes
System event log: Yes
Parental control: Yes
DoS attack prevention: Yes
Network address translation (NAT): Yes
MAC address filtering: Yes

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%

Management features
Quality of Service (QoS) support: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
WPS push button: Yes
Bandwidth control: Yes
Command-line interface (CLI): Yes
Web-based setup wizard: Yes
Cloud-managed: Yes
Backup function: Yes
Traffic statistics: Yes
Captive portal: Yes
MU-MIMO technology: Yes
Number of data streams: 2x2
Direct or cloud access via KeenDNS: Yes
Intelligent Mesh technology: Yes
MIMO: Yes
Web-based management: Yes
HTTPS security for access via KeenDNS: Yes

Weight & dimensions
Weight: 600 g
Width: 217 mm
Height: 45 mm
Depth: 159 mm

Network
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN: Yes
Port forwarding: Yes
Ethernet LAN interface type: Gigabit Ethernet
Policy-based routing: Yes
Built-in FTP server: Yes
Dynamic DNS (DDNS): Yes
VPN server: OpenVPN
Ping check: Yes
Media server: Yes
Internet connection backup: Yes
PPPoE/PPTP/L2TP pass-through: Yes
Routing table: Manual, DHCP
IntelliQoS: Yes
WireGuard throughput: 460 Mbit/s
L2TP/PPTP data rate: 800 Mbit/s
IPoE/PPPoE data rate: 1800 Mbit/s
Support Samba (storage): Yes
Networking standards: IEEE 802.11b, IEEE 802.1Q, IEEE 802.11r, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11h, IEEE 802.11k, IEEE 802.11v
Ethernet LAN data rates: 100, 10, 1000

System requirements
Mobile operating systems supported: Android, iOS

Packaging data
Number of products included: 1 pc(s)

Packaging content
AC adapter included: Yes
Quick start guide: Yes
Cables included: LAN (RJ-45)

Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max): 3000 Mbit/s
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Modulation: OFDMA
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s

Protocols
Supported network protocols: IPoE, PPPoE, PPTP, L2TP, 802.1x
DHCP server: Yes
Universal Plug and Play (UPnP): Yes
IPv4 & IPv6 features: IPv6 SSH, IPv6 Telnet, Dual stack IPv4/IPv6
DHCP client: Yes
UDP-to-HTTP proxy: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB port: Yes
DC-in jack: Yes

Antenna
Antenna gain level (max): 4 dBi
Antennas quantity: 4
Detachable antenna(s): Yes
Antenna design: External
Antenna connector type: SMA

WAN connection
Ethernet WAN: Yes
3G/4G USB modem compatibility: Yes
SIM card slot: Yes
WAN connection type: RJ-45, WISP

Mobile network
3G standards: HSPA+, HSUPA, WCDMA, HSDPA
3G: Yes
Mobile network generation: 4G
4G bands supported: 900, 1800, 2300, 2100, 800, 2600, 850, 2500 MHz
4G standard: LTE-TDD & LTE-FDD
3G bands supported: 850, 2100 MHz, 900
SIM card type: NanoSIM
Short Message Service (SMS): Yes
USSD request support: Yes
4G data rate (max): 300 Mbit/s
Modem chipset: ASR1826


Warranty: Manufacturer warranty 36 months
