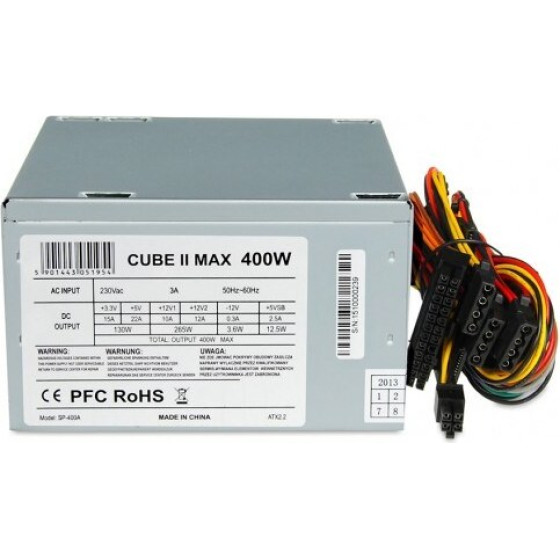

IBOX Cube Ii Power Supply Unit 400 W 20+4 Pin Atx Atx Silver - (ZIC2400W12CMFA)

Technical details
Sustainability certificates: RoHS

Design
Fan location: Side
Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
Max output current (+5Vsb): 2.5 A
AC input frequency: 50 - 60 Hz
Max output current (+5V): 22 A
Power protection features: Overload, Under voltage, Over current, Short circuit, Over voltage
Max output current (+3.3V): 15 A
Max output current (+12V1): 10 A
AC input voltage: 230 V
Power consumption (max): 400 W
Power Factor Correction (PFC) type: Passive
Combined power (-12V): 3.6 W
Max output current (+12V2): 12 A
Input current: 3 A
Combined power (+5Vsb): 12.5 W
Total power: 400 W
Combined power (+5V): 130 W
Combined power (+3.3V): 130 W
Max output current (-12V): 0.3 A

Weight & dimensions
Depth: 85 mm
Width: 140 mm
Height: 150 mm

Performance
ATX version: 2.2
Noise level: 20 dB
Safety: UVP / OVP / SCP / OPP / OCP / OTP
Power supply unit (PSU) form factor: ATX

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 3
Cabling type: Non-Modular
ATX power connector (20+4 pin): Yes
Number of SATA power connectors: 2
Motherboard power connector: 20+4 pin ATX


Warranty: warranty 24 months
