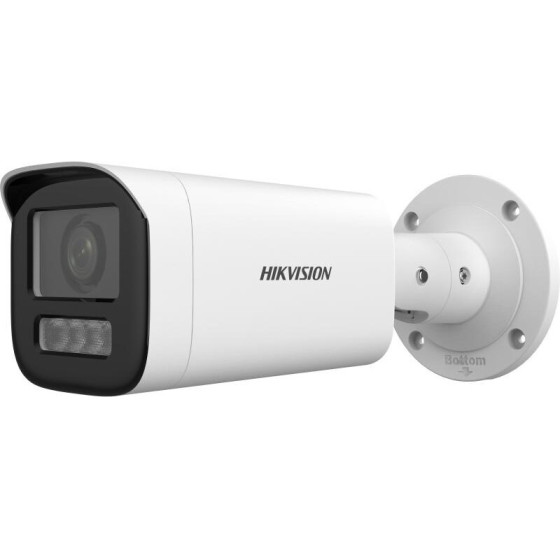

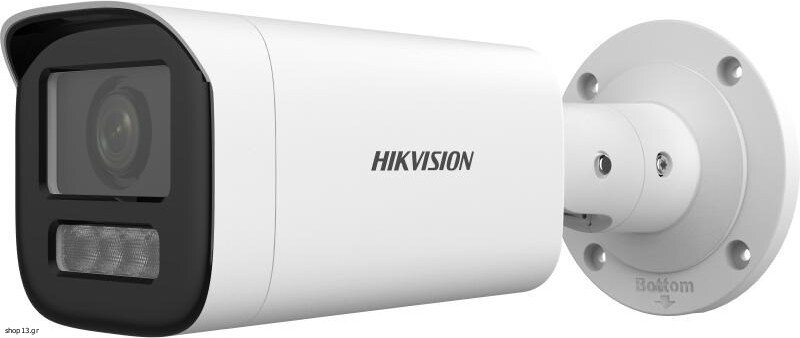

Hikvision Value Series DS-2CD1643G2-LIZU(2.8-12mm)EN Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall - (DS-2CD1643G2-LIZU 2.8-12mm PL)

Design
Form factor: Bullet
Product colour: White
International Protection (IP) code: IP67
Housing material: Metal, Plastic
Protection features: Water resistant, Dust resistant
Mounting type: Wall

Power
Power consumption (max): 10.5 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 12 W
DC output voltage: 12
DC output current: 0.88 A

Security
Audit log: Yes
Digest authentication: Yes
Privacy protection: Yes
Password reset via email: Yes
Digital watermark: Yes
HTTPS encryption: Yes
Mirror: Yes
Password protection: Yes
Video motion detection: Yes
Heartbeat: Yes
Active tampering alarm: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes
Reset button: Yes

Weight & dimensions
Weight: 585 g
Length: 252 mm
Diameter: 10.5 cm

Network
Bluetooth: No
Networking standards: IEEE 802.3af
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Ethernet interface type: Fast Ethernet
Client interoperability: iVMS-4200, Hik-Connect
Wi-Fi: No
Number of simultaneous live view channels: 6 channels
Live view: Yes
User access level: Administrator, Operator, User
Number of users: 32 user(s)

Performance
Connectivity technology: Wired
Built-in light: Yes
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Dynamic range: 120 dB
Languages support: English, Ukrainian
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
Number of languages: 2
Placement supported: Indoor & outdoor

Packaging data
Package width: 315 mm
Package weight: 910 g
Package height: 141 mm
Package depth: 137 mm

Packaging content
Manual: Yes
Number of cameras: 1

Audio
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Audio formats supported: G.722.1, PCM, G.711 μ-law, G.711 A-law, G.726, AAC-LC, MP2L2
Sample rates: 8 - 16 kHz
Bit rate range: 16 - 160 Kbit/s

Storage
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 90°
Camera shutter speed: 1/3 - 1/100000 s
Minimum illumination: 0 lx
Angle of rotation: 360°
Pan range: 0 - 360°
Number of Privacy masking areas: 4
Lens viewing angle, vertical: 51.7 - 16.7°
Lens viewing angle, horizontal: 96.7 - 29.7°
Lens viewing angle, diagonal: 114.3 - 34°

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Number of sensors: 1

Video
Supported graphics resolutions: 640 x 480 (VGA), 1280 x 720 (HD 720), 2560 x 1440, 640 x 360, 1920 x 1080 (HD 1080)
Maximum resolution: 1920 x 1080 pixels
Region of Interest (ROI) encoding: Yes
Back Light Compensation (BLC): Yes
Video formats supported: H.264+, H.265, H.264, H.265+
Bit rate: 32 Kbps - 16 Mbps
Frame rate: 30 fps
Supported video modes: 360p, 720p, 1440p, 480p, 1080p
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Total megapixels: 2 MP
Noise reduction: Yes
Video compression formats: H.264+, H.265+, H.265, H.264
Image quality adjustment: Contrast, Sharpness, Brightness
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Privacy masking: Yes
Video recording: Yes

Night vision
Night vision distance: 50 m
LED type: IR/White
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Detect distance (tele): 198 m
Focal length range: 2.8 - 12 mm
Focus: Motorized
Detect distance (wide): 64 m
Observe distance (wide): 25.4 m
Identify distance (tele): 19.8 m
Number of lenses: 1
Recognize distance (wide): 12.8 m
Maximum aperture number: 1.6
Recognize distance (tele): 39.6 m
Identify distance (wide): 6.4 m
Observe distance (tele): 78.6 m

Sustainability
Compliance certificates: Low Voltage Directive (LVD), Federal Communications Commission (FCC), Electromagnetic Compatibility (EMC), REACH, Industry Canada (IC), CB, WEEE, RCM, BIS, RoHS, CE, UL


Warranty: Manufacturer warranty 24 months
