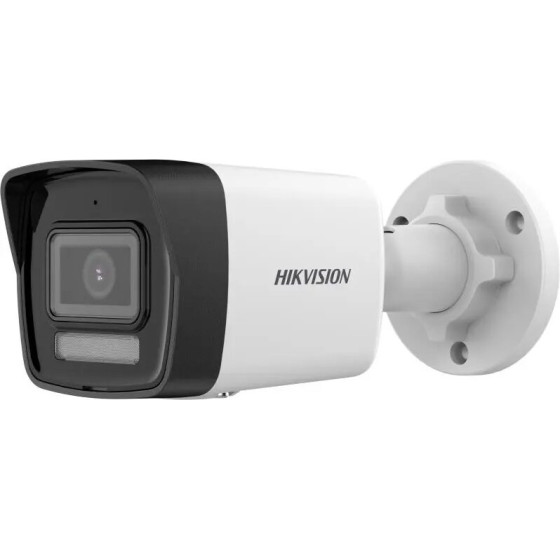

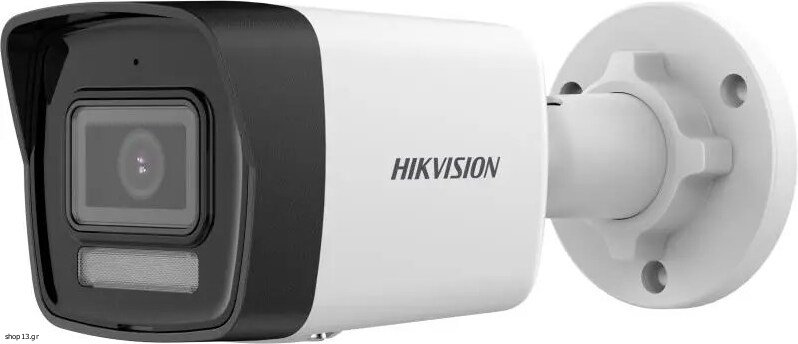

Hikvision Value Series DS-2CD1083G2-LIUF(2.8MM)PL security camera Bullet IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall - (DS-2CD1083G2-LIUF 2.8mm PL)

Design
Housing material: Plastic, Metal
International Protection (IP) code: IP67
Form factor: Bullet
Protection features: Waterproof
Product colour: White
Mounting type: Ceiling/wall

Power
Power consumption (max): 5 W
Power source type: DC, PoE
DC output voltage: 12
DC output current: 0.41 A
Power consumption (Power over Ethernet (PoE)): 6.5 W

Security
Password reset via email: Yes
Video motion detection: Yes
Digital watermark: Yes
Heartbeat: Yes
Audit log: Yes
Active tampering alarm: Yes
Privacy protection: Yes
Mirror: Yes
Digest authentication: Yes
Password protection: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes
Reset button: Yes

Weight & dimensions
Width: 69.1 mm
Height: 66 mm
Length: 170.8 mm
Weight: 285 g

Network
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Bluetooth: No
Wi-Fi: No
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Live view: Yes
Number of users: 32 user(s)
Client interoperability: iVMS-4200, Hik-Connect

Performance
Connectivity technology: Wired
Type: IP security camera
Built-in light: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Languages support: English, Ukrainian
Number of languages: 2
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor

Packaging data
Package depth: 121 mm
Package weight: 481 g
Package height: 118 mm
Package width: 216 mm

Packaging content
Number of cameras: 1

Audio
Sample rates: 8 - 16 kHz
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Voice codecs: G.711ulaw, PCM, G.711alaw, G.726, G.722.1, MP2L2
Bit rate range: 16 - 160 Kbit/s
Audio formats supported: AAC-LC

Storage
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, horizontal: 113°
Lens viewing angle, diagonal: 134°
Lens viewing angle, vertical: 62°
Tilt angle range: 0 - 90°
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Pan range: 0 - 360°
Number of Privacy masking areas: 4

Image sensor
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 3200 x 1800, 1280 x 720 (HD 720), 640 x 480 (VGA), 2688 x 1520, 640 x 360, 3840 x 2160
Bit rate: 32 Kbps - 16 Mbps
Maximum resolution: 3840 x 2160 pixels
Back Light Compensation (BLC): Yes
Region of Interest (ROI) encoding: Yes
Video compression formats: H.264, H.265+, H.265, H.264+, M-JPEG
Image quality adjustment: Sharpness, Saturation, Brightness
Privacy masking: Yes
Total megapixels: 8 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Frame rate: 15 fps

Night vision
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Infra-red wavelength: 850 nm
B/W night vision distance: 30 m

Lens system
Recognize distance: 15 m
Number of lenses: 1
Fixed focal length: 2.8 mm
Maximum aperture number: 2
Observe distance: 31 m
Detect distance: 79 m
Identify distance: 7 m

Sustainability
Compliance certificates: RoHS, CE, CB, REACH, WEEE


Warranty: Manufacturer warranty 24 months
