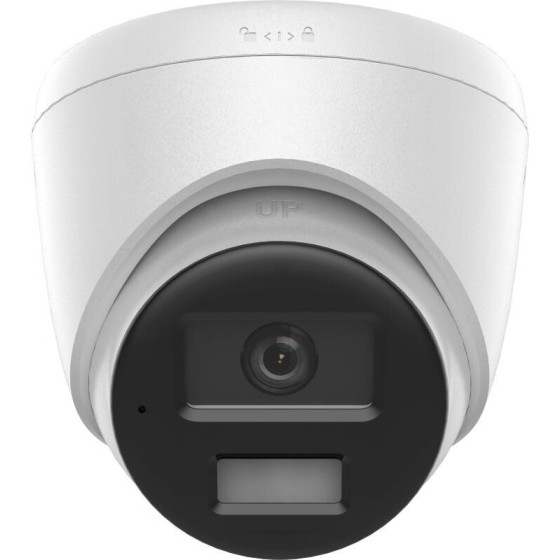

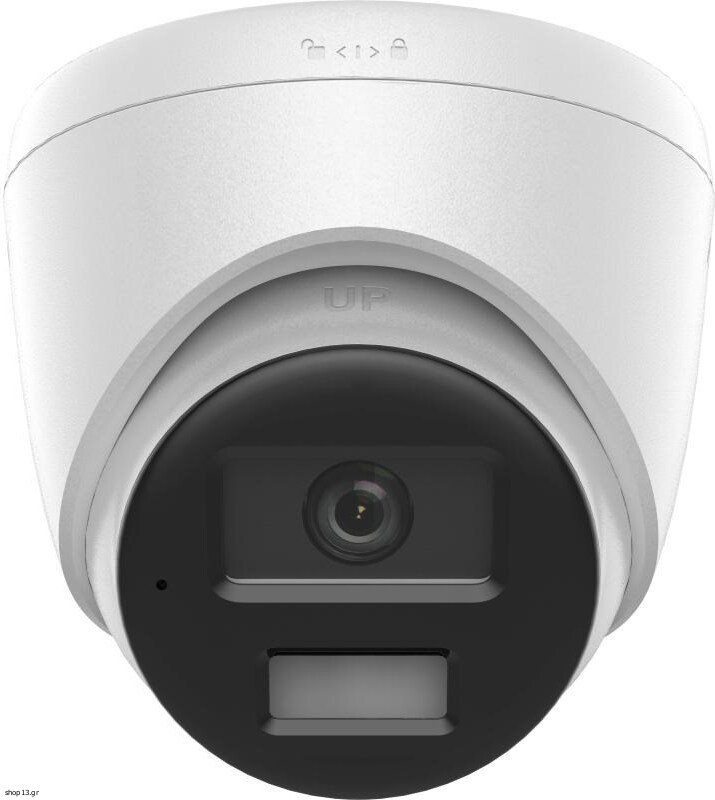

Hikvision Value Series 8 MP Smart Hybrid Light Fixed Turret Network Camera - (DS-2CD1383G2-LIUF/SL 2.8mm PL)

Technical details
Lens mount interface: M12

Design
Mounting type: Ceiling/Wall/Pole
Housing material: Plastic, Metal
Protection features: Water resistant, Dust resistant
International Protection (IP) code: IP67
Product colour: White
Form factor: Turret

Power
Power consumption (Power over Ethernet (PoE)): 9.5 W
DC output current: 0.66 A
DC output voltage: 12
Power source type: DC, PoE
Power consumption (max): 8 W

Security
Audit log: Yes
Video motion detection: Yes
Digital watermark: Yes
Digest authentication: Yes
Password protection: Yes
Password reset via email: Yes
Active tampering alarm: Yes
Mirror: Yes
Heartbeat: Yes

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%

Management features
Reset button: Yes

Weight & dimensions
Height: 102.7 mm
Weight: 385 g
Diameter: 11 cm

Network
Number of simultaneous live view channels: 6 channels
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Bluetooth: No
Networking standards: IEEE 802.3af

Performance
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Number of languages: 2
Languages support: English, Ukrainian
Day/night mode: Yes
Dynamic range: 120 dB
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Type: IP security camera
Built-in light: Yes

Packaging data
Package height: 141 mm
Package width: 150 mm
Package weight: 586 g
Package depth: 150 mm

Packaging content
Number of cameras: 1

Audio
Bit rate range: 16 - 160 Kbit/s
Sample rates: 8 - 16 kHz
Built-in speaker(s): Yes
Audio formats supported: G.722.1, PCM, AAC-LC, G.726, MP2L2, G.711
Signal-to-Noise Ratio (SNR): 52 dB
Audio system: 2-way
Built-in microphone: Yes

Storage
Built-in HDD: No
Maximum memory card size: 512 GB
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Card reader integrated: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Number of Privacy masking areas: 4
Lens viewing angle, horizontal: 113°
Lens viewing angle, vertical: 62°
Lens viewing angle, diagonal: 134°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Minimum illumination: 0 lx
Tilt angle range: 0 - 75°
Pan range: 0 - 360°

Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes

Video
Video compression formats: H.265+, H.264, H.265, H.264+, M-JPEG
Image quality adjustment: Saturation, Brightness, Sharpness, Contrast
Bit rate: 32 Kbps - 16 Mbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Supported graphics resolutions: 640 x 480 (VGA), 640 x 360, 3840 x 2160, 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 1280 x 720 (HD 720)
Region of Interest (ROI) encoding: Yes
Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Noise reduction technology: 3D noise reduction
Noise reduction: Yes

Night vision
Infra-red wavelength: 850 nm
Night vision: Yes
Night vision distance: 30 m
LED type: IR

Lens system
Number of lenses: 1
Identify distance: 7 m
Recognize distance: 15 m
Maximum aperture number: 2
Detect distance: 79 m
Fixed focal length: 2.8 mm
Observe distance: 31 m

Sustainability
Compliance certificates: BIS, REACH, RoHS, CE, UL, Electromagnetic Compatibility (EMC), CB, Low Voltage Directive (LVD), WEEE, RCM


Warranty: Manufacturer warranty 36 months
