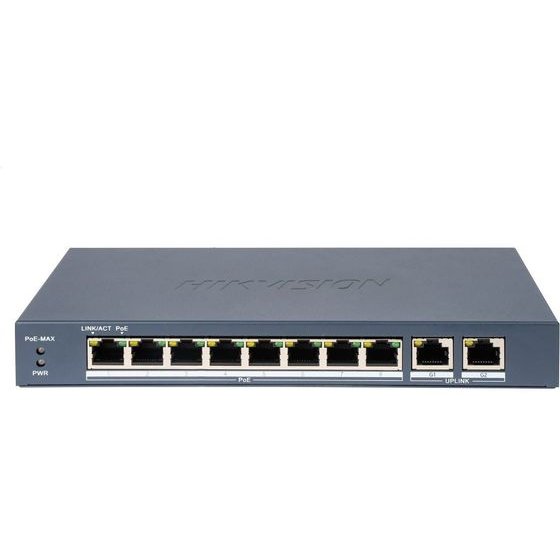

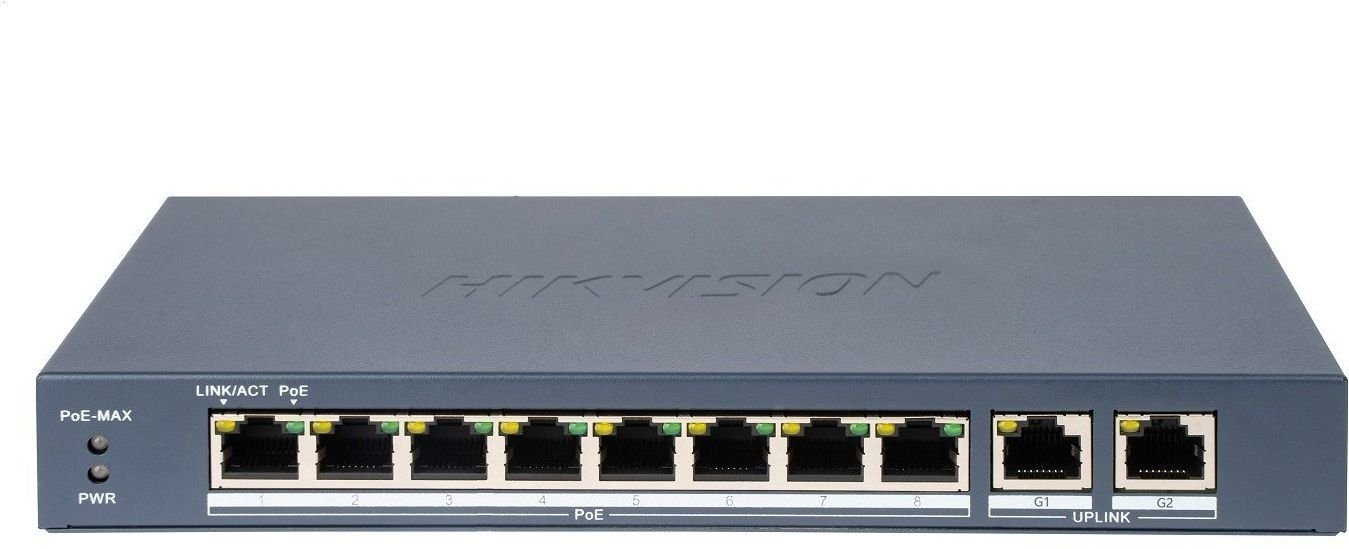

Hikvision Switch - (DS-3E0310P-E/M(B))

Design
Mounting style: On the wall or on a desk
Housing material: Metal

Power
Power consumption (idle): 5 W
Input current: 1.6 A
Power consumption (max): 86 W
DC input voltage: 54 V

Operational conditions
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions
Gross weight inner carton: 1.2 kg
Height: 27.6 mm
Net weight inner carton: 0,555 kg
Depth: 108.5 mm
Width: 217.6 mm

Network
Auto MDI/MDI-X: Yes

Certificates
Sustainability certificates: REACH, WEEE

Ports & interfaces
PoE Port: 8*10/100Mbps
Basic switching RJ-45 Ethernet ports quantity: 2

Data transmission
Size of MAC address table: 8000
Packet forwarding rate: 41.66 million per second
Storage drive buffer size: 4 MB
Switching capacity: 2 Gbit/s

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 80 W
Power over Ethernet (PoE): Yes

Safety warning
Warnings: Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Ensure the unit is adequately ventilated during operation.

Mounting
Mounting options: Tabletop, Wall


Warranty: Manufacturer warranty 36 months
