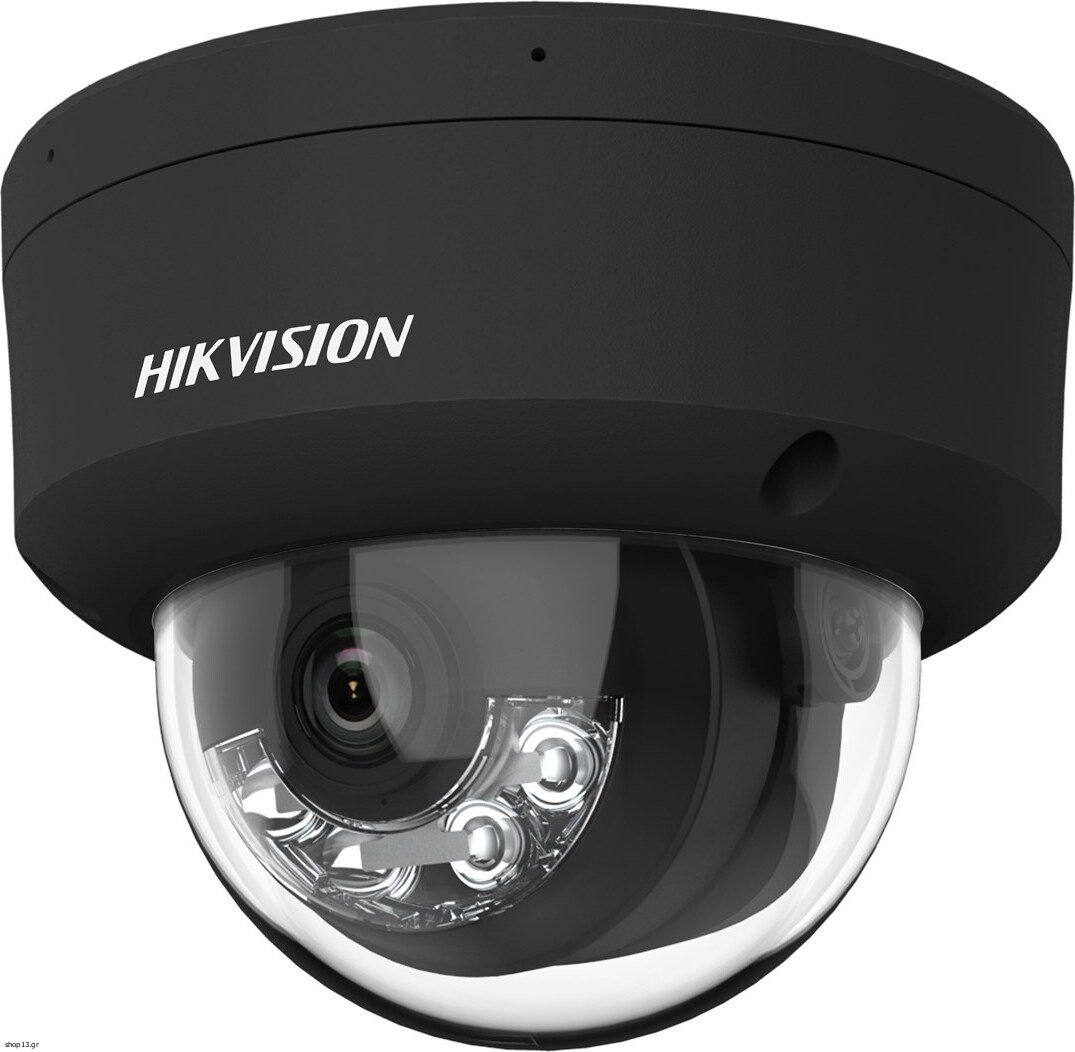

Hikvision security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall - (DS-2CD2143G2-LIS2U(2.8mm)(BLACK)

Design
Product colour: Black
Form factor: Dome
Protection features: Vandal proof, Water resistant, Dust resistant
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Housing material: Aluminium
IK code: IK10

Power
Power source type: DC, PoE
Power consumption (max): 7.2 W
DC output voltage: 12
DC output current: 0.6 A
Power consumption (Power over Ethernet (PoE)): 8.5 W

Security
Security algorithms: TLS
Audit log: Yes
Heartbeat: Yes
IP address filtering: Yes
Password protection: Yes
HTTPS encryption: Yes
Mirror: Yes
Alarm input channels: 1
Video motion detection: Yes
Active tampering alarm: Yes
Alarm output channels: 1
Password reset via email: Yes
Digest authentication: Yes
Pixel counter: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Reset button: Yes
Web browser: Yes
Behavior analysis: Line crossing detection

Weight & dimensions
Weight: 600 g
Diameter: 12.2 cm
Height: 97.6 mm

Network
Networking standards: IEEE 802.3af
Bluetooth: No
Ethernet LAN: Yes
Wi-Fi: No
Number of users: 32 user(s)
Number of simultaneous live view channels: 6 channels
Live view: Yes
Ethernet interface type: Fast Ethernet
User access level: Administrator, Operator, User

Performance
Connectivity technology: Wired
Type: IP security camera
Alarm input/output: Yes
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Languages support: Multi
Wide Dynamic Range (WDR): Yes
Number of languages: 33
Day/night mode: Yes
Placement supported: Indoor & outdoor

Packaging data
Package weight: 830 g
Package width: 150 mm
Package height: 141 mm
Package depth: 150 mm

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Audio output channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 52 dB
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio input channels: 1.0 channels
Sample rates: 8 - 48 kHz
Bit rate range: 32 - 320 Kbit/s

Storage
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Card reader integrated: Yes
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Number of Privacy masking areas: 8
Minimum illumination: 0 lx
Angle of rotation: 355°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 355°
Lens viewing angle, horizontal: 104°
Lens viewing angle, diagonal: 112°
Lens viewing angle, vertical: 57°

Image sensor
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Sensor type: CMOS
Number of sensors: 1

Video
Supported graphics resolutions: 1280 x 720 (HD 720), 2688 x 1520, 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080)
Maximum resolution: 1920 x 1080 pixels
Video compression formats: H.265+, H.265, H.264+, H.264
Frame rate: 30 fps
Region of Interest (ROI) encoding: Yes
Bit rate: 32 Kbps - 8 Mbps
Noise reduction technology: 3D noise reduction
Highlight Compensation (HLC): Yes
Noise reduction: Yes
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels: 4 MP
Gain control type: Auto
Video streaming: Yes

Night vision
Infra-red wavelength: 850 nm
LED type: IR/White
Night vision distance: 30 m
Night vision: Yes

Lens system
Recognize distance: 12 m
Fixed focal length: 2.8 mm
Detect distance: 63 m
Identify distance: 6 m
Number of lenses: 1
Observe distance: 25 m
Maximum aperture number: 1.6


Warranty: Manufacturer warranty 36 months
