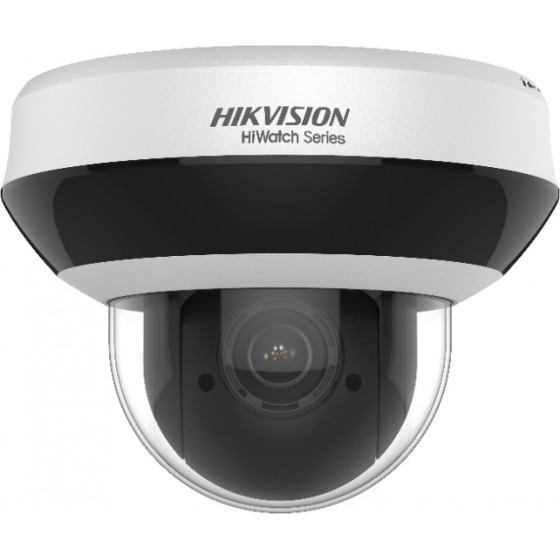

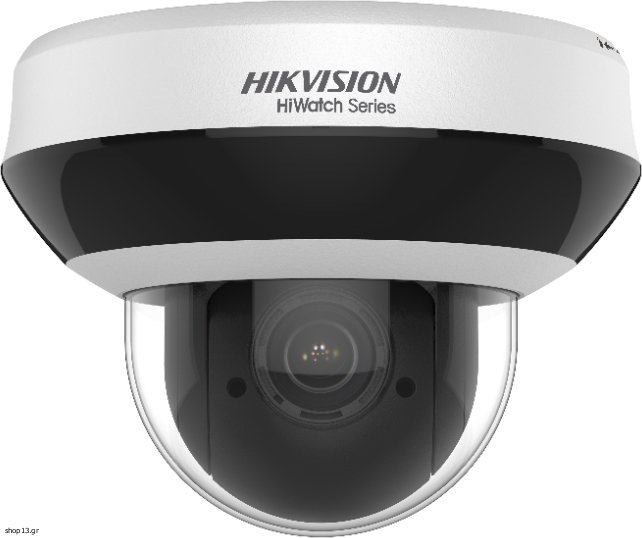

Hikvision Ptz Ip κάμερα Hiwatch 2.8-12mm 4MP, IP67, Poe - (HWP-N2404IH-DE3)

HIKVISION PTZ IP κάμερα HiWatch HWP-N2404IH-DE3, 2.8-12mm 4MP, IP67, PoE
Δικτυακή κάμερα PoE IP της σειράς HiWatch από την HIKVISION, με varifocal φακό 2.8-12mm και ανάλυση 2560x1440p με αισθητήρα 4MP. Τα βίντεο που καταγράφονται αποθηκεύονται με κωδικοποίηση Η.265+ ενώ το εύρος υπερύθρων IR της κάμερας φτάνει έως 20m. Το σώμα της κάμερας είναι κατασκευασμένο από ανθεκτικό μεταλλικό και πλαστικό υλικό με αδιάβροχη προστασία IP67 και αντοχή στα χτυπήματα IK10. Υποστηρίζει καταγραφή σε κάρτα micro SD έως 256GB (δεν συμπεριλαμβάνεται).
-4MP 1/3" progressive scan CMOS
-2560 x 1440p ανάλυση
-varifocal φακός 2.8-12mm, 4x optical zoom, 16x digital zoom
-κωδικοποίηση Η.265+
-εύρος υπερύθρων IR έως 20m
-υποστηρίζει καταγραφή σε κάρτα micro SD έως 256GB
-ανθεκτικό σώμα με προστασία IP67 και IK10
-ιδανική για εσωτερική και εξωτερική χρήση
-3D DNR, 120 dB WDR, EIS, regional exposure, regional focus
-με ενσωματωμένο μικρόφωνο
-DC12V & PoE τροφοδοσία
Τεχνικά χαρακτηριστικά
Image Sensor: 1/3" progressive scan CMOS
Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp AGC Auto/Manual
Day & Night: IR Cut Filter
Shutter Time: 50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s
Digital Zoom: 16x
Privacy Mask: 24 programmable privacy masks
Focus Mode: Auto/Semi-automatic/Manual
WDR: 120 dB WDR
Focal Length: 2.8 mm to 12 mm, 4x optical zoom
Zoom Speed: Approx. 2 s (optical lens, wide-tele)
Field of View: Horizontal field of view: 100° to 33° (Wide-Tele), Vertical field of view: 53° to 18° (Wide-Tele), Diagonal field of view: 119° to 37.5° (Wide-Tele)
Working Distance: 10 mm to 1500 mm (wide-tele)
Aperture Range: F1.6 to F2.7
IR Distance: 20 m
Smart IR: Support
Pan and Tilt Range: Pan:0° to 330°, Tilt: 0° to 90°
Pan and Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
Proportional Zoom: Support
Number of Preset: 300
Power-off Memory: Support
Video Compression: H.265+/H.265/H.264+/H.264
H.264 Type: Baseline Profile/Main Profile/High Profile
H.264+: Support
H.265 Type: Main Profile
H.265+: Support
Video Bitrate: 32 Kbps to 16384 Kbps
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVC: Support
Basic Event Detection: Motion Detection, Video Tampering Detection, Exception
Smart Event Detection: Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
ROI encoding: Main stream, sub-stream, and third stream respectively support two fixed areas.
Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
Max. Image Resolution: 2560 x 1440
Stream: Support three steams
Main Stream: 50Hz: 25fps (2560x1440, 2048x1536, 1920x1080, 1280x960, 1280x720), 60Hz: 24fps (2560x1440), 30fps (2048x1536, 1920x1080, 1280x960, 1280x720)
Sub-Stream: 50Hz: 25fps (704x576, 640x480, 352x288), 60Hz: 30fps (704x480, 640x480, 352x240)
Third Stream: 50Hz: 25fps (1280x720, 704x576, 640x480, 352x288), 60Hz: 30fps (1280x720, 704x480, 640x480, 352x240)
Image Enhancement: 3D DNR, HLC, EIS, Regional Exposure, Regional Focus
Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
Simultaneous Live View: Up to 20 channels
User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
Client: iVMS-4200, Hik-Connect
Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Mini SD Memory Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Audio Input: 1-ch
Audio Output: 1-ch
Network Interface: 1 RJ45 10 M/100 M Ethernet, PoE
Power: 12 VDC & PoE, Max.: 12 W (Max. 3.9 W for IR)
Working Temperature: -20°C to 60°C
Working Humidity: ? 90%
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm x 101.7 mm
Weight: Approx. 0.53 kg
Περιεχόμενα συσκευασίας
Network PTZ camera
Βίδες και ούπα
Εγχειρίδιο χρήσης




Κωδικός είδους:HWP-N2404IH-DE3

Κατασκευαστής:HIKVISION

Εγγύηση:24 μήνες

Διαστάσεις Συσκευασίας:16 x 16.5 x 15.5 cm

Βάρος Συσκευασίας:0.76 Kg

Τύπος συσκευασίας:Retail
