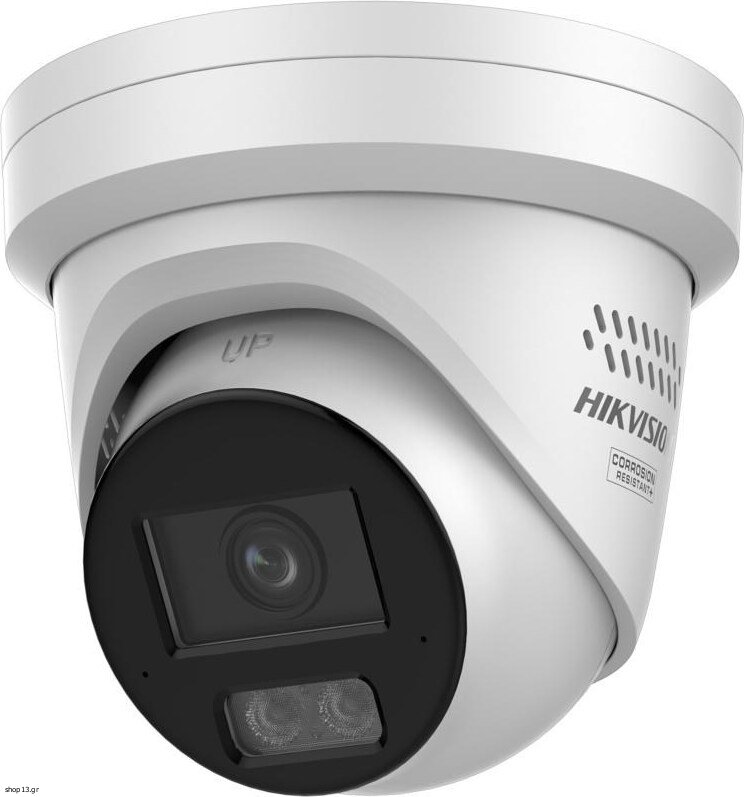

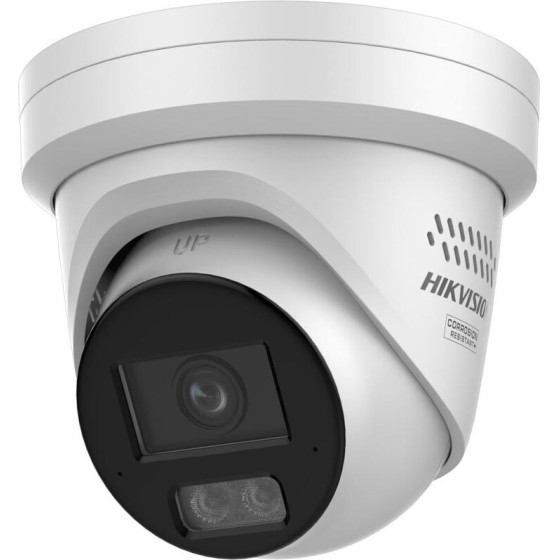

Hikvision Pro Series with ColorVu DS-2CD2347G3-LIS2UY/SL(2.8MM) security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling - (DS-2CD2347G3-LIS2UY/SL 2.8mm PL)

Design
Form factor: Turret
Product colour: White
International Protection (IP) code: IP67
Housing material: Metal
Mounting type: Ceiling

Power
Power consumption (max): 15.5 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 17 W
DC output current: 1.29 A
DC output voltage: 12

Security
Automatic Network Replenishment (ANR): Yes
Flash log: Yes
Audit log: Yes
Network access storage (NAS): Yes
Password reset via email: Yes
Pixel counter: Yes
Digest authentication: Yes
Anti-flicker: Yes
Video motion detection: Yes
Mirror: Yes
Heartbeat: Yes
Human and vehicle targets classification: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Management features
Management software: iVMS-4200,Hik-Connect,Hik-Central
Cloud-managed: Yes

Weight & dimensions
Height: 115.4 mm
Diameter: 13.8 cm
Weight: 820 g

Network
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Bluetooth: No
Wi-Fi: No
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels
Live view: Yes
Number of users: 32 user(s)

Performance
Type: IP security camera
Built-in light: Yes
Connectivity technology: Wired
Placement supported: Indoor & outdoor
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Dynamic range: 130 dB

Packaging data
Package depth: 170 mm
Package weight: 1.2 kg
Package height: 160 mm
Package width: 170 mm

Packaging content
Number of cameras: 1
Manual: Yes

Audio
Built-in microphone: Yes
Audio formats supported: PCM, MP2L2, G.722.1, G.726, MP3, AAC-LC, G.711
Signal-to-Noise Ratio (SNR): 52 dB
Built-in speaker(s): Yes
Sample rates: 8 - 48 kHz
Bit rate range: 8 - 320 Kbit/s

Storage
Card reader integrated: Yes
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Built-in HDD: No
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Number of Privacy masking areas: 4
Tilt angle range: 0 - 75°
Minimum illumination: 0 lx
Angle of rotation: 360°
Pan range: 0 - 360°
Camera shutter speed: 1 - 1/100000 s
Lens viewing angle, horizontal: 111.1°
Lens viewing angle, diagonal: 138.5°
Lens viewing angle, vertical: 57.6°

Image sensor
Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS

Video
Digital Wide Dynamic Range (DWDR): Yes
Total megapixels: 4 MP
Video formats supported: H.264+, H.264, H.265, H.265+
Bit rate: 32 Kbps to 8 Mbps
Maximum resolution: 2688 x 1520 pixels
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Supported graphics resolutions: 2688 x 1520
Supported video modes: 1520p
Frame rate: 30 fps
Video compression formats: H.264, H.265, H.265+, H.264+
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Smart IR: Yes
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Video recording: Yes

Night vision
LED type: IR/White
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Observe distance: 24 m
Fixed focal length: 2.8 mm
Number of lenses: 1
Maximum aperture number: 1
Fixed focus: Yes
Detect distance: 61 m
Identify distance: 6 m
Recognize distance: 12 m


Warranty: Manufacturer warranty 24 months
