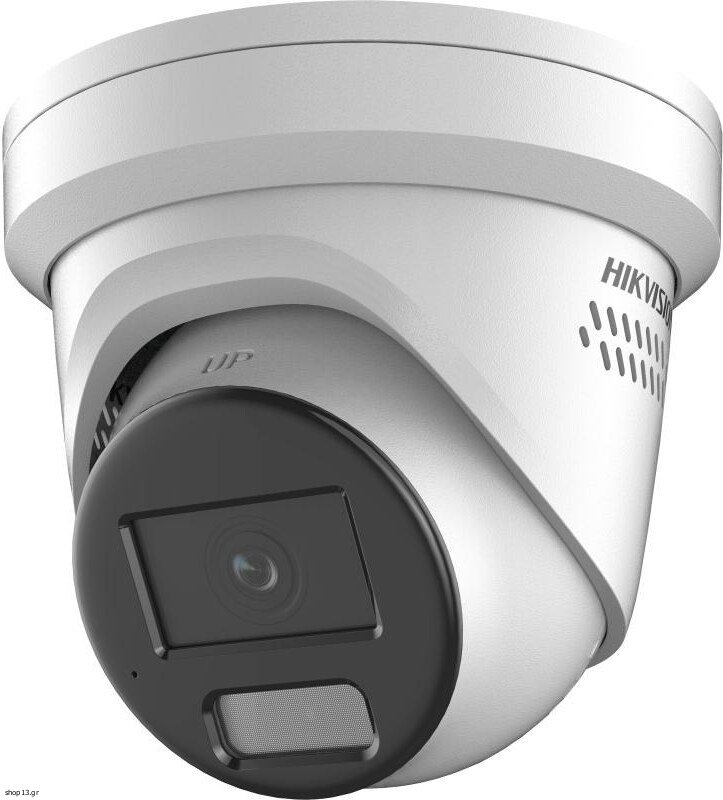

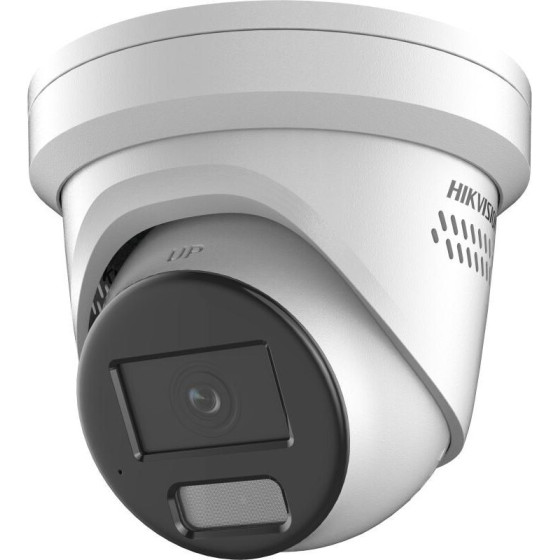

Hikvision Pro Series with ColorVu DS-2CD2347G2H-LISU/SL(2.8MM)(EF) security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling - (DS-2CD2347G2H-LISU/SL (2.8mm))
[Κωδικός : 777851]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Technical details
Output impedance: 100 Ω
Lens mount interface: M16
Iris: Yes
Design
Product colour: White
Form factor: Turret
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP67
Housing material: Metal
Mounting type: Ceiling
Power
Power source type: DC, PoE
Power consumption (max): 9 W
DC output current: 0.75 A
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 10.5 W
Security
Security algorithms: EAP-TLS, EAP-MD5, EAP-LEAP
Human and vehicle targets classification: Yes
Automatic Network Replenishment (ANR): Yes
Network access storage (NAS): Yes
Audit log: Yes
Digest authentication: Yes
Password reset via email: Yes
Pixel counter: Yes
Alarm input channels: 1
Privacy protection: Yes
Alarm output channels: 1
IP address filtering: Yes
Digital watermark: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Password protection: Yes
Active tampering alarm: Yes
Heartbeat: Yes
Mirror: Yes
Operational conditions
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Web-based management: Yes
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Weight & dimensions
Weight: 820 g
Diameter: 13.8 cm
Height: 115.4 mm
Network
Bluetooth: No
Quality of Service (QoS) support: Yes
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Number of users: 32 user(s)
Live view: Yes
Performance
Built-in light: Yes
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Number of languages: 33
Alarm input/output: Yes
Placement supported: Indoor & outdoor
Dynamic range: 130 dB
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Languages support: Multi
Packaging data
Package weight: 1.32 kg
Package width: 170 mm
Package depth: 170 mm
Package height: 160 mm
Packaging content
Number of cameras: 1
Audio
Audio output channels: 1.0 channels
Built-in microphone: Yes
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Audio formats supported: G.726, G.722.1, MP3, AAC-LC, MP2L2, PCM, G.711
Audio input channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 52 dB
Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in HDD: No
Maximum memory card size: 512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Terminal block port: Yes
Camera
Tilt angle range: 0 - 75°
Number of Privacy masking areas: 4
Lens viewing angle, horizontal: 111.1°
Lens viewing angle, diagonal: 138.5°
Lens viewing angle, vertical: 57.6°
Angle of rotation: 360°
Pan range: 0 - 360°
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Number of sensors: 1
Sensor type: CMOS
Video
Supported graphics resolutions: 2688 x 1520, 1280 x 720 (HD 720), 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080)
Maximum resolution: 2688 x 1520 pixels
Bit rate: 32 Kbps - 8 Mbps
Total megapixels: 4 MP
Noise reduction: Yes
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Video streaming: Yes
Video compression formats: H.265+, H.264+, H.265, H.264, M-JPEG
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Image quality adjustment: Saturation, Brightness, Contrast, Sharpness
Night vision
LED type: IR/White
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes
Lens system
Fixed focus: Yes
Number of lenses: 1
Maximum aperture number: 1
Detect distance: 61 m
Identify distance: 6 m
Recognize distance: 12 m
Fixed focal length: 2.8 mm
Observe distance: 24 m
Sustainability
Compliance certificates: KC, CB, RoHS, CE
Sustainability compliance: Yes
Warranty: Manufacturer warranty 36 months
Output impedance: 100 Ω
Lens mount interface: M16
Iris: Yes
Design
Product colour: White
Form factor: Turret
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP67
Housing material: Metal
Mounting type: Ceiling
Power
Power source type: DC, PoE
Power consumption (max): 9 W
DC output current: 0.75 A
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 10.5 W
Security
Security algorithms: EAP-TLS, EAP-MD5, EAP-LEAP
Human and vehicle targets classification: Yes
Automatic Network Replenishment (ANR): Yes
Network access storage (NAS): Yes
Audit log: Yes
Digest authentication: Yes
Password reset via email: Yes
Pixel counter: Yes
Alarm input channels: 1
Privacy protection: Yes
Alarm output channels: 1
IP address filtering: Yes
Digital watermark: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Password protection: Yes
Active tampering alarm: Yes
Heartbeat: Yes
Mirror: Yes
Operational conditions
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Management features
Web-based management: Yes
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Weight & dimensions
Weight: 820 g
Diameter: 13.8 cm
Height: 115.4 mm
Network
Bluetooth: No
Quality of Service (QoS) support: Yes
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Number of users: 32 user(s)
Live view: Yes
Performance
Built-in light: Yes
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Number of languages: 33
Alarm input/output: Yes
Placement supported: Indoor & outdoor
Dynamic range: 130 dB
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Languages support: Multi
Packaging data
Package weight: 1.32 kg
Package width: 170 mm
Package depth: 170 mm
Package height: 160 mm
Packaging content
Number of cameras: 1
Audio
Audio output channels: 1.0 channels
Built-in microphone: Yes
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Audio formats supported: G.726, G.722.1, MP3, AAC-LC, MP2L2, PCM, G.711
Audio input channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 52 dB
Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in HDD: No
Maximum memory card size: 512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Terminal block port: Yes
Camera
Tilt angle range: 0 - 75°
Number of Privacy masking areas: 4
Lens viewing angle, horizontal: 111.1°
Lens viewing angle, diagonal: 138.5°
Lens viewing angle, vertical: 57.6°
Angle of rotation: 360°
Pan range: 0 - 360°
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Number of sensors: 1
Sensor type: CMOS
Video
Supported graphics resolutions: 2688 x 1520, 1280 x 720 (HD 720), 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080)
Maximum resolution: 2688 x 1520 pixels
Bit rate: 32 Kbps - 8 Mbps
Total megapixels: 4 MP
Noise reduction: Yes
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Video streaming: Yes
Video compression formats: H.265+, H.264+, H.265, H.264, M-JPEG
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Image quality adjustment: Saturation, Brightness, Contrast, Sharpness
Night vision
LED type: IR/White
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes
Lens system
Fixed focus: Yes
Number of lenses: 1
Maximum aperture number: 1
Detect distance: 61 m
Identify distance: 6 m
Recognize distance: 12 m
Fixed focal length: 2.8 mm
Observe distance: 24 m
Sustainability
Compliance certificates: KC, CB, RoHS, CE
Sustainability compliance: Yes
Warranty: Manufacturer warranty 36 months
