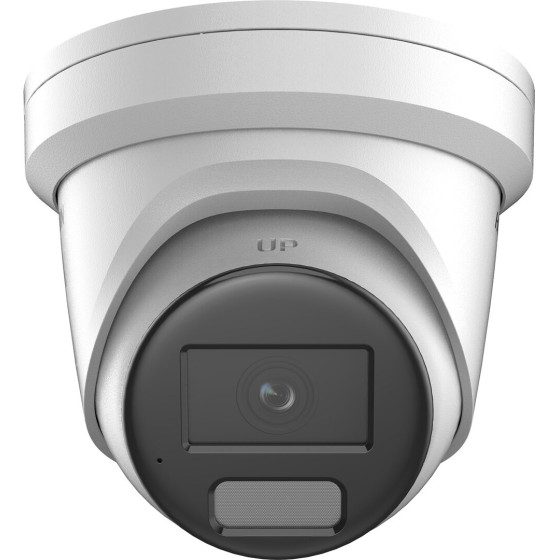

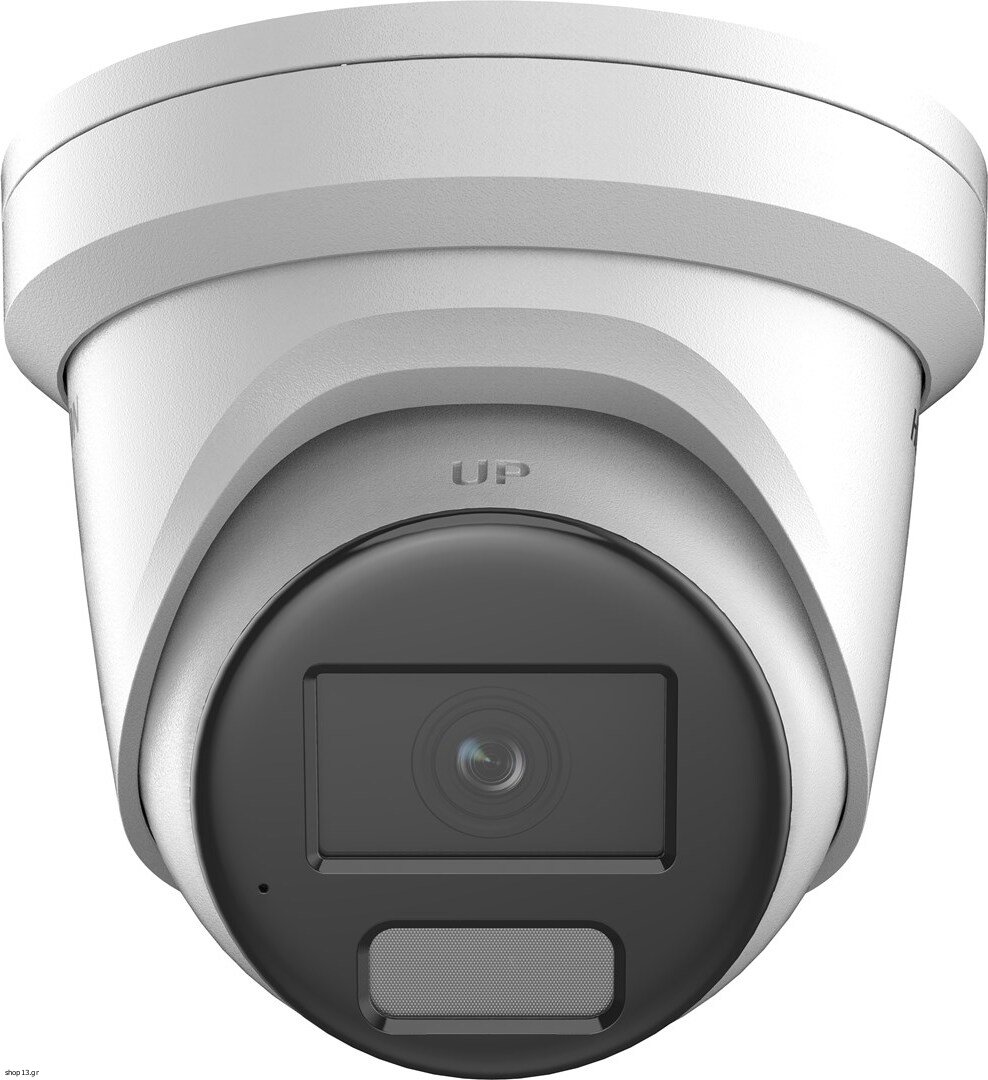

Hikvision Pro Series with AcuSense security camera Turret IP security camera Outdoor 3200 x 1800 pixels Ceiling/wall - (DS-2CD2366G2H-IU(2.8mm))

Technical details
Lens mount interface: M12

Design
Product colour: White
Form factor: Turret
Protection features: Dust resistant, Water resistant
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling/wall

Power
Power source type: DC, PoE
Power consumption (max): 6.5 W
DC output current: 0.54 A
Power consumption (Power over Ethernet (PoE)): 8 W
DC output voltage: 12

Security
Security algorithms: EAP-TLS, EAP-LEAP, EAP-MD5
Network access storage (NAS): Yes
Automatic Network Replenishment (ANR): Yes
Audit log: Yes
Pixel counter: Yes
Password reset via email: Yes
Mirror: Yes
HTTPS encryption: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Digest authentication: Yes
Video motion detection: Yes
Heartbeat: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Digital watermark: Yes
Password protection: Yes
Human and vehicle targets classification: Yes
Privacy protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Reset button: Yes
Web-based management: Yes
Behavior analysis: Intrusion detection, Line crossing detection

Weight & dimensions
Weight: 770 g
Height: 115.4 mm
Diameter: 13.8 cm

Network
Networking standards: IEEE 802.3af
Bluetooth: No
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User
Quality of Service (QoS) support: Yes
Number of users: 32 user(s)
Live view: Yes
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Wi-Fi: No

Performance
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Languages support: Multi
Placement supported: Outdoor
Dynamic range: 120 dB
Number of languages: 33

Packaging data
Package weight: 1.04 kg
Package width: 170 mm
Package height: 160 mm
Package depth: 170 mm

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Audio formats supported: G.726, G.711 μ-law, G.711 A-law, AAC-LC, MP3, MP2L2, G.722.1, PCM
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz

Storage
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Number of Privacy masking areas: 4
Lens viewing angle, horizontal: 114.8°
Lens viewing angle, diagonal: 143.5°
Minimum illumination: 0 lx
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Lens viewing angle, vertical: 60°

Other features
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Image sensor
Number of sensors: 1
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Progressive scan: Yes
Sensor type: CMOS

Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 3200 x 1800, 2688 x 1520, 640 x 360, 640 x 480 (VGA)
Maximum resolution: 3200 x 1800 pixels
Bit rate: 32 Kbps - 16 Mbps
Video compression formats: H.264, H.265+, H.264+, H.265, M-JPEG
Region of Interest (ROI) encoding: Yes
Total megapixels: 6 MP
Image quality adjustment: Saturation, Sharpness, Contrast, Brightness
Frame rate: 30 fps
Video streaming: Yes
Highlight Compensation (HLC): Yes
Privacy masking: Yes
Back Light Compensation (BLC): Yes
Video recording: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Smart IR: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Night vision
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Observe distance: 25 m
Maximum aperture number: 1
Fixed focal length: 2.8 mm
Number of lenses: 1
Identify distance: 6 m
Detect distance: 64 m
Recognize distance: 12 m

Sustainability
Compliance certificates: RoHS, CE, UL, CB, Low Voltage Directive (LVD)


Warranty: Manufacturer warranty 24 months
