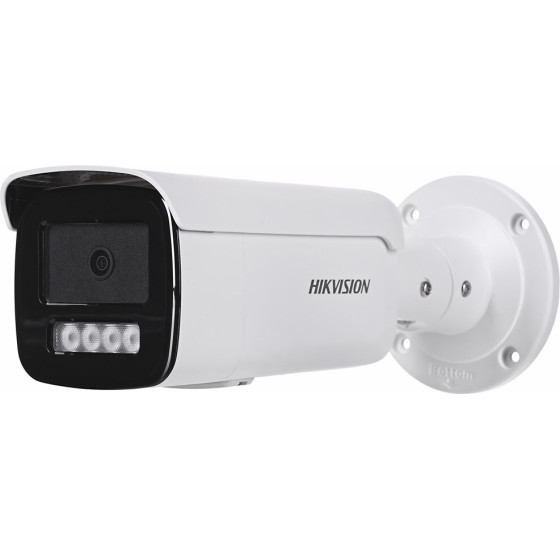

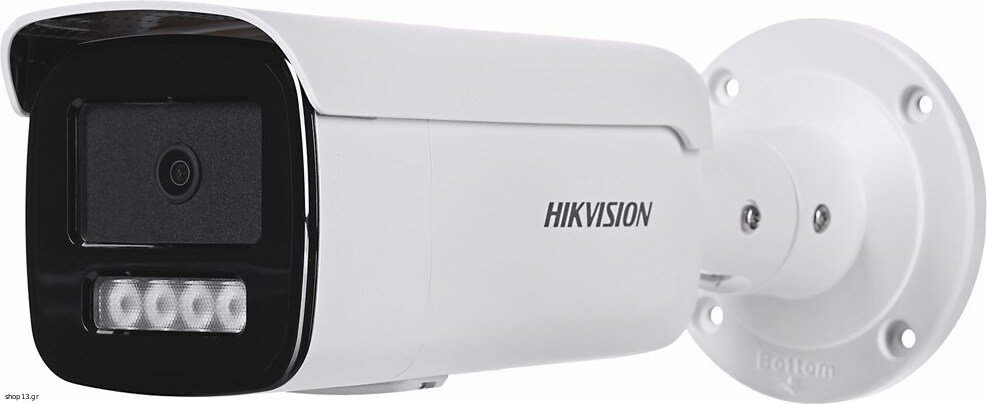

Hikvision Pro Series with AcuSense security camera Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall - (DS-2CD2T43G2-4LI(2.8mm))

Design
Product colour: White
International Protection (IP) code: IP67
IK code: IK10
Form factor: Bullet
Protection features: Waterproof
Mounting type: Ceiling/wall
Housing material: Metal

Power
Power consumption (max): 10 W
Power source type: DC, PoE
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 11 W
DC output current: 0.83 A

Security
Automatic Network Replenishment (ANR): Yes
Flash log: Yes
Audit log: Yes
Network access storage (NAS): Yes
Privacy protection: Yes
Security algorithms: HTTPS, TLS
Digest authentication: Yes
Human and vehicle targets classification: Yes
Mirror: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Heartbeat: Yes
Password protection: Yes
Password reset via email: Yes
Pixel counter: Yes

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Operating temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes
Reset button: Yes
Behavior analysis: Line crossing detection
Web browser: Yes

Weight & dimensions
Height: 88.7 mm
Length: 286.7 mm
Weight: 1.11 kg
Width: 93.1 mm

Network
Bluetooth: No
Networking standards: IEEE 802.1x, IEEE 802.3af
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Live view: Yes
Number of users: 32 user(s)
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Number of simultaneous live view channels: 6 channels
User access level: Administrator, Operator, User

Performance
Connectivity technology: Wired
Built-in light: Yes
Dynamic range: 120 dB
Number of languages: 33
Languages support: Multi
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor

Packaging data
Package depth: 156 mm
Package height: 155 mm
Package weight: 1.64 kg
Package width: 386 mm

Packaging content
Number of cameras: 1

Audio
Signal-to-Noise Ratio (SNR): 52 dB

Storage
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Card reader integrated: Yes
Built-in HDD: No
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Number of Privacy masking areas: 8
Tilt angle range: 0 - 90°
Lens viewing angle, vertical: 57°
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Angle of rotation: 360°
Lens viewing angle, diagonal: 122°
Lens viewing angle, horizontal: 104°

Other features
Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Image sensor
Progressive scan: Yes
Sensor type: CMOS
Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")

Video
Maximum resolution: 2688 x 1520 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 640 x 480 (VGA), 2688 x 1520, 640 x 360, 1280 x 720 (HD 720)
Bit rate: 32 Kbps - 8 Mbps
Video compression formats: H.265+, H.265, H.264+, H.264, M-JPEG
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Gain control type: Auto
Video streaming: Yes
Privacy masking: Yes
Noise reduction technology: 3D noise reduction
Video recording: Yes
Back Light Compensation (BLC): Yes
Frame rate: 30 fps
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP

Night vision
Night vision distance: 80 m
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR/White

Lens system
Number of lenses: 1
Maximum aperture number: 1.6
Observe distance: 25 m
Identify distance: 6 m
Recognize distance: 12 m
Fixed focal length: 2.8 mm
Detect distance: 63 m

Sustainability
Compliance certificates: Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS, CE, WEEE, REACH


Warranty: Manufacturer warranty 24 months
