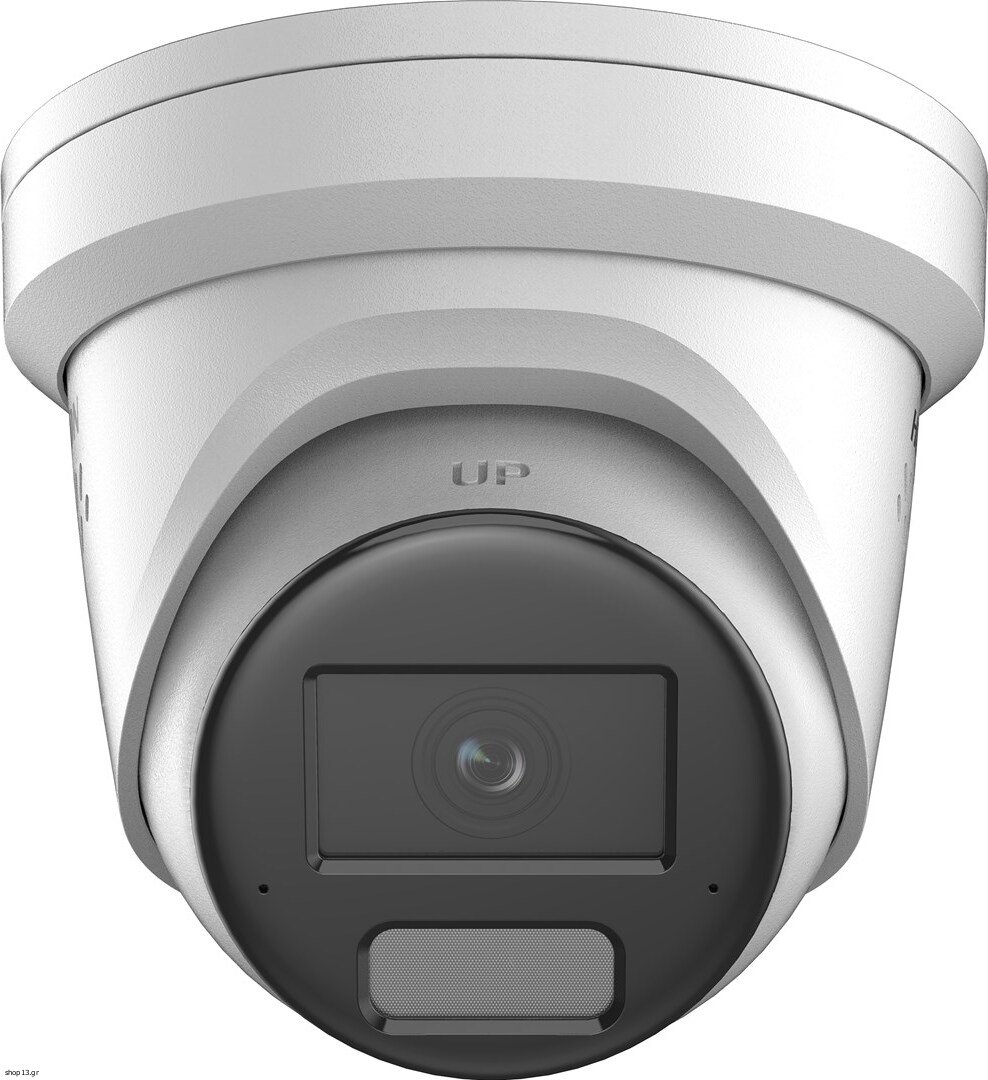

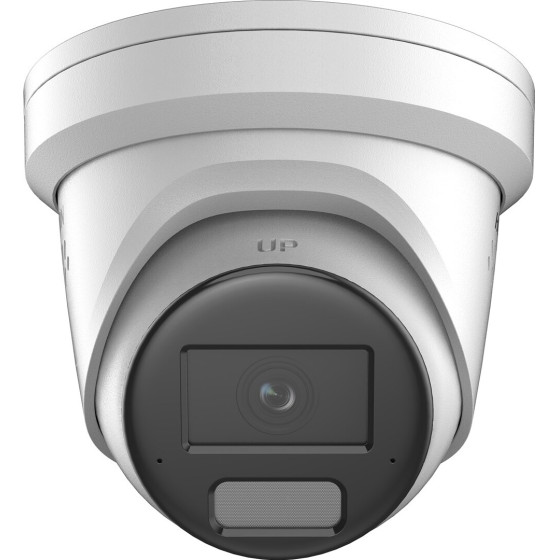

Hikvision Pro Series industrial camera Turret IP security camera Indoor and outdoor 3200 x 1800 px Ceiling/Wall - (DS-2CD2366G2H-IS2U/SL(2.8mm))

Technical details
Lens mount interface: M12
Audio input: 1

Design
Housing material: Metal
Mounting type: Ceiling/wall
Protection features: Water resistant, Dust resistant
Product colour: White
International Protection (IP) code: IP67
Form factor: Turret

Power
DC output voltage: 12
Power consumption (max): 16 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 18 W

Security
Audit log: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion, Face detection, Human detection, Line crossing detection, Vehicle detection, Region entrance detection, Region exiting detection, Scene change
Digest authentication: Yes
Flash log: Yes
Alarm input channels: 1
Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS, TLS
IP address filtering: Yes
Alarm output channels: 1
HTTPS encryption: Yes
Pixel counter: Yes
Mirror: Yes
Active tampering alarm: Yes
Password reset via email: Yes
Heartbeat: Yes
Video motion detection: Yes
Human and vehicle targets classification: Yes
Digital watermark: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%

Management features
Reset button: Yes

Weight & dimensions
Weight: 780 g
Diameter: 13.8 cm
Height: 115.4 mm

Network
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)
Networking standards: IEEE 802.3at, IEEE 802.1x
Ethernet LAN: Yes
Wi-Fi: No
Bluetooth: No
User access level: Administrator, Operator, User
Number of simultaneous live view channels: 6 channels

Performance
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Placement supported: Indoor & outdoor
Day/night mode: Yes
Connectivity technology: Wired
Built-in light: Yes
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Languages support: Multi

Packaging data
Package weight: 1.21 kg
Package width: 170 mm
Package height: 160 mm
Package depth: 170 mm

Packaging content
Number of cameras: 1

Audio
Audio formats supported: G.711, G.726, AAC-LC, G.722.1, MP2L2, PCM, MP3
Signal-to-Noise Ratio (SNR): 52 dB
Built-in microphone: Yes
Audio system: 2-way
Bit rate range: 16 - 320 Kbit/s
Number of microphones: 2
Sample rates: 8 - 48 kHz

Storage
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash), MicroSDXC, MicroSDHC
Card reader integrated: Yes
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Angle of rotation: 360°
Pan range: 0 - 360°
Minimum illumination: 0 lx
Camera shutter speed: 1/3 - 1/100000 s
Tilt angle range: 0 - 75°
Camera pan control: Yes
Lens viewing angle, vertical: 60°
Lens viewing angle, diagonal: 144°
Lens viewing angle, horizontal: 115°
Camera tilt control: Yes

Other features
Audio output: 1

Image sensor
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Sensor type: CMOS
Number of sensors: 1

Video
Total megapixels: 6 MP
Noise reduction: Yes
Frame rate: 30 fps
Bit rate: 32 Kbps - 16 Mbps
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Maximum resolution: 3200 x 1800 pixels
Supported graphics resolutions: 640 x 360, 3200 x 1800, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Video compression formats: H.265+, H.264+, M-JPEG, H.264, H.265
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Image quality adjustment: Sharpness, Saturation, Contrast, Brightness
Privacy masking: Yes

Night vision
LED type: IR
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Fixed focal length: 2.8 mm
Maximum aperture number: 1
Number of lenses: 1

Sustainability
Compliance certificates: WEEE, RCM, KC, RoHS, CE, Low Voltage Directive (LVD), REACH, Electromagnetic Compatibility (EMC), CB


Warranty: Manufacturer warranty 24 months
