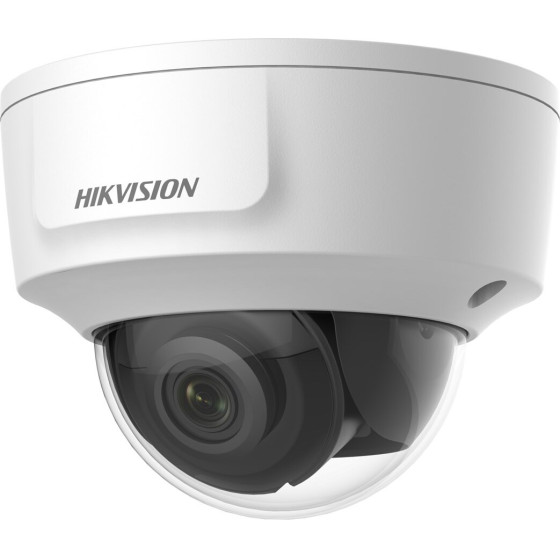

Hikvision Pro Series DS-2CD2186G2-IMS(2.8MM) Industrial Camera In-Ear IP Security Camera Indoor & Outdoor 3840 x 2160 px Ceiling - (DS-2CD2186G2-IMS 2.8mm)

Technical details
Lens mount interface: M12
Audio input: 1

Design
Product colour: White
Housing material: Metal
Form factor: Dome
Mounting type: Ceiling

Power
Power source type: DC, PoE
Power consumption (max): 10 W
DC output voltage: 12

Security
Security algorithms: TLS, EAP-MD5, EAP-LEAP, EAP-TLS
Audit log: Yes
Flash log: Yes
Password reset via email: Yes
Alarm input channels: 1
Intelligent Video Surveillance (IVS) system features: Vehicle detection, Region entrance detection, Region exiting detection, Line crossing detection, Intrusion, Scene change, Face detection, Human detection
Heartbeat: Yes
Digital watermark: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Video motion detection: Yes
Alarm output channels: 1
Pixel counter: Yes
Mirror: Yes
Digest authentication: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -10 - 40 °C
Storage temperature (T-T): -10 - 50 °C

Management features
Reset button: Yes

Weight & dimensions
Height: 90 mm
Weight: 440 g
Diameter: 11.9 cm

Network
Bluetooth: No
Networking standards: IEEE 802.1x, IEEE 802.3af
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Number of simultaneous live view channels: 6 channels
Wi-Fi: No
User access level: Administrator, Operator, User
Number of users: 32 user(s)

Performance
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Dynamic range: 120 dB
Type: IP security camera
Infrared (IR) cut-off filter: Yes
Languages support: Multi
Day/night mode: Yes
Placement supported: Indoor & outdoor

Packaging data
Package weight: 720 g
Package width: 150 mm
Package height: 141 mm
Package depth: 150 mm

Packaging content
Number of cameras: 1

Audio
Audio formats supported: G.722.1, G.726, MP2L2, G.711, PCM, MP3, AAC-LC
Bit rate range: 8 - 320 Kbit/s
Sample rates: 8 - 48 kHz
Signal-to-Noise Ratio (SNR): 52 dB

Storage
Compatible memory cards: MicroSD (TransFlash), MicroSDXC, MicroSDHC
Card reader integrated: Yes
Maximum memory card size: 512 GB
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1

Camera
Tilt angle range: 0 - 75°
Number of Privacy masking areas: 4
Lens viewing angle, diagonal: 133°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 355°
Lens viewing angle, vertical: 58°
Lens viewing angle, horizontal: 108°
Angle of rotation: 355°

Other features
Audio output: 1

Image sensor
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS

Video
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 640 x 480 (VGA), 1280 x 720 (HD 720), 3200 x 1800, 3840 x 2160, 2688 x 1520, 640 x 360, 1920 x 1080 (HD 1080)
Back Light Compensation (BLC): Yes
Bit rate: 32kbps - 16Mbps
Region of Interest (ROI) encoding: Yes
Highlight Compensation (HLC): Yes
Image quality adjustment: Saturation, Contrast, Sharpness, Brightness
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Video compression formats: H.265+, H.264+, H.265, H.264

Night vision
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Recognize distance: 19 m
Maximum aperture number: 1.6
Observe distance: 38 m
Number of lenses: 1
Fixed focal length: 2.8 mm
Detect distance: 97 m
Identify distance: 9 m

Sustainability
Compliance certificates: KC, UKCA, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), CB, RoHS, CE, WEEE, RCM


Warranty: Manufacturer warranty 24 months
