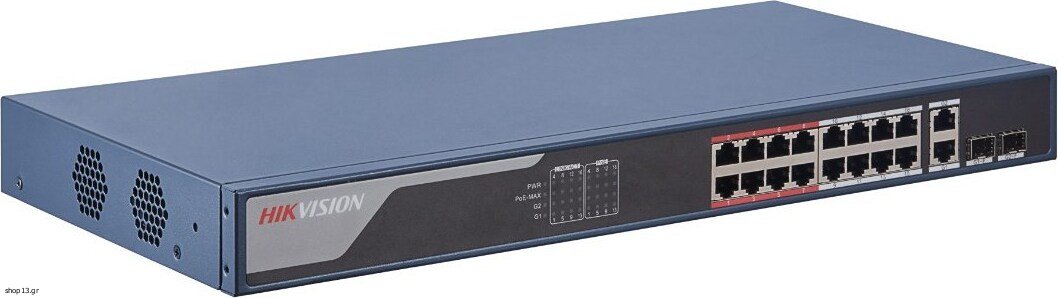

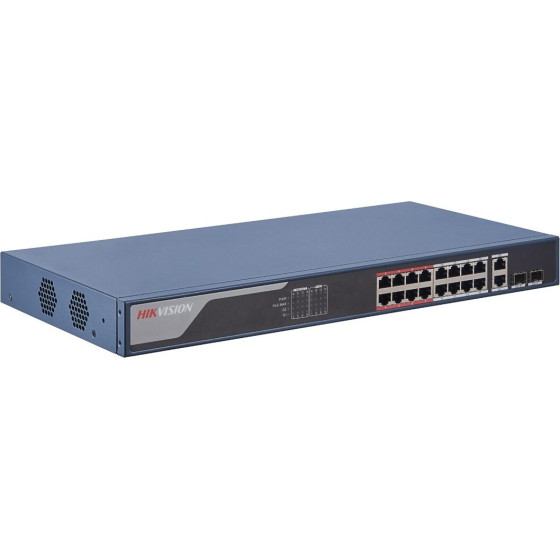

Hikvision network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue - (DS-3E1318P-EI)

Design
Product colour: Blue
Housing material: Metal
Form factor: 1U
Rack mounting: Yes

Power
AC input voltage: 100 - 240 V
Power consumption (max): 250 W
AC input frequency: 50 - 60 Hz
Input current: 4 A
Power source: AC

Security
Loop protection: Yes

Operational conditions
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 45 °C

Management features
System event log: Yes
Switch type: Managed
Web-based management: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Height: 44 mm
Width: 440 mm
Depth: 220.8 mm
Weight: 2.59 kg

Network
10G support: No
VLAN support: Yes
Number of VLANs: 4094
Full duplex: Yes
Link aggregation: Yes
Networking standards: IEEE 802.3at, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3z, IEEE 802.3u

Packaging data
Package weight: 3.68 kg

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Combo SFP ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Data transmission
Switching capacity: 9.2 Gbit/s
Forwarding rate: 6.84 Mpps
MAC address table: 16000 entries
Store-and-forward: Yes
Packet buffer memory: 4 MB

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 230 W
Power over Ethernet (PoE) ports quantity: 16
Power over Ethernet (PoE): Yes


Warranty: Manufacturer warranty 36 months
