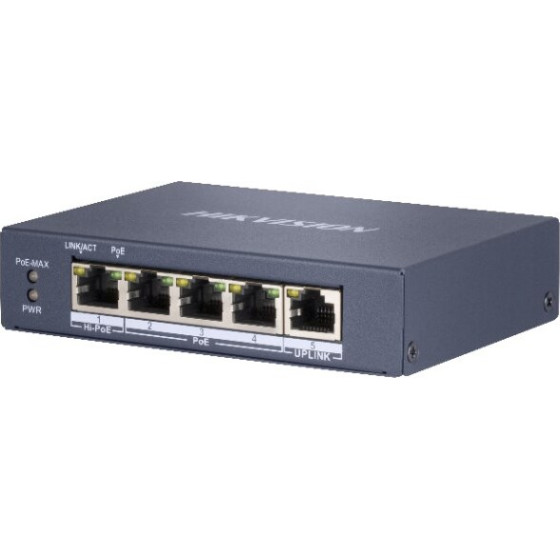

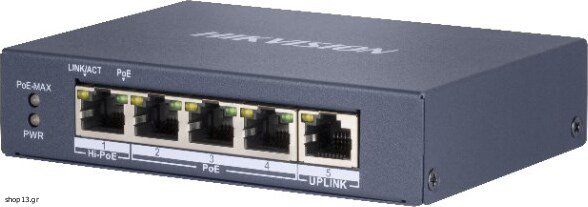

Hikvision Network Links Non-Managed Gigabit Ethernet (10/100/1000) Poe Support Blue - (DS-3E0505HP-E)

Design
Rack mounting: No
Product colour: Blue
Housing material: Metal

Power
DC input voltage: 48 V
Power consumption (max): 65 W
Input current: 1.35 A

Operational conditions
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -10 - 55 °C
Storage relative humidity (H-H): 5 - 95%

Management features
Switch type: Unmanaged

Weight & dimensions
Width: 121 mm
Depth: 88.1 mm
Height: 27.6 mm
Weight: 270 g

Network
Auto MDI/MDI-X: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Full duplex: Yes
10G support: No

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Forwarding rate: 7.44 Mpps
Store-and-forward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 3
Total Power over Ethernet (PoE) budget: 60 W
Power over Ethernet (PoE): Yes

Safety warning
Warnings: Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.


Warranty: Manufacturer warranty 36 months
