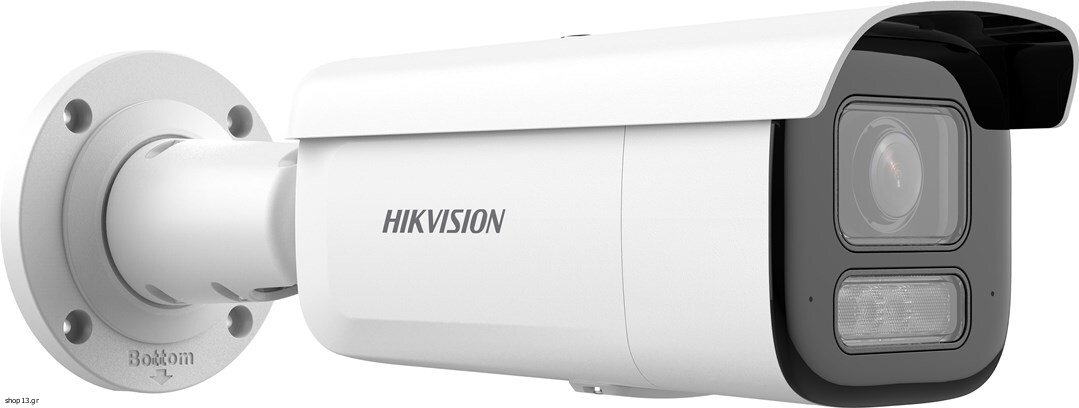

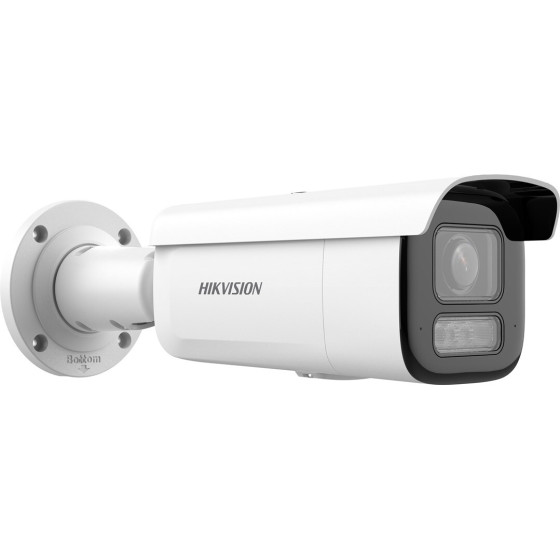

Hikvision KAMERA IP - (DS-2CD2663G2-LIZS2U(2.8-12mm))

Technical details
Sustainability certificates: WEEE, RoHS, REACH

Memory
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Maximum memory card size: 512 GB
Camera card reader integrated: Yes

Design
Housing material: Aluminium
International Protection (IP) code: IP67
IK code: IK10
Product colour: White

Power
PoE standard: IEEE 802.3af
Power over Ethernet (PoE): Yes
Maximum power: 13 W
Power management: DC 12 V

Security
Heartbeat: Yes
Video motion detection: Yes
Privacy masking: Yes
Mirror: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%

Management features
Web-based management: Yes

Weight & dimensions
Width: 190 mm
Height: 180 mm
Weight: 1.53 kg
Package width: 298 mm
Package height: 96 mm
Package weight: 2 kg
Package depth: 98 mm
Depth: 385 mm

Network
Ethernet LAN: Yes
Number of users: 32 user(s)
Quality of Service (QoS) support: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Client interoperability: ONVIF (Profile S / Profile G / Profile T), ISAPI, SDK, ISUP

Performance
Day/night mode: Yes
Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): 120 dB

Packaging content
Number of cameras: 1

Audio
Signal-to-Noise Ratio (SNR): 52 dB
Noise filter: Y
Sample rate: 8 kHz /16 kHz /32 kHz / 48 kHz
Built-in microphone: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, diagonal: 123°
Lens viewing angle, vertical: 53.8°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 360°
Angle of rotation: 355°
Tilt angle range: 0 - 90°

Image sensor
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Progressive scan: Yes
Sensor type: CMOS

Video
Video compression formats: H.265+, H.264+, M-JPEG, H.264, H.265
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Total megapixels: 6 MP
Highlight Compensation (HLC): Yes

Night vision
Minimum illumination: 0.005 lx
LED type: IR
Night vision distance: 60 m
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Detect distance (wide): 74.7 m
Maximum aperture number: 1.6
Identify distance (wide): 7.5 m
Observe distance (wide): 29.9 m

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
