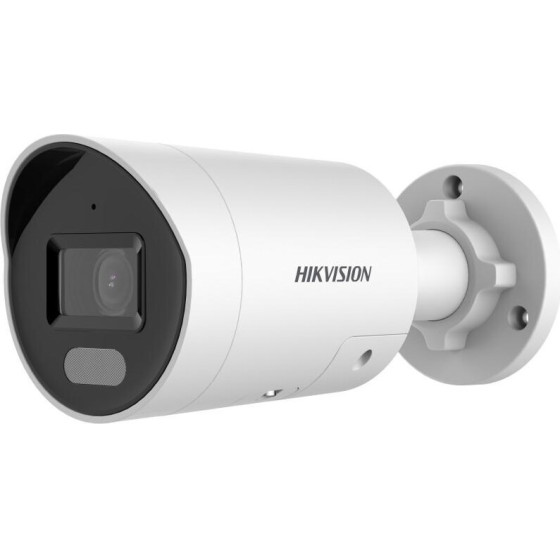

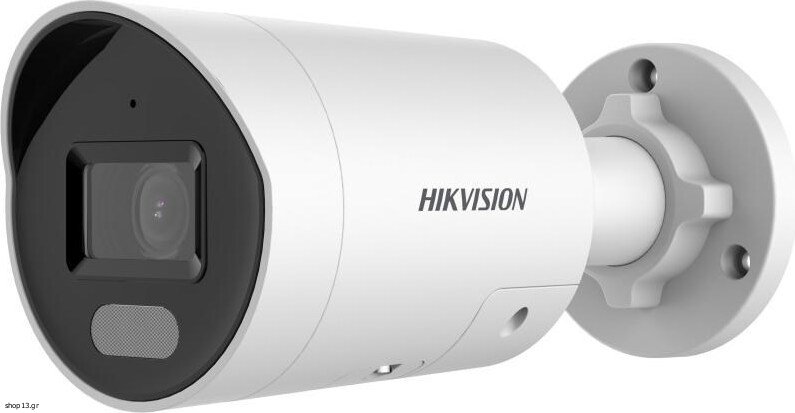

Hikvision KAMERA IP DS-2CD2047G2H-LIU/SL (2,8 mm) - (DS-2CD2047G2H-LIU/SL (2,8mm) (E)

Technical details
Iris: Yes
Lens mount interface: M16

Design
Product colour: White
Mounting type: Ceiling/wall
Protection features: Water resistant
International Protection (IP) code: IP67
Form factor: Bullet
Housing material: Metal

Power
DC output voltage: 12
Power consumption (max): 6.5 W
DC output current: 0.54 A
Power consumption (Power over Ethernet (PoE)): 8 W
Power source type: DC, PoE

Security
Security algorithms: EAP-LEAP, EAP-TLS, EAP-MD5, TLS
Intelligent Video Surveillance (IVS) system features: Face detection
Human and vehicle targets classification: Yes
Digital watermark: Yes
HTTPS encryption: Yes
Video motion detection: Yes
Alert notification type: E-mail
Privacy protection: Yes
Heartbeat: Yes
Audit log: Yes
Digest authentication: Yes
Network access storage (NAS): Yes
Flash log: Yes
Active tampering alarm: Yes
Mirror: Yes
IP address filtering: Yes
Password reset via email: Yes
Pixel counter: Yes
Password protection: Yes
Automatic Network Replenishment (ANR): Yes

Operational conditions
Storage temperature (T-T): -30 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%

Management features
Reset button: Yes
Behavior analysis: Line crossing detection, Region entrance detection, Region exiting detection
Web browser: Yes

Weight & dimensions
Weight: 510 g
Length: 179.2 mm
Diameter: 7.44 cm

Network
Networking standards: IEEE 802.3af, IEEE 802.1x
Number of users: 32 user(s)
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Live view: Yes
Quality of Service (QoS) support: Yes
Number of simultaneous live view channels: 6 channels
Wi-Fi: No
Bluetooth: No
Client interoperability: iVMS-4200, Hik-Connect
User access level: Administrator, Operator, User

Performance
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Remote viewing: Yes
Connectivity technology: Wired
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Type: IP security camera
Dynamic range: 130 dB
Languages support: Multi
Placement supported: Outdoor

Packaging data
Package width: 234 mm
Package height: 117 mm
Package depth: 120 mm
Package weight: 880 g

Packaging content
Number of cameras: 1

Audio
Sample rates: 8 - 48 kHz
Built-in speaker(s): Yes
Signal-to-Noise Ratio (SNR): 52 dB
Audio codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Built-in microphone: Yes
Bit rate range: 16 - 320 Kbit/s

Storage
Compatible memory cards: MicroSD (TransFlash), MicroSDXC, MicroSDHC
Maximum memory card size: 512 GB
Card reader integrated: Yes
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, horizontal: 111.9°
Angle of rotation: 360°
Lens viewing angle, vertical: 60.5°
Lens viewing angle, diagonal: 133.6°
Minimum illumination: 0 lx
Pan range: 0 - 360°
Tilt angle range: 0 - 90°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Sensor type: CMOS
Number of sensors: 1

Video
Supported graphics resolutions: 1280 x 720 (HD 720), 2688 x 1520, 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080)
Image quality adjustment: Contrast, Saturation, Sharpness, Brightness
Bit rate: 32 Kbps -8 Mbps
Video compression formats: H.265+, H.264, H.264+, H.265
Region of Interest (ROI) encoding: Yes
Privacy masking: Yes
Back Light Compensation (BLC): Yes
Noise reduction: Yes
Gain control type: Auto
Frame rate: 30 fps
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Maximum resolution: 2688 x 1520 pixels
Smart IR: Yes
Total megapixels: 4 MP
Noise reduction technology: 3D noise reduction

Night vision
LED type: IR/White
Night vision distance: 40 m
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Identify distance: 5.8 m
Maximum aperture number: 1
Number of lenses: 1
Fixed focus: Yes
Fixed focal length: 2.8 mm
Recognize distance: 11.6 m
Observe distance: 23.1 m
Detect distance: 58.2 m

Sustainability
Sustainability compliance: Yes
Compliance certificates: RoHS, CE, KC, CB


Warranty: warranty 24 months
