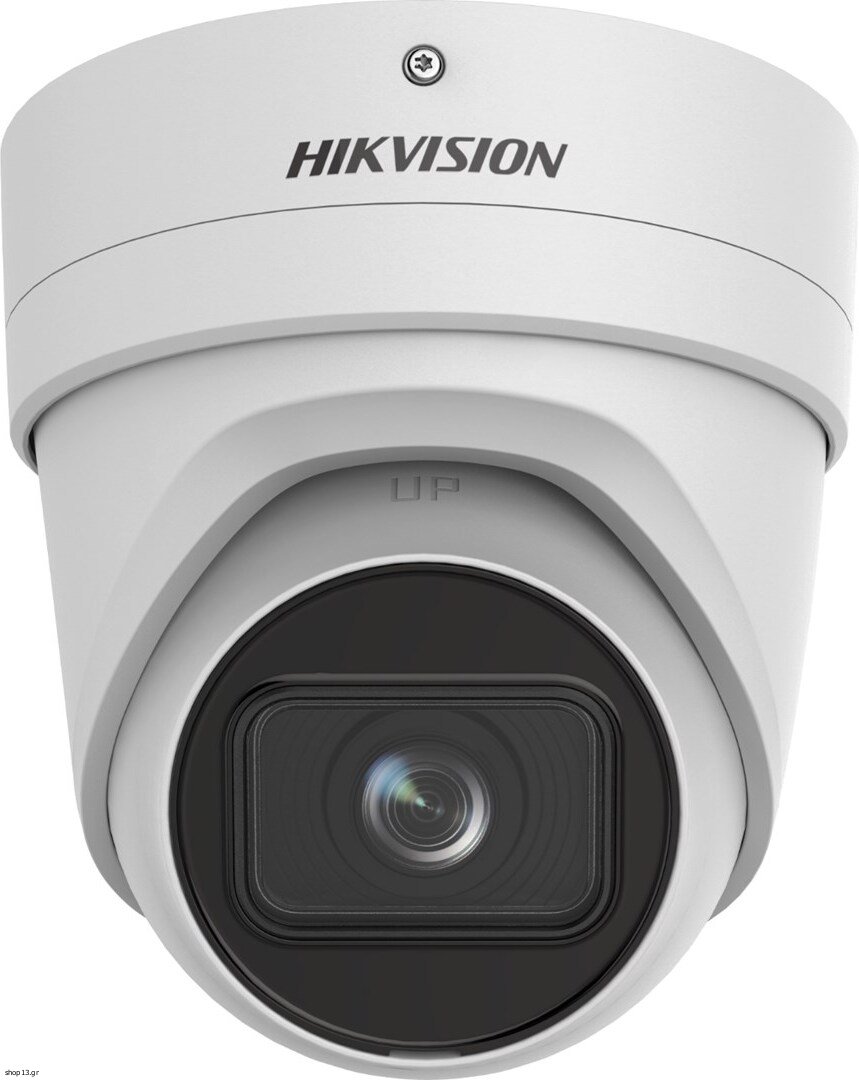

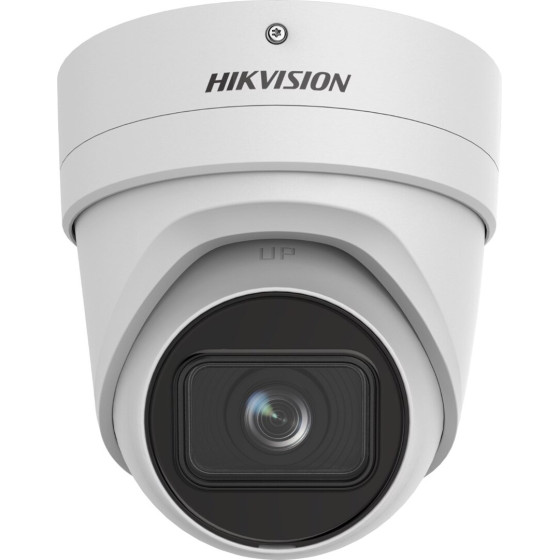

Hikvision IP camera DS-2CD2H86G2-IZS(2.8-12mm)(C) - (DS-2CD2H86G2-IZS(2.8-12mm)©)

Design
Form factor: Turret
Product colour: White
IK code: IK10
Protection features: Water resistant, Dust resistant, Vandal proof
International Protection (IP) code: IP66
Mounting type: Ceiling/wall

Power
Power consumption (max): 11.04 W
Power source type: DC, PoE
DC output current: 0.92 A
Power consumption (Power over Ethernet (PoE)): 12.5 W
DC output voltage: 12

Security
Security algorithms: TLS
Alert notification type: E-mail
Mirror: Yes
Heartbeat: Yes
Intelligent Video Surveillance (IVS) system features: Face detection, Scene change
IP address filtering: Yes
Video motion detection: Yes
Anti-flicker: Yes
Password protection: Yes
HTTPS encryption: Yes
Active tampering alarm: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Web browser: Yes

Weight & dimensions
Package weight: 1.53 kg
Weight: 1.16 kg
Length: 145.5 mm
Diameter: 13.6 cm
Package width: 170 mm
Package height: 205 mm
Package depth: 170 mm

Network
Quality of Service (QoS) support: Yes
Bluetooth: No
Networking standards: IEEE 802.3af
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)

Performance
Type: IP security camera
Connectivity technology: Wired
Number of languages: 33
Languages support: Multi
Wide Dynamic Range (WDR): Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Placement supported: Indoor & outdoor
Day/night mode: Yes

Packaging content
Number of cameras: 1

Audio
Audio output channels: 1 channels
Signal-to-Noise Ratio (SNR): 52 dB
Voice codecs: PCM, G.711ulaw, G.722.1, G.726, AAC, G.711alaw, MP2L2
Audio input channels: 1 channels
Sample rates: 8 - 48 kHz

Storage
Card reader integrated: Yes
Compatible memory cards: MicroSDXC, MicroSD (TransFlash), MicroSDHC
Built-in HDD: No
Maximum memory card size: 256 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Pan range: 0 - 355°
Lens viewing angle, diagonal: 127.4°
Camera pan control: Yes
Camera tilt control: Yes
Lens viewing angle, horizontal: 108°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Lens viewing angle, vertical: 58°

Image sensor
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Number of sensors: 1
Sensor type: CMOS

Video
Supported graphics resolutions: 640 x 480 (VGA), 3840 x 2160, 3200 x 1800, 1920 x 1080 (HD 1080), 2688 x 1520, 640 x 360, 1280 x 720 (HD 720)
Maximum resolution: 3840 x 2160 pixels
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Highlight Compensation (HLC): Yes
Frame rate: 30 fps
Back Light Compensation (BLC): Yes
Noise reduction: Yes
Total megapixels: 8 MP
Video compression formats: H.265+, H.265, H.264, H.264+, M-JPEG
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Privacy masking: Yes
Video streaming: Yes
Image quality adjustment: Saturation, Brightness, Contrast, Sharpness
Gain control type: Auto

Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Detect distance (wide): 86 m
Number of lenses: 1
Focal length range: 2.8 - 12 mm
Detect distance (tele): 214 m
Observe distance (wide): 34.1 m
Observe distance (tele): 84.9 m
Identify distance (tele): 21.4 m
Recognize distance (wide): 17.2 m
Identify distance (wide): 8.6 m
Recognize distance (tele): 42.8 m
Maximum aperture number: 1.4

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 36 months
