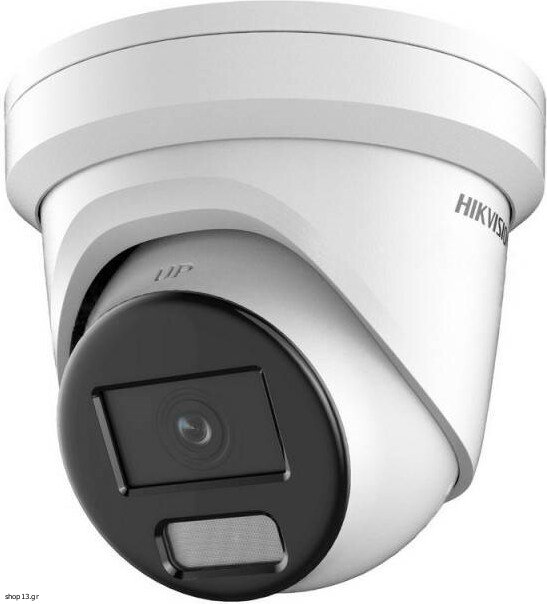

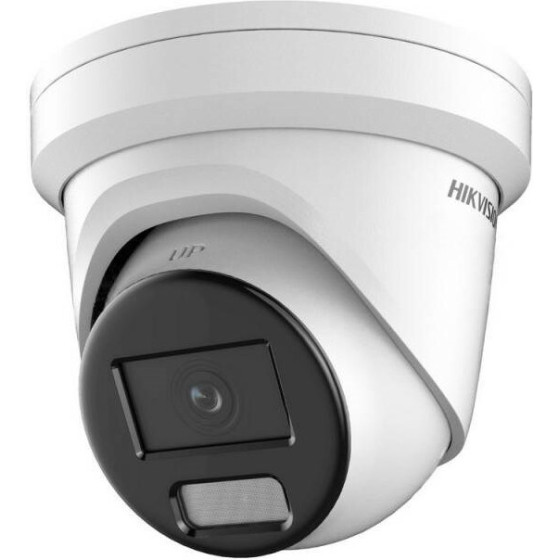

Hikvision IP CAMERA DS-2CD2387G2-L (2.8mm) (C) - (DS-2CD2387G2-L (2.8mm) ©)

Technical details
Lens mount interface: M16

Design
Mounting type: Ceiling
Housing material: Aluminium, Plastic
International Protection (IP) code: IP67
Form factor: Bullet
Protection features: Water resistant
Product colour: White, Black

Power
Power consumption (Power over Ethernet (PoE)): 6 W
DC output voltage: 12
Power consumption (max): 5 W
Power source type: DC, PoE

Security
IP address filtering: Yes
Video motion detection: Yes
Mirror: Yes
Privacy protection: Yes
Active tampering alarm: Yes
Password protection: Yes
Human and vehicle targets classification: Yes
Automatic Network Replenishment (ANR): Yes
Network access storage (NAS): Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Weight & dimensions
Diameter: 13.8 cm
Height: 120.1 mm
Weight: 870 g

Network
Client interoperability: iVMS-4200, Hik-Connect, Hik-Central
Live view: Yes
Number of simultaneous live view channels: 6 channels
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Bluetooth: No

Performance
Day/night mode: Yes
Alarm input/output: No
Placement supported: Indoor & outdoor
Dynamic range: 130 dB
Built-in light: Yes
Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes

Packaging data
Package width: 170 mm
Package height: 150 mm
Package depth: 170 mm

Packaging content
Number of cameras: 1

Audio
Sample rates: 8 - 48 kHz
Bit rate range: 16 - 64 Kbit/s
Audio formats supported: AAC-LC, G.722.1, MP3, MP2L2, PCM, G.711 μ-law, G.726, G.711 A-law
Audio input channels: 1.0 channels
Built-in microphone: Yes

Storage
Built-in HDD: No
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Angle of rotation: 360°
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 8

Image sensor
Optical sensor size: 25.4 / 1.2 mm (1 / 1.2")
Progressive scan: Yes
Sensor type: CMOS
Number of sensors: 1

Video
Region of Interest (ROI) encoding: Yes
Video compression formats: H.265+, H.264+, M-JPEG, H.265, H.264
Image quality adjustment: Contrast, Sharpness, Brightness, Exposure, White balance, Saturation
Frame rate: 30 fps
Privacy masking: Yes
Noise reduction technology: 3D NR
Video streaming: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 2688 x 1520, 1920 x 1080 (HD 1080), 640 x 360, 640 x 480 (VGA), 3840 x 2160, 3200 x 1800
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps to 16 Kbps
Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Highlight Compensation (HLC): Yes

Night vision
Night vision: Yes
LED type: White
Night vision distance: 30 m

Lens system
Fixed focal length: 2.8 mm
Detect distance: 96 m
Number of lenses: 2

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.

Sustainability
Compliance certificates: CB, UL


Warranty: Manufacturer warranty 36 months
