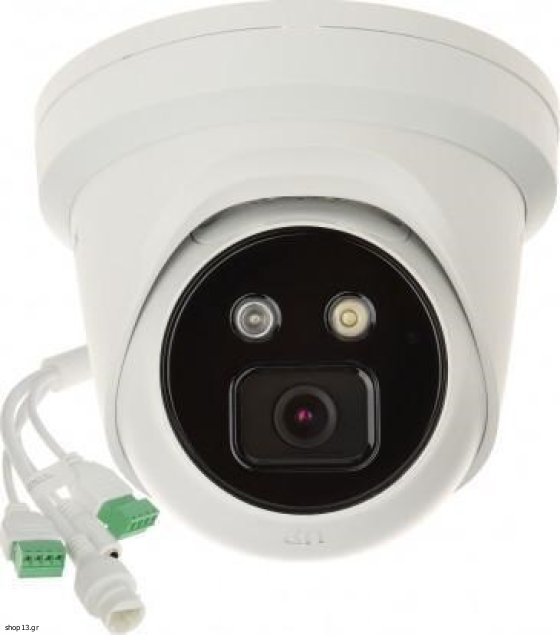

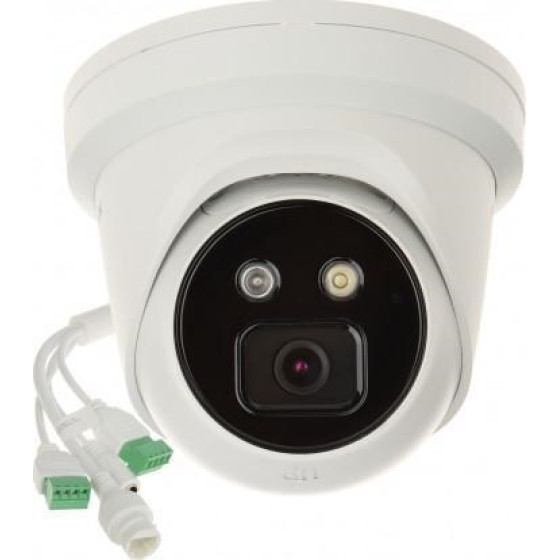

Hikvision IP CAMERA - (DS-2CD2346G2-ISU/SL)

Technical details
Sustainability certificates: WEEE, REACH

Features
Strobe: Yes
Audible alarm: Yes

Design
International Protection (IP) code: IP67
Form factor: Dome
Product colour: White

Power
DC output current: 0.65 A
Power management: DC 12 V
PoE standard: IEEE 802.3af
Power over Ethernet (PoE): Yes

Security
IP address filtering: Yes
HTTPS encryption: Yes
Mirror: Yes
Password protection: Yes
Video motion detection: Yes
Heartbeat: Yes

Operational conditions
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Web-based management: Yes

Weight & dimensions
Diameter: 13.8 cm
Package height: 150 mm
Package depth: 170 mm
Weight: 730 g
Package width: 170 mm
Package weight: 1.04 kg

Network
Client interoperability: ONVIF (Profile S / (Profile T / (Profile G), ISAPI, SDK
Ethernet LAN: Yes
Number of users: 32 user(s)
Ethernet LAN data rates: 10,100 Mbit/s
Quality of Service (QoS) support: Yes

Performance
Day/night mode: Yes
Wide Dynamic Range (WDR): 120 dB
Languages support: German, Polish, Japanese, Russian, French, Vietnamese, Slovak, Norwegian, English, Greek, Korean, Romanian, SER, Bulgarian, Latvian, Italian, Traditional Chinese, Dutch, Czech, Spanish, Hungarian, Lithuanian, Turkish, Thai, Swedish, Finnish, Danish, Ukrainian, Croatian, Estonian, Portuguese, Slovenian
Number of languages: 33
Type: IP security camera

Packaging content
Number of cameras: 1

Audio
Signal-to-Noise Ratio (SNR): 52 dB
Built-in loudspeaker: Yes
Sample rate: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Noise filter: Y
Mono sound: Yes
Built-in microphone: Yes

Storage
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces
Alarm input channels: 1
Alarm output channels: 1
Ethernet LAN (RJ-45) ports: 1

Camera
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Pan range: 0 - 360°
Lens viewing angle, diagonal: 123°
Lens viewing angle, horizontal: 103°
Lens viewing angle, vertical: 55°
Tilt angle range: 0 - 75°

Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")

Video
Bit rate: 32 Kbps - 8 Mbps
Video compression formats: H.265, M-JPEG, H.264+, H.264, H.265+
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Region of Interest (ROI) encoding: Yes
Maximum resolution: 2688 x 1520 pixels

Night vision
LED type: IR
Night vision distance: 30 m
Minimum illumination: 0.003 lx
Night vision: Yes

Lens system
Recognize distance (wide): 12 m
Observe distance (wide): 23.8 m
Maximum aperture number: 1.4
Detect distance (wide): 60 m
Identify distance (wide): 6 m
Number of lenses: 1

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 36 months
