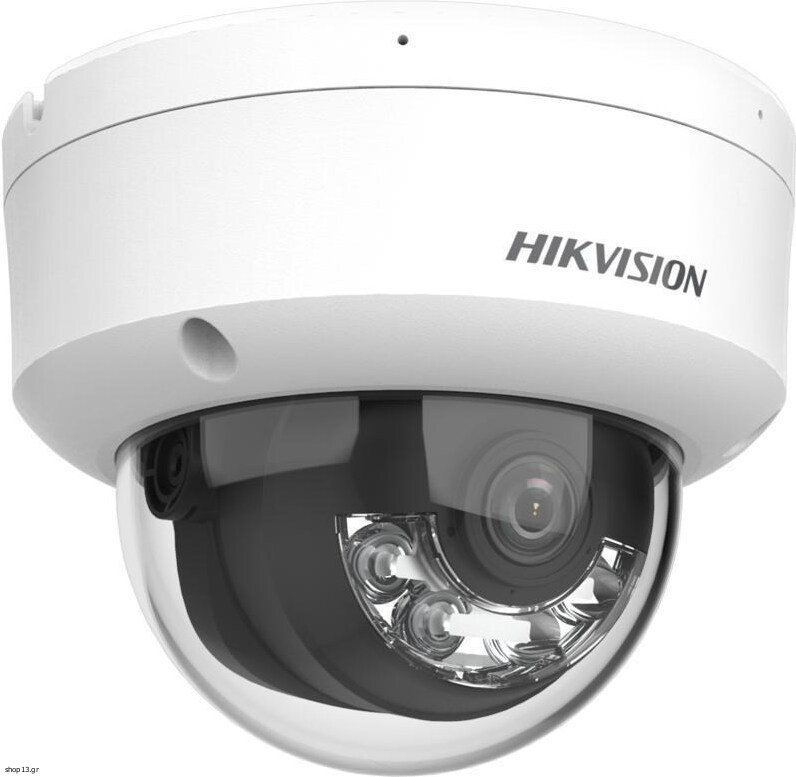

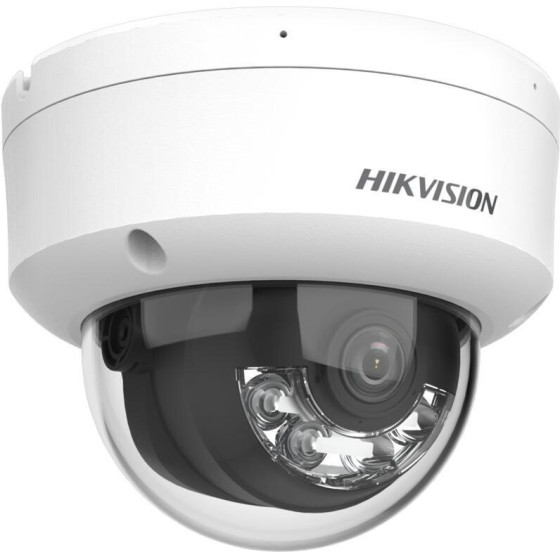

Hikvision IP CAMERA DS-2CD2163G2-LIS2U (2.8mm) - (DS-2CD2163G2-LIS2U(2.8mm))

Technical details
Sustainability certificates: WEEE, REACH

Design
Housing material: Aluminium
Product colour: White
Form factor: Dome
International Protection (IP) code: IP67
Protection class impact resistance: IK10

Power
Power over Ethernet (PoE): Yes
Power management: DC 12 V
PoE standard: IEEE 802.3af

Security
Mirror: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Password protection: Yes
Video motion detection: Yes
Privacy masking: Yes
Heartbeat: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes
Behavior analysis: Intrusion detection, Line crossing detection

Weight & dimensions
Package weight: 840 g
Package depth: 150 mm
Weight: 600 g
Package width: 150 mm
Package height: 141 mm
Diameter: 12.2 cm
Length: 97.6 mm

Network
Quality of Service (QoS) support: Yes
Number of users: 32 user(s)
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Client interoperability: ONVIF (Profile S / Profile G), ISAPI, SDK, ISUP

Performance
Languages support: Italian, Lithuanian, Turkish, Bulgarian, Latvian, Swedish, Dutch, Czech, Spanish, Hungarian, Norwegian, Estonian, Portuguese, Slovenian, French, Vietnamese, Slovak, Ukrainian, Croatian, Danish, Thai, Traditional Chinese, English, Greek, German, Polish, Japanese, Russian, Finnish, Korean, Romanian, SER
Type: IP security camera
Connectivity technology: Wired
Day/night mode: Yes
Wide Dynamic Range (WDR): 120 dB
Number of languages: 33

Packaging content
Number of cameras: 1

Audio
Sample rate: 8 kHz /16 kHz /32 kHz / 48 kHz
Noise filter: Y
Audio input: 1
Signal-to-Noise Ratio (SNR): 52 dB
Audio output: 1
Built-in microphone: Yes

Storage
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Maximum memory card size: 512 GB
Memory card slot: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Pan range: 0 - 355°
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, horizontal: 105°
Angle of rotation: 355°
Lens viewing angle, diagonal: 127°
Lens viewing angle, vertical: 55°

Image sensor
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Progressive scan: Yes
Sensor type: CMOS

Video
Video compression formats: H.265+, H.264+, M-JPEG, H.264, H.265
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 16 Mbps
Total megapixels: 6 MP
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes

Night vision
Minimum illumination: 0.005 lx
LED type: IR/White
Night vision distance: 30 m
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Maximum aperture number: 1.6
Number of lenses: 1
Identify distance (wide): 7 m
Detect distance (wide): 76 m

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
