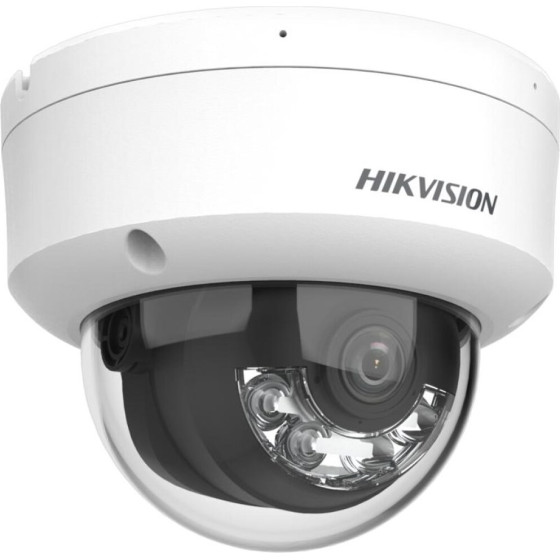

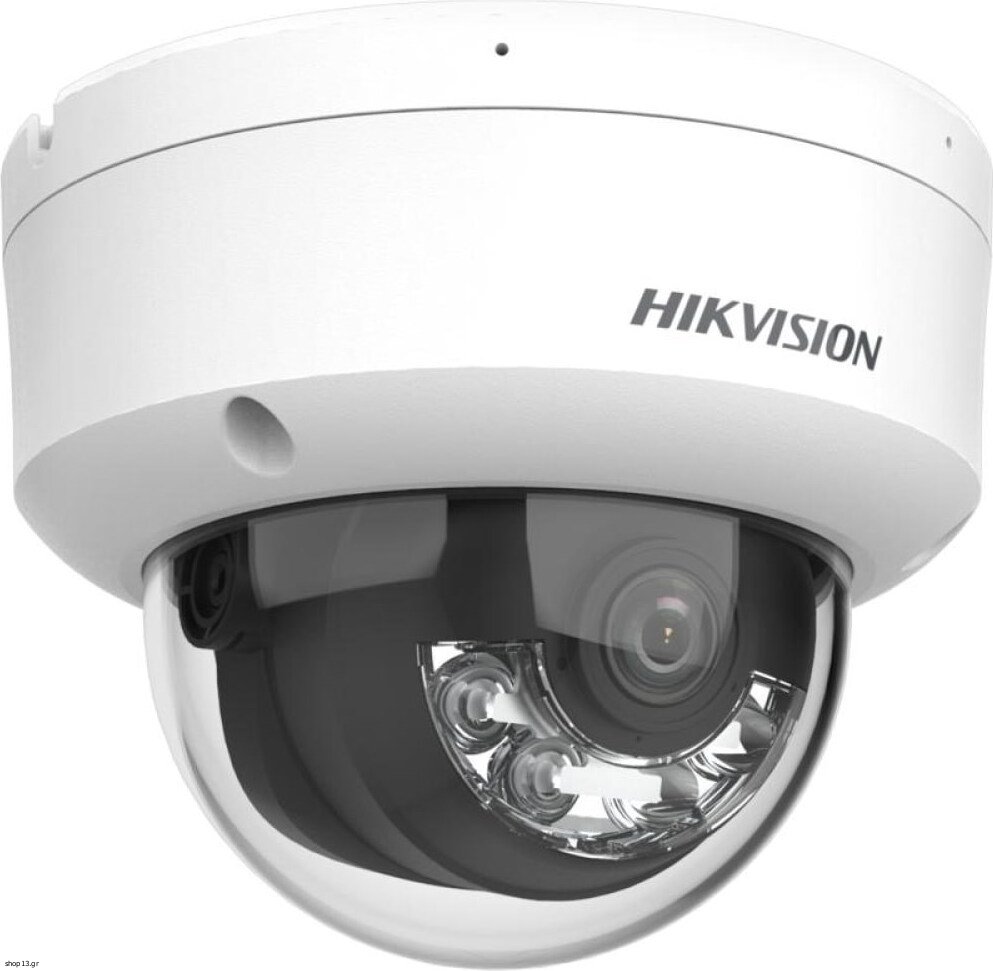

Hikvision IP CAMERA - (DS-2CD2143G2-LI(2.8mm))

Technical details
Sustainability certificates: WEEE, RoHS

Design
International Protection (IP) code: IP67
Form factor: Dome
Product colour: White
IK code: IK10
Housing material: Aluminium alloy

Power
Power over Ethernet (PoE): Yes
DC output current: 0.6 A
Power management: DC 12 V
PoE standard: IEEE 802.3af

Security
Heartbeat: Yes
Password protection: Yes
Mirror: Yes
Video motion detection: Yes

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes

Weight & dimensions
Length: 97.6 mm
Package width: 150 mm
Package height: 141 mm
Package depth: 150 mm
Weight: 600 g
Package weight: 830 g
Diameter: 12.2 cm

Network
Quality of Service (QoS) support: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN: Yes
Client interoperability: ONVIF (Profile S / Profile G), ISAPI, SDK, ISUP
Number of users: 32 user(s)

Performance
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): 120 dB
Day/night mode: Yes

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB

Storage
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Lens viewing angle, diagonal: 122°
Angle of rotation: 355°
Camera shutter speed: 1/3 - 1/100000 s
Pan range: 0 - 355°
Lens viewing angle, vertical: 57°
Lens viewing angle, horizontal: 104°

Image sensor
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Sensor type: CMOS

Video
Maximum resolution: 2688 x 1520 pixels
Video compression formats: M-JPEG, H.265, H.264, H.264+, H.265+
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels: 4 MP
Region of Interest (ROI) encoding: Yes

Night vision
LED type: IR/White
Minimum illumination: 0.005 lx
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Maximum aperture number: 1.6
Identify distance (wide): 6 m
Observe distance (wide): 25 m
Number of lenses: 1
Detect distance (wide): 63 m
Recognize distance (wide): 12 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 36 months
