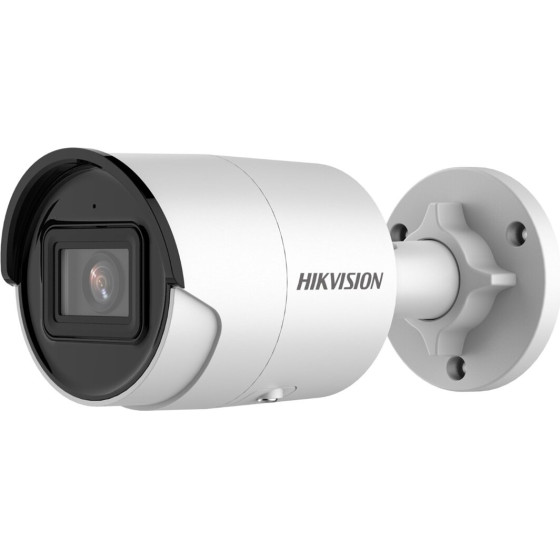

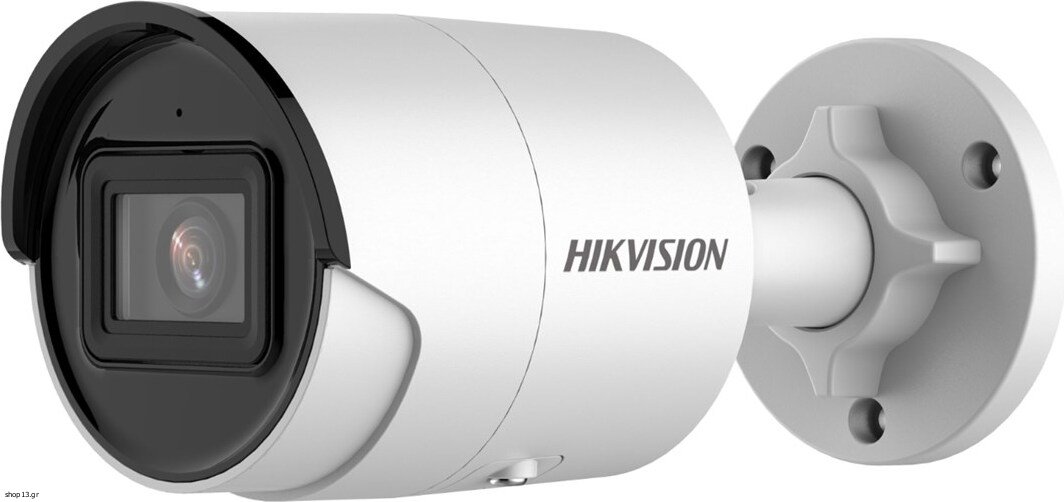

Hikvision IP camera DS-2CD2043G2-I (2.8mm) - (DS-2CD2043G2-I(2.8mm))

Technical details
Sustainability certificates: REACH, RoHS

Design
Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP67
Form factor: Bullet

Power
DC output voltage: 12
DC output current: 0.5 A
Power consumption (Power over Ethernet (PoE)): 7 W
Power source type: DC, PoE
Power consumption (max): 6 W

Security
Mirror: Yes
Video motion detection: Yes
Heartbeat: Yes
Anti-flicker: Yes
IP address filtering: Yes
Password protection: Yes
HTTPS encryption: Yes

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Management features
Behavior analysis: Intrusion detection, Line crossing detection
Web browser: Yes
Reset button: Yes
Web-based management: Yes

Weight & dimensions
Diameter: 7 cm
Package height: 118 mm
Package weight: 724 g
Package depth: 121 mm
Package width: 216 mm
Weight: 490 g
Length: 161.7 mm

Network
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 32 user(s)
Wi-Fi: No
Networking standards: IEEE 802.3af, IEEE 802.1x
Bluetooth: No
Quality of Service (QoS) support: Yes

Performance
Placement supported: Outdoor
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Number of languages: 33
Infrared (IR) cut-off filter: Yes
Connectivity technology: Wired
Type: IP security camera

Packaging content
Number of cameras: 1

Storage
Built-in HDD: No
Maximum memory card size: 256 GB
Compatible memory cards: MicroSD (TransFlash), MicroSDXC, MicroSDHC
Card reader integrated: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, diagonal: 122°
Lens viewing angle, horizontal: 103°
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, vertical: 55°
Angle of rotation: 360°
Camera tilt control: Yes
Pan range: 0 - 360°
Tilt angle range: 0 - 90°

Image sensor
Number of sensors: 1
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")

Video
Privacy masking: Yes
Noise reduction technology: 3D noise reduction
Video compression formats: H.265+, M-JPEG, H.265, H.264+, H.264
Region of Interest (ROI) encoding: Yes
Noise reduction: Yes
Image quality adjustment: Brightness, Contrast, Sharpness, Saturation
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 Kbps - 8 Mbps
Highlight Compensation (HLC): Yes
Video streaming: Yes
Total megapixels: 4 MP
Maximum resolution: 2688 x 1520 pixels
Supported graphics resolutions: 2688 x 1520, 640 x 360, 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080)

Night vision
Night vision: Yes
Night vision distance: 40 m
Infra-red wavelength: 850 nm
LED type: IR

Lens system
Maximum aperture number: 1.6
Fixed focal length: 2.8 mm
Number of lenses: 1

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.


Warranty: Manufacturer warranty 36 months
