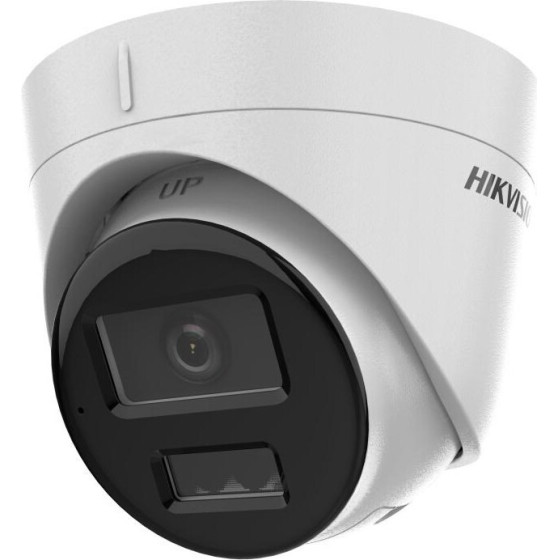

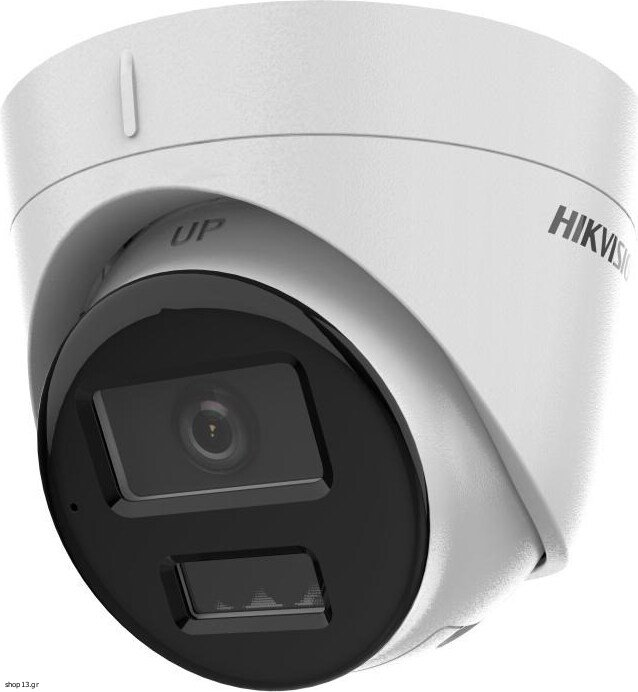

Hikvision IP CAMERA DS-2CD1341G2-LIU 2.8MM EN - (DS-2CD1341G2-LIU 2.8MM PL)

Technical details
Sustainability certificates: WEEE, RoHS

Design
Form factor: Dome
Housing material: Plastic, Metal
International Protection (IP) code: IP67
Product colour: White

Power
Power over Ethernet (PoE): Yes
Maximum power: 5 W
DC output current: 0.4 A
Power management: DC 12 V
PoE standard: IEEE 802.3af

Security
Mirror: Yes
Password protection: Yes
Video motion detection: Yes
Heartbeat: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes

Weight & dimensions
Weight: 340 g
Length: 89 mm
Package weight: 560 g
Package depth: 150 mm
Package width: 150 mm
Package height: 141 mm

Network
Ethernet LAN data rates: 10,100 Mbit/s
Number of users: 32 user(s)
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Client interoperability: ONVIF (Profile S / (Profile T / (Profile G), ISAPI, SDK

Performance
Wide Dynamic Range (WDR): 120 dB
Type: IP security camera
Day/night mode: Yes
Connectivity technology: Wired

Packaging content
Number of cameras: 1

Audio
Audio codecs: G.711a
Sample rate: 8 kHz / 16 kHz
Built-in microphone: Yes
Noise filter: Y
Signal-to-Noise Ratio (SNR): 52 dB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Lens viewing angle, horizontal: 98°
Lens viewing angle, diagonal: 114°
Lens viewing angle, vertical: 54°
Tilt angle range: 0 - 75°

Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes
Sensor type: CMOS

Video
Region of Interest (ROI) encoding: Yes
Video compression formats: H.265+, H.264, H.264+, H.265, M-JPEG
Highlight Compensation (HLC): Yes
Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Night vision
Minimum illumination: 0.005 lx
LED type: IR/White
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Maximum aperture number: 1.6
Number of lenses: 1
Identify distance (wide): 6 m
Recognize distance (wide): 12 m
Observe distance (wide): 25 m
Detect distance (wide): 63 m

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
