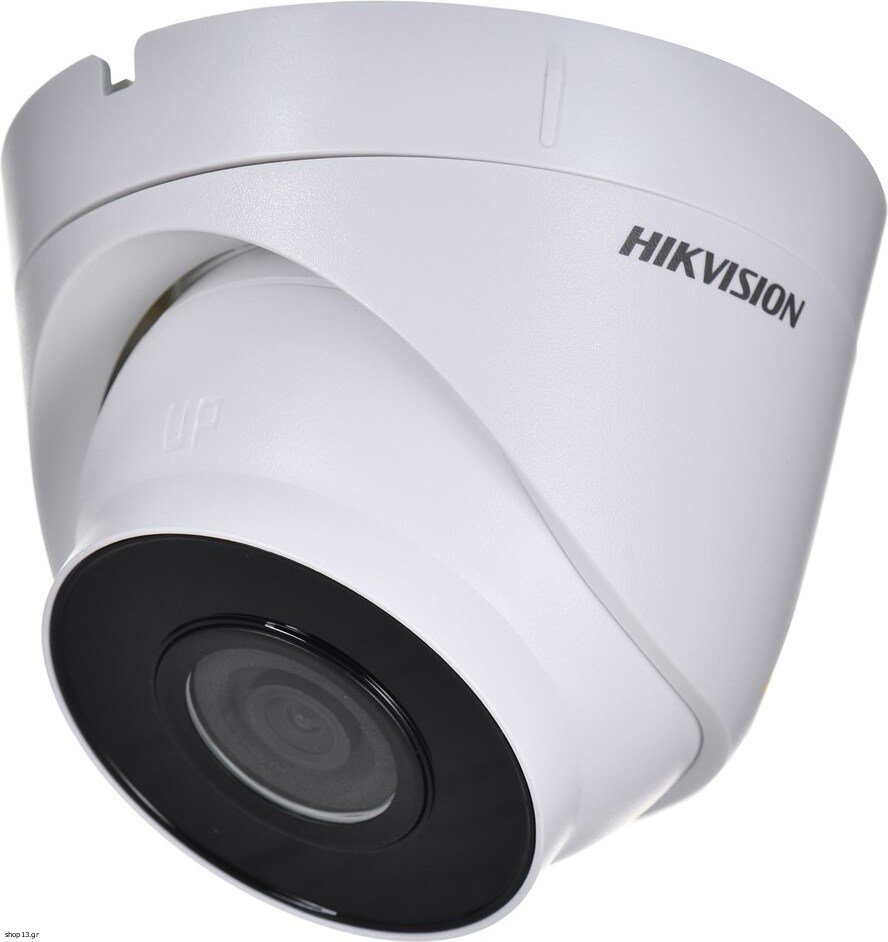

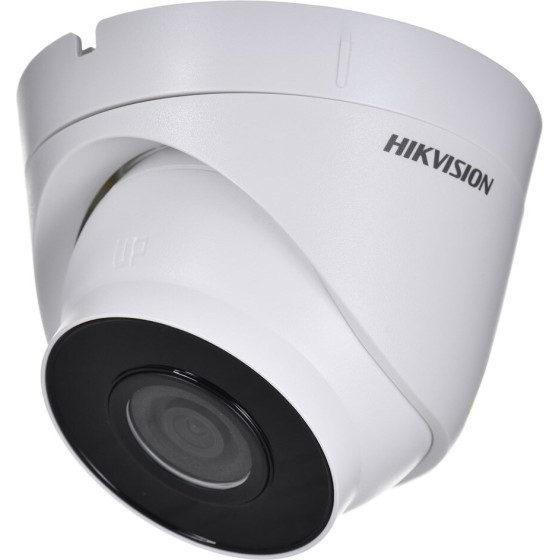

Hikvision IP CAMERA DS-2CD1341G0-I/PL(2.8 MM) - (DS-2CD1341G0-I/PL(2.8mm))

Design
Product colour: White
International Protection (IP) code: IP67
Form factor: Dome
Housing material: Plastic, Metal
Mounting type: Ceiling/wall

Power
Power consumption (max): 5 W
Power source type: DC, PoE
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 6.5 W

Security
Digital watermark: Yes
Anti-flicker: Yes
Video motion detection: Yes
Heartbeat: Yes
Mirror: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Web-based management: Yes
Web browser: Yes

Weight & dimensions
Package width: 150 mm
Package depth: 150 mm
Package height: 141 mm
Weight: 350 g
Package weight: 610 g
Diameter: 11 cm
Height: 93.2 mm

Network
Wi-Fi: No
Ethernet LAN: Yes
Bluetooth: No
Ethernet interface type: Fast Ethernet
Number of users: 32 user(s)

Performance
Type: IP security camera
Connectivity technology: Wired
Infrared (IR) cut-off filter: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Remote viewing: Yes
Placement supported: Outdoor

Packaging content
Number of cameras: 1

Storage
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 - 1/100000 s
Angle of rotation: 360°
Pan range: 0 - 360°
Minimum illumination: 0.01 lx
Lens viewing angle, vertical: 55°
Camera pan control: Yes
Camera tilt control: Yes
Lens viewing angle, horizontal: 100°
Lens viewing angle, diagonal: 117°

Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS
Progressive scan: Yes

Video
Supported graphics resolutions: 320 x 240, 640 x 360, 2560 x 1440, 1280 x 720 (HD 720), 2304 x 1296, 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Maximum resolution: 2560 x 1440 pixels
Bit rate: 32 Kbps - 8 Mbps
Noise reduction: Yes
Video compression formats: H.264+, H.264, H.265, H.265+
Image quality adjustment: Saturation, Contrast, Sharpness, Brightness
Maximum frame rate: 30 fps
Privacy masking: Yes
Total megapixels: 4 MP
Back Light Compensation (BLC): Yes
Region of Interest (ROI) encoding: Yes
Video streaming: Yes
Noise reduction technology: 3D noise reduction

Night vision
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Fixed focal length: 2.8 mm
Aperture: F2.0

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 36 months
